Product Details:
|
Automatic Grade: | Automatic | Condition: | New |
---|---|---|---|
Packaging Type: | Film | Type: | Thin Blade Slitter Scorer |
Application: | Machinery & Hardware | Name: | Thin Blade Slitter Scorer Cutting Creasing Machine |
Function: | For Cardboard Slitting Scorer | Keywords: | Thin Blade Slitter Scorer Machine,paper Die Cutting Machine |
High Light: | corrugated slitter machine,slitting cutting machine |
Anna Tang
Director of YIKE GROUP
Email: Anna@yikegroup.net
Whatsapp: 008613363699514

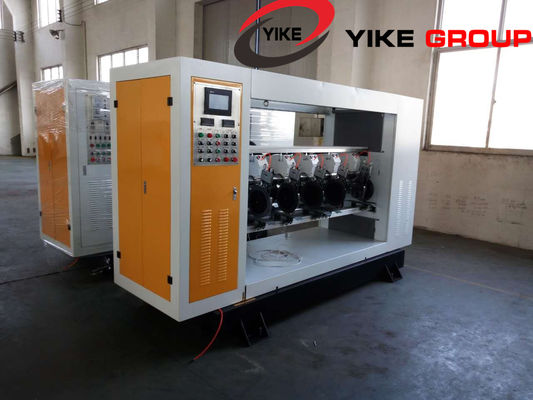

High Efficiency Thin Blade Slitter Scorer Machine / Carton Box Making Machine
Detailed Product Description
Type:: | Packaging Line | Condition:: | New |
Automatic Grade:: | Automatic | Driven Type:: | Electric |
Voltage:: | 380V | Dimension(L*W*H):: | 4x1.5x1m |
Weight:: | 2000kg | Name:: | Carton Box Making Machine |
Keywords:: | Online Electric Thin Blade Slitter Scorer Machine | Effective Width:: | 1800mm |
The Maximum Mechanical Speed:: | 100m/min | Mechanical Configuration: | 5knives 8lines |
The Minimum Width Of The Cutter:: | 135mm | The Maximum Width: | 1850mm |
Line Cutter Line Motor: | 0.4Kw |
Electric Thin Blade Slitter Scorer Machine
Product Parameter :
Effective width | 1800mm |
The maximum mechanical speed | 100m/ min |
Mechanical configuration | 5knives 8lines |
The minimum width of the cutter | 135mm |
The maximum width of the cutter | 1850mm |
Product Details :
1. Knife wheel configuration: four knives,six lines,five knives eight,six knives ten lines.
2. 1-Online corrugated cardboard production line 2-electric adjustment blades 3-width option 1400-2500mm.
3. Electric adjusted the space of slitter blade and auto pneumatic locking, easy to operate, improve the efficiency.
4. Adopt novel thin knife high speed cutting paper withsmooth incision.
5. Overall electric horizontal shift,effectively matching the cardboard running deviation.
