Product Details:
|
| Voltage: | 380V/50HZ, 220v/380v/440v | Condition: | New Machines |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support | Type: | Packaging Line,New Type,corrugated Paperboard Production Line |
| Automatic Grade: | Fully Automatic Hydraulic Mill Roll Stand | Packaging Type: | Plastic Film |
| Usage: | 3&5&7 Ply High Speed Corrugated Cardboard Production Line | Warranty: | 1 Year |
| Highlight: | 3ply corrugated hydraulic mill roll stand,1800mm hydraulic mill roll stand,220v hydraulic mill roll stand |
||

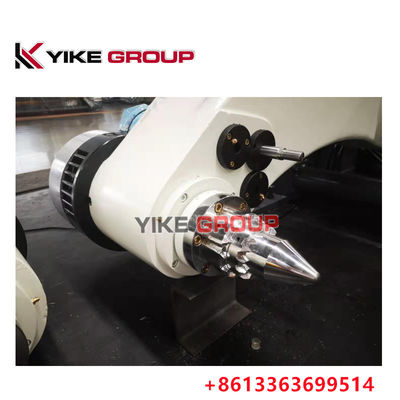

2200MM Paper Roll Hydraulic Mill Roll Stand For Corrugated Paperboard Production Line
ZJ-V5B hydraulic mill roll stand
※Technical parameters:
※Hydraulic system parameters:
※Mainly purchased parts, raw materials, and origin
| Name of main parts | Brands or place of origin | material |
| Main shaft | Day steel production | diameter242mm |
| Swing arm | Production by own | Resin sand gray ironHT200 |
| wallboard | Jigang production | Q235AWelding parts |
| bearing | HRB,ZWZ,LYC | |
| expand chuck | Zhejiang xusheng | 3,4inch shared |
| Main electrical appliance | France Schneider | |
| button | CHINT NP2series | |
| Air switch | French Schneider | |
| Pneumatic components | Zhejiang Sonor CSM | |
| Hydraulic station | Shandong zaozhuang | |
| Brake pump | zhejiang |
※Paper trolley, track
※Structural feature
★the whole track buried,The main frame of the 14th Channel steel with ¢ 20mm cold drawn welded round,length of track 6000mm
★each paper holder matched two sets of paper trolleys and paper on both sides at the same time. pull the roller paper to the right place
※Mainly purchased parts, raw materials, and origin
| Name of main parts | Brands or place of origin | material |
| track and paper car | Tanggang or jigang | NO14channel steel,Q235A,steel strip |
| bearing | HRB,ZWZ,LYC |
