YK-2200 Speed 150m/Min Single Facer Machine For BHS,FOSBER,TCY, Corrugated Cardboard Production

Certification
China CHINA YIKE GROUP CO.,LTD certification
China CHINA YIKE GROUP CO.,LTD certification
Customer Reviews
YIKE GROUP Is the Professional Manufactuer for the Carton Box Machinery in China, we are very happy to choose so professional partner. Hope we can expand more business with each other.

—— Bal-UK

I'm Online Chat Now

YK-2200 Speed 150m/Min Single Facer Machine For BHS,FOSBER,TCY, Corrugated Cardboard Production

YK-2200 Speed 150m/Min  Single Facer Machine For BHS,FOSBER,TCY, Corrugated Cardboard Production
YK-2200 Speed 150m/Min  Single Facer Machine For BHS,FOSBER,TCY, Corrugated Cardboard Production YK-2200 Speed 150m/Min  Single Facer Machine For BHS,FOSBER,TCY, Corrugated Cardboard Production YK-2200 Speed 150m/Min  Single Facer Machine For BHS,FOSBER,TCY, Corrugated Cardboard Production YK-2200 Speed 150m/Min  Single Facer Machine For BHS,FOSBER,TCY, Corrugated Cardboard Production YK-2200 Speed 150m/Min  Single Facer Machine For BHS,FOSBER,TCY, Corrugated Cardboard Production YK-2200 Speed 150m/Min  Single Facer Machine For BHS,FOSBER,TCY, Corrugated Cardboard Production

Large Image :  YK-2200 Speed 150m/Min Single Facer Machine For BHS,FOSBER,TCY, Corrugated Cardboard Production

Product Details:
Place of Origin: China
Brand Name: YIKE GROUP
Certification: ISO CE
Model Number: YK-2200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plastic Packaging
Delivery Time: 30 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200PCS/month

YK-2200 Speed 150m/Min Single Facer Machine For BHS,FOSBER,TCY, Corrugated Cardboard Production

Description
Condition: New Packaging Material: Plastic
Warranty: 1 Year Name: SF-320C Fingerless Type Single Facer Machine
Speed: 150m/min Usage: Making Carton
Function: Cardboard Making Production Line Color: Customized Color
Effective Width: 2200mm Single Weight: MAX 7000Kg

YK-2200 Speed 150m/min  single facer machine for BHS,FOSBER,TCY,

Corrugated Cardboard Production Line



SF-320E multi-cassette single facer

★using negative pressure type design, low heat loss,helps the core paper to press evenly and close to the surface of corrugated roller, make the corrugate molding better, pressure uniform, the top of corrugate can glue uniform and better, make the single corrugated paper have perfect laminating.
★quickly change rollers in 10 minutes, while change corrugated roller with the electric trolley loading,the entire group of
corrugating with motor drive,put into the machine,fixed to the machine base,only need a few buttons can complete the replacement quickly and easily.

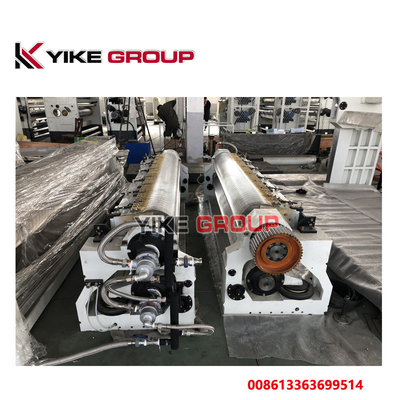

★corrugated roll adopt 48CRMO high quality alloy steel,dealing with heating, after grinding hard chrome plating surface treatment.
★corrugated roll and pressure roll adopt the airbag control system with high stability, at the same time with pneumatic control buffer effect.
★Glue volume control with electric adjustment,rubber septum electric device,the glue system can operate independently when the motor stops,prevent glue exhausted.
★the moveable type glue unit is convenient to clean and maintain.
★easy operation control system, touch screen operation interface,Drawing with color display operating status, function selection, fault indication, and parameter settings, etc. can exclude exhibit this machine fully functional, easy to operate, user-friendly.
★built-in pre-conditioner with proportional spraying device, adjustment the core paper temperature and moisture.
★main, vice corrugating and pressure roller bearings are used in high-temperature grease to ensure bearing life running smoothly.



YK-2200 Speed 150m/Min  Single Facer Machine For BHS,FOSBER,TCY, Corrugated Cardboard Production 0



Automatic Grade
Automatic
Key Machines
carton machine, packing machine, Fast Change Roller Type Single Facer
Packaging Material
Plastic film
Condition
New
Brand Name
YIKE GROUP
Place of Origin
Hebei, China
Voltage
220v/380v/415v/440v
Product name
Fast Change Roller Type Single Facer
Working wide
2200mm
Keyword
corrugated paperboard making machinery
Suitable for
Corrugated Cardboard Production line
design speed
150m/min
operation direction
left or right
steam pressure
0.8-1.3Mpa
range of temperature
160-200℃
Automatic Grade
Automatic
Name
Cassette Type Single Facer Corrugated Machine





YK-2200 Speed 150m/Min  Single Facer Machine For BHS,FOSBER,TCY, Corrugated Cardboard Production 1



YK-2200 Speed 150m/Min  Single Facer Machine For BHS,FOSBER,TCY, Corrugated Cardboard Production 2



YK-2200 Speed 150m/Min  Single Facer Machine For BHS,FOSBER,TCY, Corrugated Cardboard Production 3



FAQ
1. who are we?
CHINA YIKE GROUP, Which based in Hebei, China, start from 2002,sell to Mid East(24.00%),South America(21.00%),

Eastern Europe(15.00%),Africa(10.00%),Southeast Asia(10.00%),North America(5.00%),Western Europe(2.00%),Southern Europe(2.00%),Eastern
Asia(10.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Firstly pre-production sample before mass production;
Secondly Inspection before shipment;

3.what can you buy from us?
Corrugated Cardboard Production Line,Carton Box Making machine, Box Printing Forming Machine,

Auto folder gluer, sitching machine, die cutting machine, bundling machine..
4. why buy from us not from other suppliers?
Factory related carton machinery import & export company, based on more than 30 years experience in providing

complete and carton machinery solutions according to different customer situations and requriements. reliable quality

and good service on site.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Arabic,French,Russian,Italian
