Product Details:
|
| Name: | Fast Change Roller Type Single Facer | Speed: | 200m/min |
|---|---|---|---|
| Usage: | Making Carton | Function: | To Produce The Corrugated Paperboard |
| Color: | As Client's Requiremnets | Temperature Range: | 160—200℃ |
| Effective Width：: | 2200mm | Steam Pressure：: | 0.8—1.3Mpa |

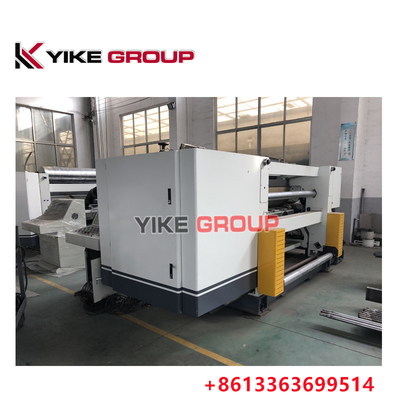

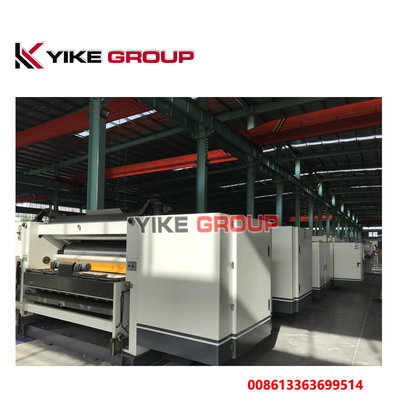

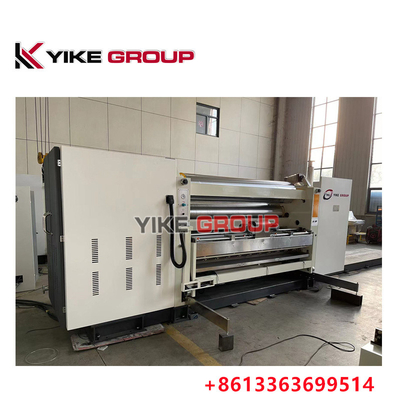

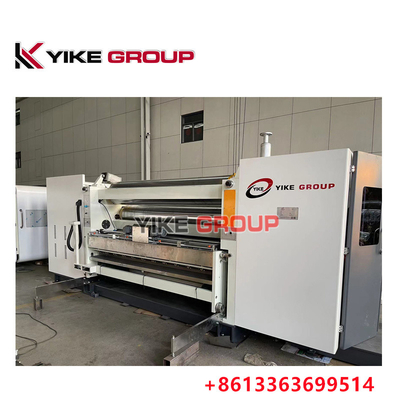

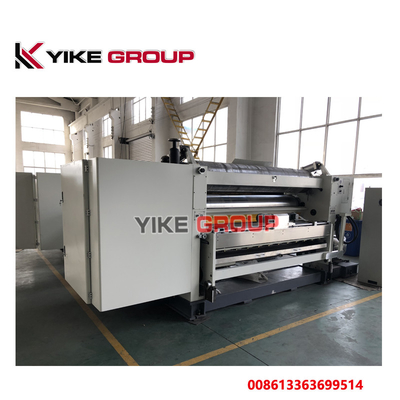

YK-2200/Speed 200 Fast Change Roller Type Single Facer forTCY,YIKE GROUP, CHAMPION Corrugated cardboard production line
※structural features:
★main flute roller:￠360mm(according flute differ),pressure roller￠415mm,preheat roller￠400mm.
★using negative pressure type design, low heat loss,helps the core paper to press evenly and close to the surface of corrugated roller, make the corrugate molding better, pressure uniform, the top of corrugate can glue uniform and better, make the single corrugated paper have perfect laminating.
★quickly change rollers in 10 minutes, while change corrugated roller with the electric trolley loading,the entire group of corrugated roller is put into the machine and fixed to the machine base,only need a button can complete the replacement of the flute roller ,quickly and easily.
★corrugated roll adopt 48CrMo high quality alloy steel,dealing with heating, after grinding hard chrome plating surface treatment.
★corrugated roll and pressure roll adopt the airbag control system with high stability, at the same time with pneumatic control buffer effect.
★Glue volume control with electric adjustment,rubber septum electric device,the glue system can operate independently when the motor stops,prevent glue exhausted.
★the movable type glue unit is convenient to clean and maintain.
★easy operation control system, touch screen operation interface,Drawing with color display operating status, function selection, fault indication, and parameter settings, etc. can exclude exhibit this machine fully functional, easy to operate, user-friendly.
★built-in pre-conditioner with proportional spraying device, adjust the core paper temperature and moisture.
★main, vice corrugating and pressure roller bearings are used in high-temperature grease to ensure bearing life running smoothly.
Technical parameters:
1,effective width:2200mm 2,operation direction:left or right(Determined in accordance with the customer's facility)
3,design speed:200m/min 4,temperature range:160—200℃
5,air source:0.4—0.9Mpa 6,steam pressure:0.8—1.3Mpa
7,corrugated flute:(UV type or UVV type)
Roller diameter parameters
1,diameter of up corrugated roller: ￠360mm 2,diameter of pressure roller:￠415m
3,diameter of glue roller:￠269mm 4,diameter doctor roller :￠153mm
5,diameter of preheater:￠400mm
Mainly purchased parts, raw materials and origin
| Name of main parts | Brands or place of origin | material |
| Wallboard and Pedestals | Production by own | HT200 |
| Rotary joints and metal hoses | Fujian quanzhou yujie | |
| Main frequency motor | Hebei hengshui | 30KW frequency motor |
| reducer | Taiwan CPG | |
| bearing | HRB,ZWZ,LYC or zhejiang | Tile roller and pressure roller are from America TIMKEN |
| Seat belt bearing | Zhejiang wuhuan | |
| High pressure air | Shanghai yingfa | |
| cylinder | Taiwan AirTac | |
| Solenoid valve | Taiwan AirTac | |
| traps | Beijing traps | Inverted bucket |
| Contactors and Relays | France Schneider | |
| Position Sensor | Korea Autonics | |
| Frenquency controller | Taiwan delta | |
| PLC | Taiwan delta | |
| Human machine interface | Taiwan weintek |
