Product Details:
|
| Name: | Hydraulic Mill Roll Stand | Voltage: | 380V/50HZ, 220v/380v/440v |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support | Automatic Grade: | Fully Automatic Hydraulic Mill Roll Stand |
| Usage: | 3&5&7 Ply Corrugated Cardboard Production Line | Condition: | New Mill Roll Stand |
| Type: | 3&5&7 Ply High Speed Corrugated Cardboard Production Line | Packaging Type: | Film |
| Warranty: | 1 Year | ||
| Highlight: | Corrugated Cardboard Machinery,Corrugated Paperboard Production Line |
||

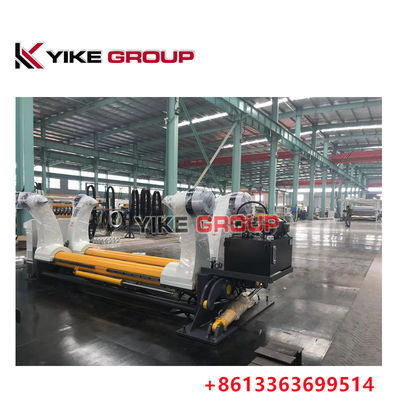

The ZJ type shaftless paper holder is one of the main equipment for producing corrugated cardboard on corrugated cardboard production lines
(or single-sided corrugated cardboard production lines), used to support the roll paper (face paper and core paper) used for producing corrugated cardboard.
This machine adopts electric clamping method to adjust the width specifications of the supported roll paper web, and uses different tension control configurations
to control the tension of the corrugated raw paper conveying, ensuring that the corrugated raw paper smoothly enters the next process and achieves
the goal of efficient production of corrugated cardboard.
This machine can only be used as a raw paper support equipment on the corrugated cardboard production line. If the machine is used for other purposes
and causes losses, the consequences shall be borne by the user
Technical parameters:
1,main shaft diameter of paper holder:￠240mm
2,gas source work pressure(Mpa):0.4---0.8Mpa
structural feature:
1.adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.
2.brake adjustable adopts multipoint braking system.
3.every stand matched two sets paper car , and they can paper on the both sides at the same time.
