Product Details:
|
| Item: | Corrugated Carton Box Machine | Design Speed: | 200m/min |
|---|---|---|---|
| Working Speed: | 150m/min | Size Available: | 1400-2200mm |
| Usage: | 3/5/7 Ply Paperboard Line | Application: | Corrugated Cardboard Line |
| Roller: | 360mm | Other Name: | 360E Cassette Single Facer |
| High Light: | steam heating carton box making machine,steam heating cardboard box making machine,1400mm carton box making machine |
||

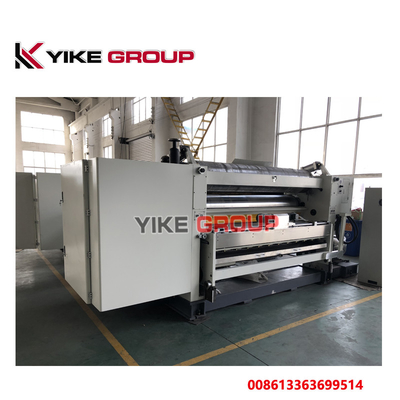

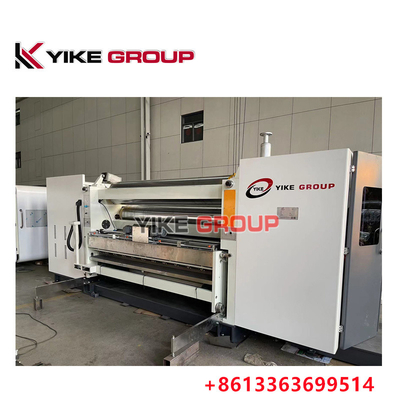

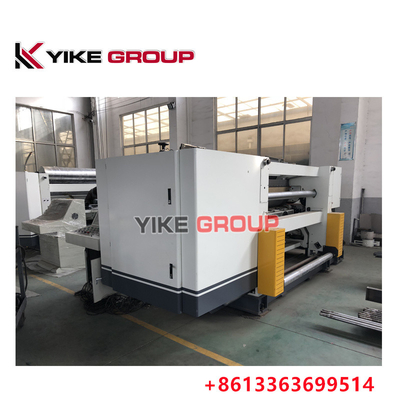

Quick Roll Change 360E Cassette Single Facer For Corrugated Carton Box Machine
I YX-360E Cassette Single Facer
Single Facer is the main machine for producing the corrugated paperboard. Vacuum suction model single facer has very good production precision.The choose of the machine is directly effecting the quality of the corrugated paperboard.
|
Usage |
3/5/7 Ply Corrugated Cardboard Making Machine Corrugated Single Facer, Corrugated Carton Machine |
| Design Speed of YX360E | 200m/min |
| Effective Width | 1400mm-2200mm |
| Corrugated Roller Diameter | 360mm |

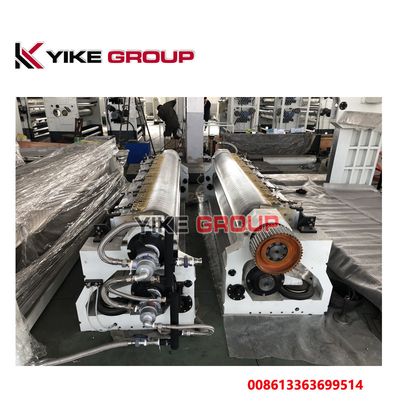

II Specification For Roller
|
Material
|
48CrMo high quality alloy steel, rigidity HRC55-58
|
|
Processing Way
|
The surface of upper-lower roller is plating chrome, annealing, hardening and tempering, surface grinded
|
|
Fulte Type
|
(U/V) ACBEF
|
|
Material origin
|
Henan Jiyuan Iron & Steel
|
|
Heating way
|
Steam heating |
|
Rollers Changing
|
10-15 minutes changing,use trolley to feed inside of the single facer, fix on the stand of the machine, only buttons and switches to change the corrugated rollers.
|
III Main Features
1) Adopt hood suction structure,matched high pressure powerful fan. Gas supply and electrical control cabinet to focus on the same operation, the operating side full cover closed.
2) High quality resin sand casting,wall thickness 200mm.Adopt independent gear box, Universal joint transmission structure.
3) Install the lifting trolley on the conveyor bridge,Need to use the car will tile roll assembly and pressure roller, such as convenient and quick.
4) Glue roller unit structure with the overall relocation,Maintenance can sway the machine at the overall maintenance,improve the working efficiency.
5) The humidity control apparatus equipped with a spray, so flute type to maintain good stability of deformation, avoid dry.
6) Automatic circulation system for glue, two-cylinder pneumatic gluing device, with good cushioning effect.
7) Glue department using integrated slide structure,Glue roller surface after grinding engraved with 25 lines and pit-style textured hard chrome plating.
8) Corrugated roller adopt tungsten carbide dealing,diameter of the main corrugated roller320mm,Quenched-rough car-bore fine boring-shaft head shrunk-on-welding - tempering to stress-fine cars-coarse grinding-IF quenching-CNC grinding machine grinding-tungsten carbide dealing,hardness of surface is HRC58degrees.
9) Active force variable frequency motor drive, energy efficient, low failure rate.
10) Glue wide electric adjust to changes in the width of the paper used.
11) Amount of glue size with electric adjustment, touch screen display and operation of the encoder transmission coating gap, high accuracy.
12) Power and operating parts with a safety net to ensure the safety of personnel in the operation of machinery.
V Flute Type
| Flute Designation | Flutes/ Linear Foot | Flute Height | Qualities | Common Uses |
| A | 36 | 1/4" | Excellent compression and cushioning; good stacking strength | Packaging fragile items; used for its structural strength |
| B | 49 | 1/8" | Excellent crush resistance and printing surface; good puncture resistance | Inner packaging, like pads and partitions |
| C | 41 | 11/64" | Good printing surface, compression, and crush resistance | Most common flute used for shipping boxes; used for its structural strength; used for glass, furniture, food, etc. |
| E | 90 | 1/16" | Excellent crush resistance; exceptional printing surface; thin construciton helps to reduce storage space | Consumer goods packaging, like boxes for cosmetics, glass, and ceramics; used for displays, ballot boxes, and pizza boxes |
| F | 128 | 1/32" | Outstanding printing surface; excellent crush resistance; thin construction allows for stiffer boxes with less fiber | Consumer goods packaging, like boxes for cosmetics, jewelry, and shoes; used for software packaging and fastfood clamshells |

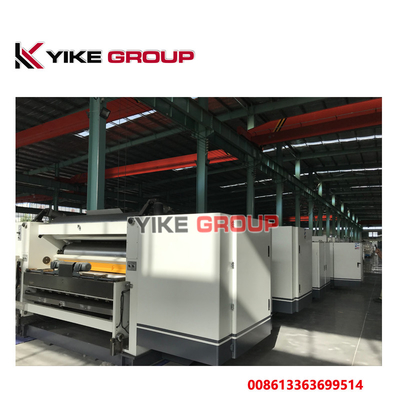

VI. 100% Real Photos
