YK-1224 150 Pcs/Min 4 Color Flexo Printer Slotter Machine Carton Box Making Machine

YK-1224  150 Pcs/Min 4 Color Flexo Printer Slotter Machine Carton Box Making Machine

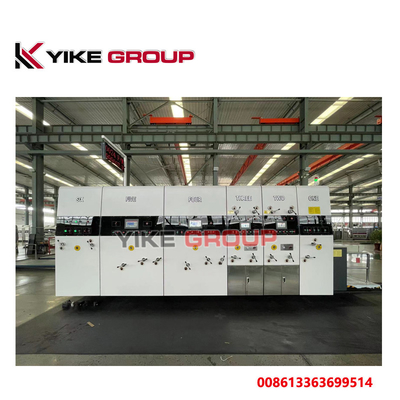

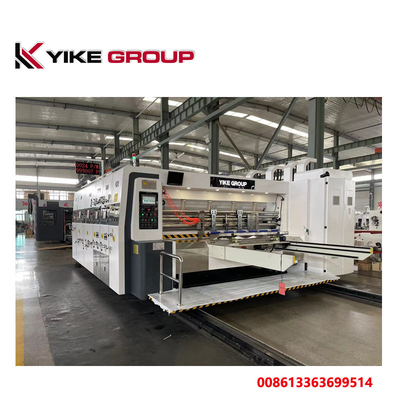

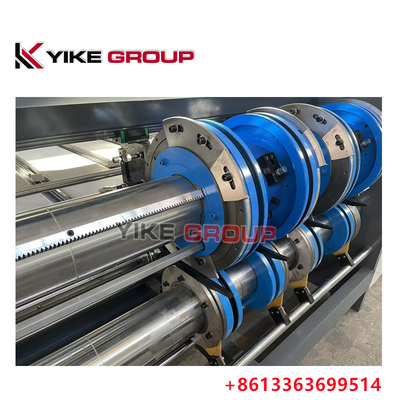

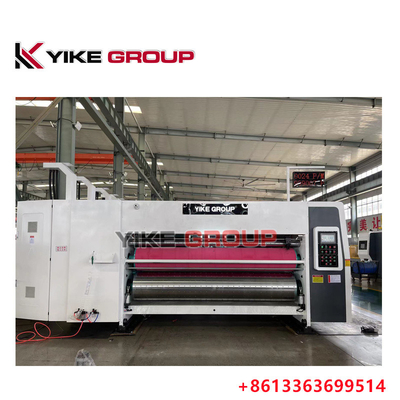

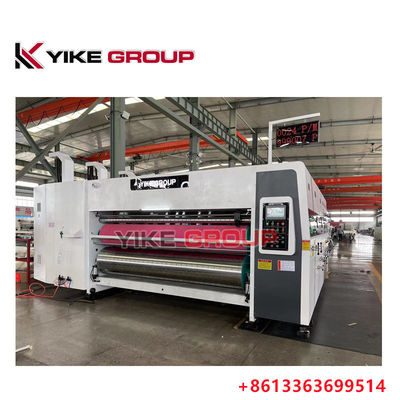

►Printing Roller

1. With printing plate,outer diameter φ420mm
2. High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running
3. Roller horizontal direction and circumferential direction with datum line, convenient for align plate
4. Fixed coil axis, suitable for standard hanging slats, realize rapid change plate
5. Electric 360° adjust printing roller, automatic digital display adjustment,remember store digital.


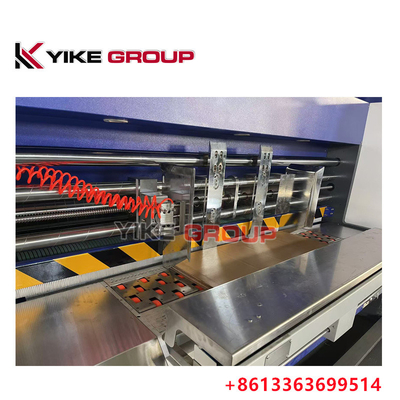

Slotting Unit

► Pressure Roller

1. The pressure roller is ground twice and the surface is plated with hard chrome to make the pressure roller move easily and smoothly.
2. High quality imported polyurethane is used on the press line to effectively prevent damage to the cardboard.
3. Manual adjustment of the pressure wheel clearance scale, adjustment range 0-12mm.

► Slotted Knife Seat Traverse Adjustment Mechanism

1. The diameter of the upper and lower shafts of the slotted knife is φ155mm. After two grinding processes, the surface is plated with hard chrome and the movement is stable.
2. Groove width 7mm, made by professional manufacturers.
3. Alloy tool steel After heat treatment, grinding tooth slotted knife, hardness and toughness are superb.
4. Alloy steel material after heat treatment, grinding trimming knife, knife sharp, high precision.
5. The position of the rolling wheel and slotted knife holder is traversed and electric synchronous control is adopted.
6. The height of slot box adopts electric adjustment, which is convenient and quick.
7. Using a unique elastic de-icing device, the use of low cost, long life.

► Slotted Phase Adjustment Mechanism.

1. The 360 degree positive and negative adjustment of planetary gears makes the adjustment more convenient, faster and more accurate.
2. Before and after grooving, the knife phase adopts double control of touch screen and electric button, and electric digital 360 degree adjustment (stop, dynamic can be adjusted).

► Computer Slotter operation control

1. The slotted part is equipped with a PLC and a 7-inch color touch screen to realize the human-machine dialogue. Various order sizes and storage orders can be set through the PLC. The next time the set order is called directly, the slot cutter is automatically reset and the operation is performed. More simple, convenient, and faster.
2. The automatic zeroing device ensures that the unit has a uniform adjustment basis and reduces the waste of cardboard.
3. Safety limit device ensures that the machine will not be operated by mistake.

Die Cutting Unit

► Operation

1. Automatic detachment of the stencil roll and the UNIFLEX roller through the cylinder eccentric device in the non-die cutting condition can reduce the no-load load of the machine and extend the life of the Glue and die.
2. The phase adjustment of the planetary structure, 360-degree operation, stop, both positive and negative operation, phase accuracy can reach 0.10mm to facilitate the version, the version of the operation.
3. 7-inch color touch screen and PLC phase control make the operation more convenient, intuitive and accurate.
4. spline transmission, to overcome the mechanical wear of gear transmission, excellent force roller to move 40 mm left and right, and equipped with radial differential device, can make the average wear of the rubber roller greatly improve the life of the rubber roller.
5. The machine is equipped with an excellent glue correction device, which can be used after repeated corrections to the rubber roller.
6. The gap of die-cutting roller is manually adjusted, and the adjustment range is 1-10mm. The cross-slider is used to connect, adopting the double-level aluminum alloy die-casting and decelerating device to adjust and adjust the precision and labor saving. After the adjustment, it is automatically locked to ensure the printing quality. The gears use cross slides for keyless connection, ensuring the correct meshing position of the transmission gear when adjusting the clearance.
