Product Details:
|
Type: | Automactic Carton Box Printing Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
---|---|---|---|
Automatic Grade: | Full-Atuomatic | Application: | Carton Box Making Machine |
Voltage: | 380V/3 Phaze /50Hz,Customized | Warranty: | 1 Year |
Speed: | 150PCS/min Pr Customzied | Name: | Flexo Ink Corrugated Carton Flexo Printing Machine,Flexo Printer Slotter Die-Cutter Stacker Carton Box Making Machine,High Speed Flexo Printing Slotter Rotary Die Cutter Machine |
Color: | Customer's Request | Certification: | CE ISO SGS |
Condition: | New | Usage: | For Carton Print Slotting And Die Cutting |
Function: | Printing Slotting Die Cutting Machinery | ||
High Light: | flexo printer slotter die cutter stacker,150pcs/min flexo printer slotter die cutter,150pcs/min printer slotter die cutter machine |

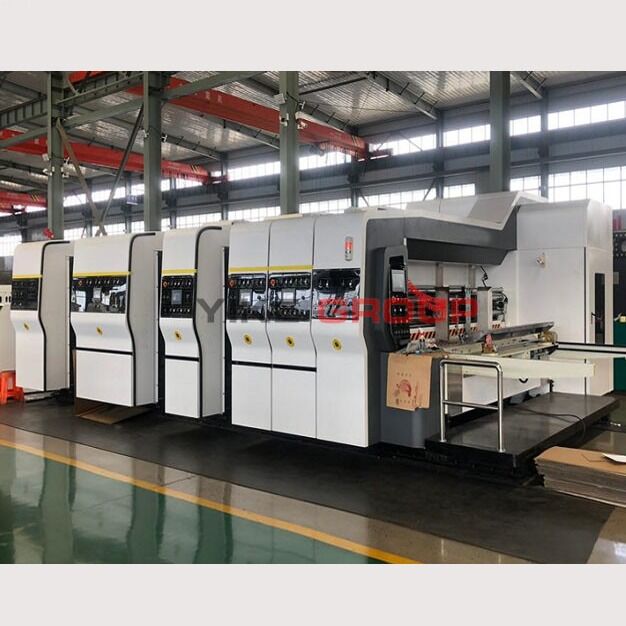

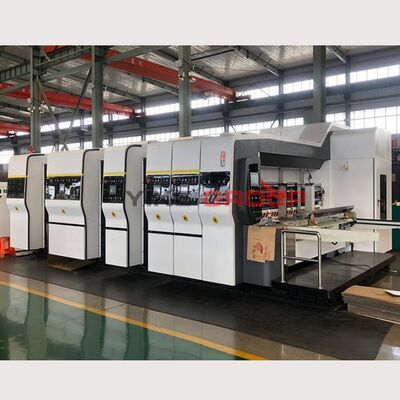

FULLY-AUTOMATIC VACUUM TRANSPORT FLEXO PRINTER SLOTTER DIE CUTTER STACKER MACHINE
High Definition Vacuum Transfer Flexo Printer Slotter Die Cutter Stacker Machine
China YIKE Group
Web: www.yikegroup.net
Email: info@yikegroup.net
Whatsapp: +8617743859771
※Price and payment
YIKE 900X2200 FULLY AUTOMATIC VACUUM FLEXO PRINTER SLOTTER DIE CUTTER STACKER MACHINE |
|
AUTO LEAD EDGE FEEDER | |
AUTO TOP PRINTER | 5 UNITS |
VACUUM TRANSPORT | 5 UNITS |
CERAMIC ROLLER | 5 UNITS |
DOCTOR BLADE | 5 UNITS |
AUTO SLOTTER | 1 UNIT |
AUTO DIE CUTTER | 1 UNIT |
VIBRATION AND STACKER | 1 UNIT |
PRICE AND PAYMENT YK 900X2200, 5 COLOR FLEXO SLOTTER DIE-CUTTER STACKER, VACCUM TRANSFER |
|
FOB TIANJIN PORT | |
PRODUCTION TIME | 60-80DAYS AFTER DEPOSIT |
PAYMENT TERMS | 30%TT,70%TT BEFORE SHIPPING |
PRICE VALIDITY | OCT. 30, 2021. |
※Main Technical Parameters
YIKE 9022 FULLY AUTOMATIC VACUUM FLEXO SLOTTER DIECUTTER STACKER MACHINE | |
Wall board thickness | 60mm |
Gear thickness | 50mm |
Max Machine Speed (pcs/H) | 15,000 |
Max. Feeding Size (mm) | 900×2200 |
Max printing/working size (mm) | 900×2000 |
Min. Feeding Size (mm) | 260x650 |
Wall inner distance | 3200mm |
Standard Plate Thickness (mm) | 7.2mm |
Suit corrugated thickness | 2-11mm |
Max slotter depth (mm) | 300 |
Print precision (mm) | ±0.1 |
Slot precision (mm) | ±1.0 |
Die cut precision (mm) | ±1.0 |
Lead-edge Feeding System
ü Can measure the corrugated cardboard thickness, can adjustment feeding gap automatic
ü 7.5KW high-pressure centrifugal fans, according to the cardboard
warping degree of the frequency control pressure, to ensure warp
cardboard or thin cardboard high-speed accurate transmission.
ü Left and right side baffle position electrically adjustable,
screw-driven. and can remember by computer.
ü Front baffle adjust the position of the upper and lower intervals
synchronization by manual.
ü Skip-feeding devices, could select skip-feeding according to needs. To ensure that large-scale cardboard can also be processed.
ü Install 7” touch screen, could automatically display the
production quantity, production speed, and set the production quantity and every operation.
ü Slotting part is equipped with an interlock switch, to achieve the
emergency stop, stop feeding or feeding.
Machine Separation & Combination
ü Button switches electrically control the separation and combination
of machine, with automatic alarm device, continuously alarm while moving, to ensure the safety of operators.
ü Air pressure interlocks, lock securely, conveniently, and accurately.
ü Machine clutch drive shaft is equipped with an overload protection device.
ü Active self-locking function: if the unit is not completely locking state,
the host cannot start, to ensure the safety of machine and operator;
while hosting normal working conditions, the unit clutch function is automatically locked, to avoid machine misuse and personal injury.
Dust-removal System
ü Adopt brush cleaning device, equipped with strong Negative pressure suction fan, clearing the dust, paper scrap or other waste, to improve printing quality.
Feeding Roller: Feeding Roller
ü Upper feeding roll adopts outer diameter φ156mm rubber roller,
elastic buffer wear rubber (inside soft, outside hard), dynamic balance correction, to ensure smooth and accurate feeding.
ü Lower feeding roller adopts embossed rollers, hard chrome-plated, wear and smooth.
ü According to cardboard thickness, adopt worm gear box gap tuning, with locking device. Adjustment range 0-12mm
※Printer Unit
Printing Roller
ü With printing plate
ü High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running
ü Roller horizontal direction and circumferential direction with datum line, convenient for align plate
ü Fixed coil axis, suitable for standard hanging slats, realize rapid change plate
ü Electric 360° adjust printing roller, automatic digital display adjustment, remember store digital.
ü Installed with foot switch to control plate roller reversing, convenient change plate
ü Auto-zero function, order memory.
ü Printing roller plate-change and fix-plate function.
ü Printing roll axial is adjusted left and right by manual, maximum movement left and right 10mm,auto-zero instruction.
※Slotting Unit
※Die-cutting Unit
