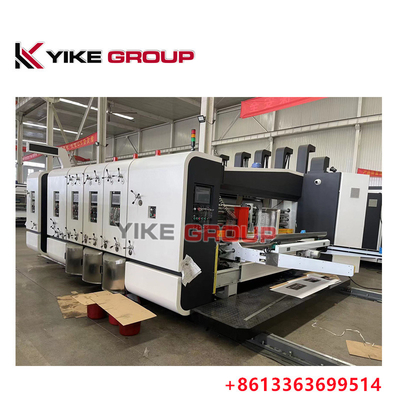

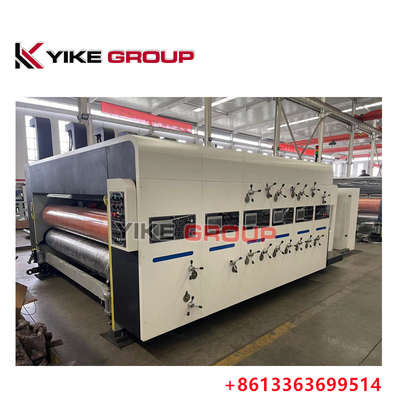

YK-1424 High Speed Flexo Printer Slotter Die Cutter Machine Carton Box Making

YK-1424 High Speed Flexo Printer Slotter Die Cutter Machine Carton Box Making
YK-1424 High Speed Flexo Printer Slotter Die Cutter Machine Carton Box Making YK-1424 High Speed Flexo Printer Slotter Die Cutter Machine Carton Box Making YK-1424 High Speed Flexo Printer Slotter Die Cutter Machine Carton Box Making YK-1424 High Speed Flexo Printer Slotter Die Cutter Machine Carton Box Making YK-1424 High Speed Flexo Printer Slotter Die Cutter Machine Carton Box Making

Large Image :  YK-1424 High Speed Flexo Printer Slotter Die Cutter Machine Carton Box Making

Product Details:
Place of Origin: China
Brand Name: YIKE GROUP
Certification: ISO CE
Model Number: YK-1424
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Plastic Film
Delivery Time: 6 months
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000set/year

YK-1424 High Speed Flexo Printer Slotter Die Cutter Machine Carton Box Making

Description
Name: Flexo Printer Slotter Die Cutter Machine Application: Carton Box Making Machine
Speed: 150 PCS/min Pr Customzied Color: Customer's Request
Certification: CE,ISO Condition: New
Usage: For Carton Print Slotting And Die Cutting Function: Printing Slotting Die Cutting Machinery

YK-1424 High Speed Flexo Printer Slotter Die Cutter Machine Carton Box Making





General Features:



Quality: Due to high requirements for mechanical quality, raw materials selection, processing, assembly of industrial control over the industry standard, using the new design, quality management system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment.



Efficiency: Patent type feeding width automatic adjustment device and printing locking device with screw. With 4.0 engineering design of industrialization, both hardware and software are charged with the author’s high efficiency tools.



Service: Based on the industry’s first use of PDM design file management system, complete technical support files, regardless of the long time can still be credible commitment to customers, continuous and efficient after-service for the customer support. 24 hours service with 12 engineers .







YK-1424 High Speed Flexo Printer Slotter Die Cutter Machine Carton Box Making 0



Feeder Unit



Lead-edge Feeding System

1. Lead-edge suction feeding system, easy operation, high accuracy,(adopts lead feeder system).

2. 7.5KW high pressure centrifugal fans, according to the cardboard

3.warping degree of frequency control pressure, to ensure warp

4.cardboard or thin cardboard high-speed accurate transmission.

5. Left and right side baffle position electrically adjustable,

3.screw-driven.and can remember by computer.

7.Front baffle adjust the position of the upper and lower intervals

8.synchronization by manual.

9. Skip-feeding devices, could select skip-feeding according to needs. To ensure that large-scale cardboard can also be processed.

10 Install 7” touch screen, could automatically display the

11.production quantity, production speed, and set the production quantity and every operating.

12 Slotting part is equipped with the interlock switch, to achieve the

12emergency stop, stop feeding or feeding.



►Machine Separation & Combination

1.Button switches electrically control the separation and combination

of machine, with automatic alarm device, continuously alarm while moving, to ensure safety of operators.

2.Air pressure interlocks, lock securely, conveniently and accurately.

3. Machine clutch drive shaft is equipped with overload protection device.

4.Active self-locking function: if unit is not completely locking state,

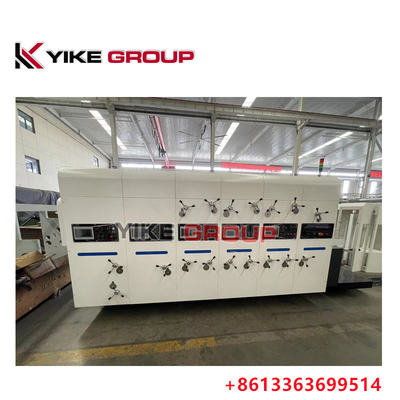

Printer Unit



1.Fixed coil axis, suitable for standard hanging slats, realize rapid change plate

2.Electric 360° adjust printing roller, automatic digital display adjustment,remember store digital.

3. Installed with foot switch to control plate roller reversing, convenient change plate

4. Auto-zero function,order memory.

5.Printing roller plate-change and fix-plate function.

6.Printing roll axial is adjusted left and right by manual,maximum movement left and right 10mm,auto-zero instruction.



Pressing Roller



1.Adopt high quality seamless delicately processing, dynamic balance adjustment, stable operation

2. Surface grinded, hard chromium-plated

3.Gear adopt backlash adjustment mechanism, adjustment none-affect gear enunciation, guarantee transmission accuracy



Rubber Roller



1.Rubber roller adopts Guangdong Jingyang.

2. Overrunning clutch and automatic idling device, to prevent the ink dried

3.Rubber roller drum type middle part higher, to ensure ink quality

4. Rapid spaced spinner self-locking device, ensures uniform ink

5. Ink distributing roller independent drive mechanism, ensure ink quality





YK-1424 High Speed Flexo Printer Slotter Die Cutter Machine Carton Box Making 1

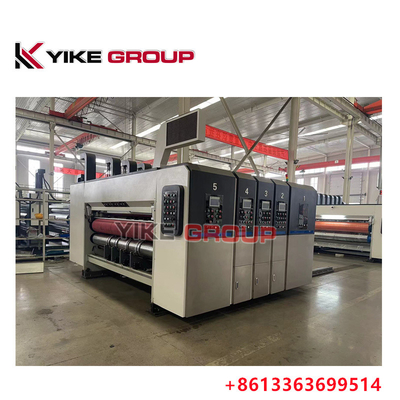

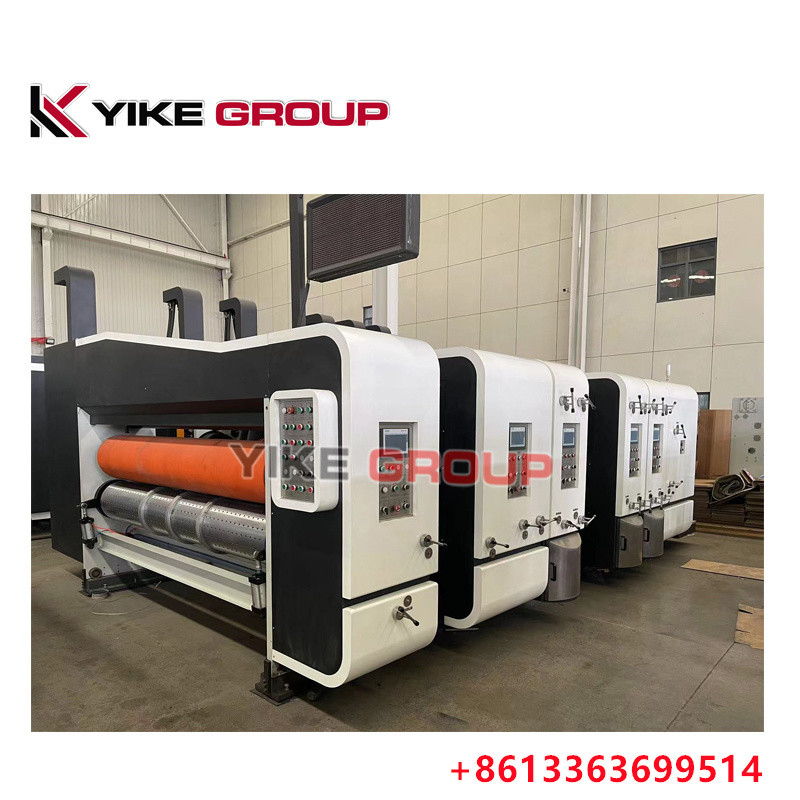

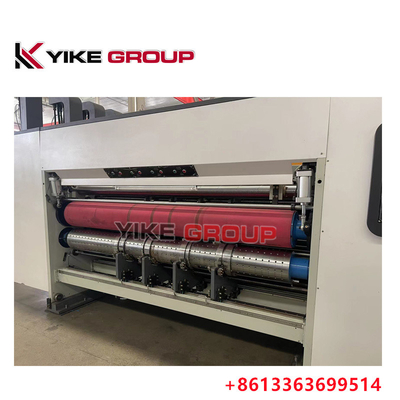

Die-cutting Unit



1.Adjust the transfer roller use computer and electric digital control,

2.The rubber roller compensated by motor-driven,control the speed of thr rubber roller, range ±3mm

3.Rubber roller hsiuping cutting structure, keep rubber surface roughness

Stripping the belt longitudinal output, to easy clean waste paper



Main Technical Parameters





Wall board thickness



50 mm



Max Machine Speed (pcs/min)



150



Economic Working Speed (pcs/min)



120



Max. Feeding Size (mm)



1400x2400



Max. Printing Size (mm)



1400X2200



Skip-feeding Size (mm)



1600×2200



Standard Plate Thickness (mm)



3.9



Print precision (mm)



±0.3



Die cut precision (mm)



±1.0



Suitable Cardboard Thickness (mm)



2 - 11








YK-1424 High Speed Flexo Printer Slotter Die Cutter Machine Carton Box Making 2







YK-1424 High Speed Flexo Printer Slotter Die Cutter Machine Carton Box Making 3







YK-1424 High Speed Flexo Printer Slotter Die Cutter Machine Carton Box Making 4

YK-1424 High Speed Flexo Printer Slotter Die Cutter Machine Carton Box Making 5
