YK-1800 SF-320E multi-cassette single facer for corrugated production line from YIKE GROUP

YK-1800 SF-320E multi-cassette single facer for corrugated production line from YIKE GROUP
YK-1800 SF-320E multi-cassette single facer for corrugated production line from YIKE GROUP YK-1800 SF-320E multi-cassette single facer for corrugated production line from YIKE GROUP YK-1800 SF-320E multi-cassette single facer for corrugated production line from YIKE GROUP YK-1800 SF-320E multi-cassette single facer for corrugated production line from YIKE GROUP YK-1800 SF-320E multi-cassette single facer for corrugated production line from YIKE GROUP YK-1800 SF-320E multi-cassette single facer for corrugated production line from YIKE GROUP

Large Image :  YK-1800 SF-320E multi-cassette single facer for corrugated production line from YIKE GROUP

Product Details:
Place of Origin: China
Brand Name: YIKE GROUP
Certification: ISO CE
Model Number: YK-1800
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plastic Packaging
Delivery Time: 35 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 200set/month

YK-1800 SF-320E multi-cassette single facer for corrugated production line from YIKE GROUP

Description
Name: SF-320E Multi-cassette Single Facer Warranty: 1 Year
Speed: 150m/min Usage: Making Corrugated Cardboard
Function: To Produce The Corrugated Paperboard Color: Or According To Your Request
Temperature Range: 160—200℃ Steam Pressure: 0.8—1.3Mpa

SF-320E multi-cassette single facer for corrugated production line from YIKE GROUP



※structural features:



★main flute roller:¢320mm(according flute differ),pressure roller¢370mm,preheat roller¢400mm.

★using negative pressure type design, low heat loss,helps the core paper to press evenly and close to the surface of corrugated roller, make the corrugate molding better, pressure uniform, the top of corrugate can glue uniform and better, make the single corrugated paper have perfect laminating.

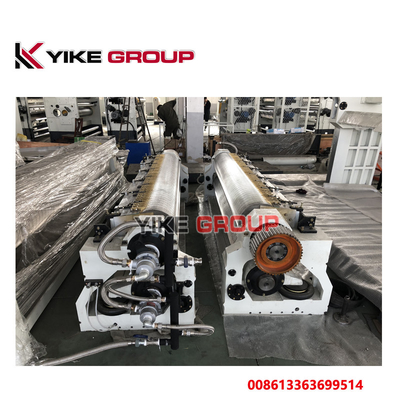

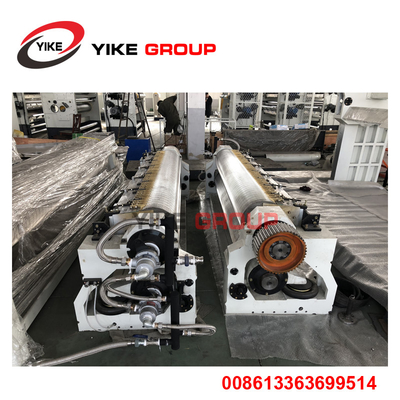

★quickly change rollers in 10 minutes, while change corrugated roller with the electric trolley loading,the entire group of corrugating with motor drive,put into the machine,fixed to the machine base,only need a few buttons can complete the replacement quickly and easily.

★corrugated roll adopt 48CRMO high quality alloy steel,dealing with heating, after grinding hard chrome plating surface treatment.

★corrugated roll and pressure roll adopt the airbag control system with high stability, at the same time with pneumatic control buffer effect.

★Glue volume control with electric adjustment,rubber septum electric device,the glue system can operate independently when the motor stops,prevent glue exhausted.

★the moveable type glue unit is convenient to clean and maintain.

★easy operation control system, touch screen operation interface,Drawing with color display operating status, function selection, fault indication, and parameter settings, etc. can exclude exhibit this machine fully functional, easy to operate, user-friendly.

★built-in pre-conditioner with proportional spraying device, adjustment the core paper temperature and moisture.

★main, vice corrugating and pressure roller bearings are used in high-temperature grease to ensure bearing life running smoothly.



YK-1800 SF-320E multi-cassette single facer for corrugated production line from YIKE GROUP 0





YK-1800 SF-320E multi-cassette single facer for corrugated production line from YIKE GROUP 1





※technical parameters:

1,effective width:1400mm 2,operation direction:left or right(Determined in accordance with the customer's facility)

3,design speed:150m/min 4,temperature range:160—200℃

5,air source:0.4—0.9Mpa 6,steam pressure:0.8—1.3Mpa

7,corrugated flute:(UV type or UVV type)

※roller diameter parameters:

1,diameter of up corrugated roller: ¢320mm 2,diameter of pressure roller:¢269m

3,diameter of glue roller:¢268mm 4,diameter doctor roller :¢153mm

5,diameter of preheater:¢400mm

※powered motor parameters:

1.main frequency drive motor:22KW rated voltage:380V 50Hz Continuous (S1) working standard

2,suction motor: 11KW rated voltage: 380V 50Hz Continuous (S1) working standard

3,glue reducer: 100W rated voltage: 380V 50Hz short(S2) working standard

4,glue gap motor: 400W rated voltage: 380V 50Hz short(S2) working standard

5,glue pump motor: 2.2KW rated voltage: 380V 50Hz Continuous (S1) working standard

6,Coating Motor: 3.7KW rated voltage: 380V 50Hz Continuous (S1) working standard











YK-1800 SF-320E multi-cassette single facer for corrugated production line from YIKE GROUP 2





Mainly purchased parts, raw materials and origin:

Name of main parts Brands or place of origin material
Wallboard and Pedestals Production by own HT200
Rotary joints and metal hoses Fujian quanzhou yujie
Main frequency motor Hebei hengshui 22KW frequency motor
reducer Taiwan CPG
bearing HRB,ZWZ,LYC or zhejiang Tile roller and pressure roller are from America TIMKEN
Seat belt bearing Zhejiang wuhuan
High pressure air Shanghai yingfa
cylinder AirTac
Solenoid valve AirTac
traps Beijing traps Inverted bucket
Contactors and Relays France Schneide
Position Sensor OMRON
Frenquency controller Taiwan delta
PLC Taiwan delta
Human machine interface Taiwan weintek



YK-1800 SF-320E multi-cassette single facer for corrugated production line from YIKE GROUP 3



YK-1800 SF-320E multi-cassette single facer for corrugated production line from YIKE GROUP 4



FAQ
1. who are we?
CHINA YIKE GROUP, Which based in Hebei, China, start from 2002,sell to Mid East(24.00%),South America(21.00%),Eastern
Europe(15.00%),Africa(10.00%),Southeast Asia(10.00%),North America(5.00%),Western Europe(2.00%),Southern Europe(2.00%),Eastern
Asia(10.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Firstly pre-production sample before mass production;
Secondly Inspection before shipment;

3.what can you buy from us?
Corrugated Cardboard Production Line,Carton Box Making machine, Box Printing Forming Machine, Auto folder gluer, sitching machine, die cutting machine, bundling machine..
4. why buy from us not from other suppliers?
Factory related carton machinery import & export company, based on more than 30 years experience in providing complete and carton machinery solutions according to different customer situations and requriements. reliable quality and good service on site.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Arabic,French,Russian,Italian
