Product Details:
Place of Origin: China
Brand Name: YIKE GROUP
Certification: ISO,CE
Model Number: YX-180
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set for Carton Line
Price: Negotiation
Packaging Details: Reel Stand Packages by Plastic Film
Delivery Time: 3 Months For Hydraulic Shaftless Mill Roll Stand
Payment Terms: L/C, T/T
Supply Ability: Hydraulic Shaftless Mill Roll Stand 50 Sets Per Month

Hydraulic Shaftless Mill Roll Stand / Corrugated Carton Box Machine CE Approved

Description
Item: Corrugated Carton Box Machine Max Weight: V5B 2.5T, V6B 3.5T
Size Available: 1400-2800mm Brake: Pneumatic Brake
Usage: Kraft Paper Stand Application: Corrugated Carton Line
Spindle: 242mm Warranty: One Year
High Light:

corrugated paperboard production line

,

single facer corrugated machine



Hydraulic Shaftless Mill Roll Stand For Corrugated Carton Box Machine



I Structural Feature:

  • Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.
  • Brake adjustable adopts multipoint braking system.
  • Every stand matched two sets paper car , and they can paper on the both sides at the same time.



II Technical Parameters:

  • The range of clamping paper:MAX1800mm MIN1000mm
  • Clamping diameters:MAX¢1500mm MIN¢350mm
  • Main shaft diameter of paper holder:¢240mm
  • Gas source work pressure(Mpa):0.4---0.8Mpa
  • Equipment size:Lmx4.3*Wmx1.8*Hmx1.6
  • Single weight:MAX4000Kg

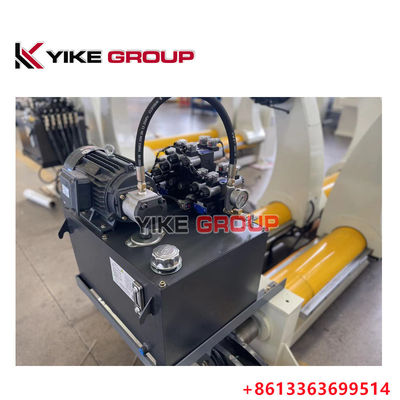

III Hydraulic System Parameters:

  • Work pressure(Mpa):16---18Mpa
  • Lifting hydraulic cylinder:¢100×440mm
  • Clamping hydraulic cylinder:¢63×1300m
  • Hydraulic station motor power:3KW --380V -- 50Hz
  • Solenoid valve voltage:220V 50 Hz







I​V ​Mainly Purchased Parts, Raw Materials and Origin:

Name of Main Parts Brands or Place of Origin Material
Main Shaft Day steel production Diameter 242mm
Swing Arm Production by own Resin sand gray iron HT200
Wallboard Jigang prduction Q235A Welding parts
Bearing HRB,ZWZ,LYC
Expand Chuck Zhejiang xusheng 3,4 inch shared
Main Electrical Appliance France Schneider
Button CHINT NP2series
Air Switch French Schneider
Pneumatic Components Zhejiang Sonor CSM
Hydraulic Station Shandong Zaozhuang
Brake Pump Zhejiang

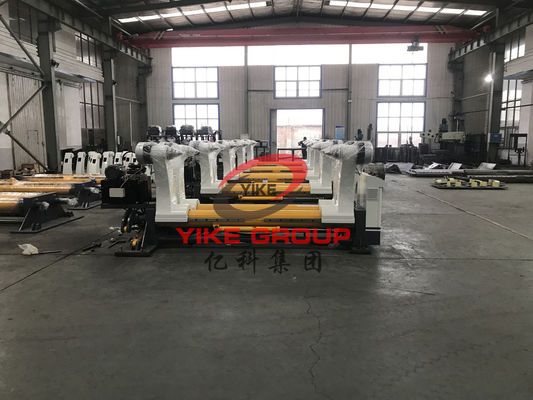

V. 100% Real Photos

Hydraulic Shaftless Mill Roll Stand / Corrugated Carton Box Machine CE Approved 0

Hydraulic Shaftless Mill Roll Stand / Corrugated Carton Box Machine CE Approved 1
