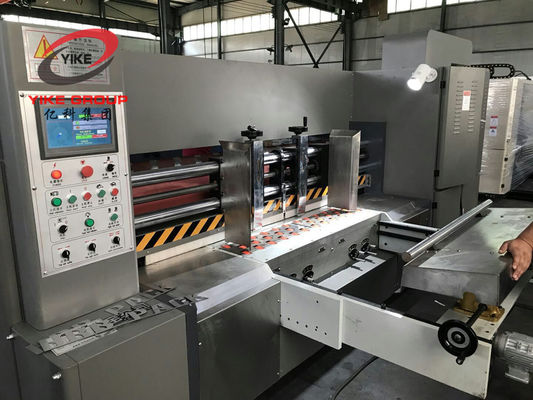

YIKE Automatic Lead Edge Feeder Rotary Diecutter For Corrugated Box Manufacturer

YIKE GROUP Automatic Corrugated Board Lead Edge Feeding Slotter Machinery Supplier

※General Features

Quality: Due to high requirements for mechanical quality, raw materials selection, processing, assembly of industrial control over the industry standard, using the new design, quality management system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment.

Efficiency: Patent type feeding width automatic adjustment device and printing locking device with screw. With 4.0 engineering design of industrialization, both hardware and software are charged with the author’s high efficiency tools.

Service: Based on the industry’s first use of PDM design file management system, complete technical support files, regardless of the long time can still be credible commitment to customers, continuous and efficient after-service for the customer support. 24 hours service with 12 engineers .

※Main Features

• The gear of the machine: Auto lubrication with oil.
• Machine body thickness: 50mm
• Automatic separated, pneumatic lock up.

※Lead Edge Feeder Unit

• Automatic suction lead edge feeder equipped with a 7.5kw suction fan to feeding cardboard, the blowing rate is adjustable by the transducer according to the degree of crook of cardboard in order to transmit cardboard smoothly.
• The main control pannel is composed of control buttons and touch screen, which is very convenient and reliable.
• The machine is launched by pressing the start button with two hands, which ensure the operator's safety.
• The side plate is electrical adjusted automatically while the backstop is adjusted manually.
• Sheet cleaner is equipped to remove the contaminants on the cardboard which will improves the printing quality.
• The upper transmission roll is made of seamless steel tube, the surface is covered wearproof rubber, which is also good at avoiding crushing the cardboard.
• The lower transmission roll is made of seamless steel tube, with the treatment of grinding, embossing, and chrome plated.
• The transmission between the upper and lower transmission roll is driven by double slider coupling, which is good at reducing wear down and transmitting smoothly.
• The transmission shaft equipped with electromagnetic friction clutch, for avoiding damaging the motor in case of misoperation or overload.
• Automatic counter for recording the cardboard supply quantity to show the output.

※Die-cutting Unit

• Rubber roller mechanical spiral commutation 40mm move about horizontal structure
• Die-cutter phase, computer and electric digital control
• Horizontal phase, computer and electric digital control, range ±5mm
• Rubber roller and die roller gap use computer and electric digital control,
• Adjust the transfer roller use computer and electric digital control,
• The rubber roller compensated by motor-driven,control the speed of thr rubber roller, range ±3mm
• Rubber roller hsiuping cutting structure, keep rubber surface roughness
• Stripping the belt longitudinal output, to easy clean waste paper.
