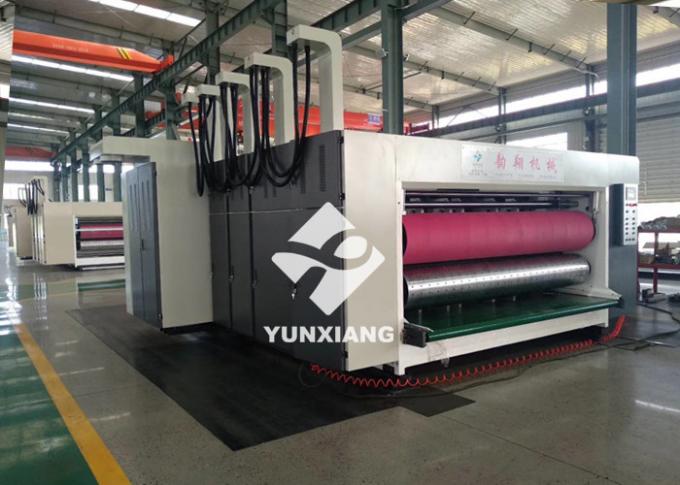

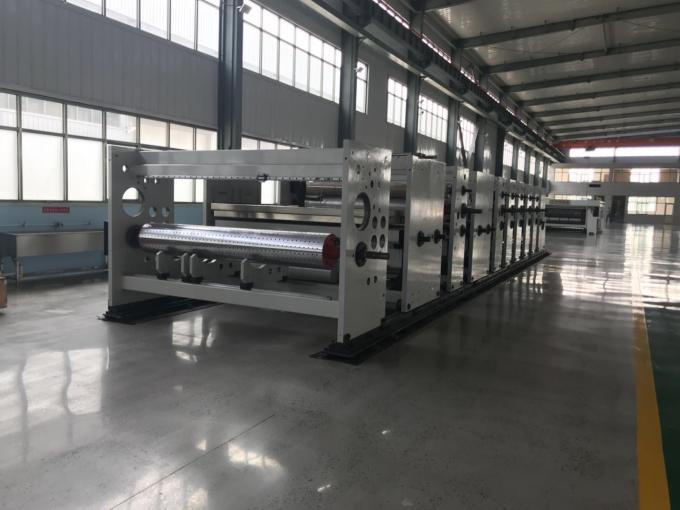

YIKE Corrugated Carton Box Printing Machine, 150pcs/min Flexo Printer Slotter Machine For Corrugated Box
WhatsApp: 0086 177 4385 9771
►Quality: Due to high requirements for mechanical quality, raw materials selection, processing, assembly of industrial control over the industry standard, using the new design, quality management system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment.
►Efficiency: Patent type feeding width automatic adjustment device and printing locking device with screw. With 4.0 engineering design of industrialization, both hardware and software are charged with the author’s high efficiency tools.
►Service: Based on the industry’s first use of PDM design file management system, complete technical support files, regardless of the long time can still be credible commitment to customers, continuous and efficient after-service for the customer support. 24 hours service with 12 engineers .

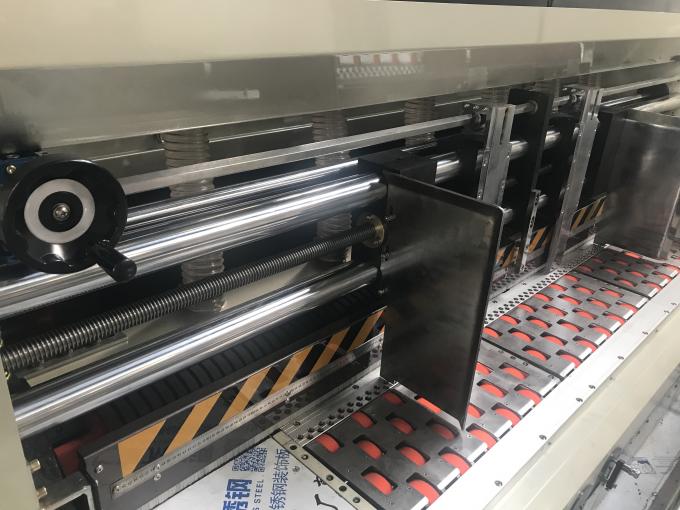

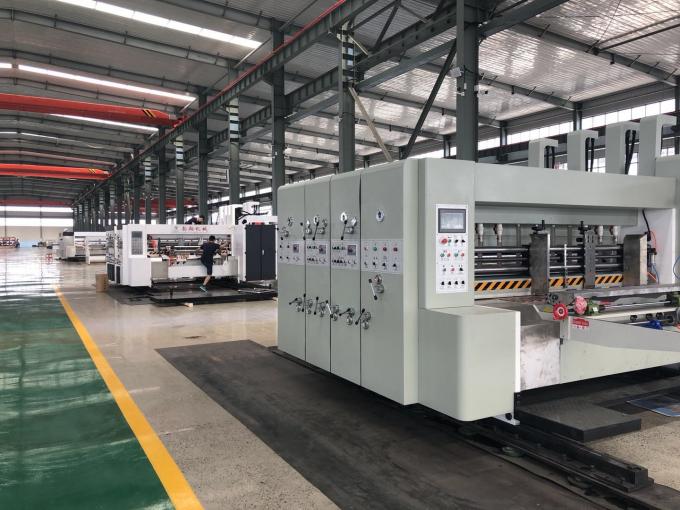

►Lead-edge Feeding System
- Lead-edge suction feeding system, easy operation, high accuracy,(adopts lead feeder system).
- 7.5KW high pressure centrifugal fans, according to the cardboard warping degree of frequency control pressure, to ensure warp cardboard or thin cardboard high-speed accurate transmission.
- Left and right side baffle position electrically adjustable,screw-driven.and can remember by computer.
- Front baffle adjust the position of the upper and lower intervals synchronization by manual.
- Skip-feeding devices, could select skip-feeding according to needs. To ensure that large-scale cardboard can also be processed.
- Install 7” touch screen, could automatically display the production quantity, production speed, and set the production quantity and every operating.
- Slotting part is equipped with the interlock switch, to achieve the emergency stop, stop feeding or feeding.
►Machine Separation & Combination
- Button switches electrically control the separation and combination of machine, with automatic alarm device, continuously alarm while moving, to ensure safety of operators.
- Air pressure interlocks, lock securely, conveniently and accurately.
- Machine clutch drive shaft is equipped with overload protection device.
- Active self-locking function: if unit is not completely locking state,the host cannot start, to ensure the safety of machine and operator; while host normal working conditions, the unit clutch function is automatically lock, to avoid machine misuse and personal injury.
- Adopt brush cleaning device, equipped with strong Negative pressure suction fan, clearing the dust, paper scrap or other waste, to improve printing quality.
►Feeding Roller: double Feeding Roller
- Upper feeding roll adopts outer diameter φ165mm rubber roller, elastic buffer wear rubber (inside soft, outside hard), dynamic balance correction, to ensure smooth and accurate feeding.
- Lower feeding roller adopts embossed rollers, hard chrome-plated, wear and smooth.
- According to cardboard thickness, adopt worm gear box gap tuning, with locking device. Adjustment range 0-12mm
- With printing plate, outer diameter φ420mm
- High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running
- Roller horizontal direction and circumferential direction with datum line, convenient for align plate
- Fixed coil axis, suitable for standard hanging slats, realize rapid change plate
- Electric 360° adjust printing roller, automatic digital display adjustment,remember store digital.
- Installed with foot switch to control plate roller reversing, convenient change plate
- Auto-zero function,order memory.
- Printing roller plate-change and fix-plate function.
- Printing roll axial is adjusted left and right by manual,maximum movement left and right 10mm,auto-zero instruction.
- Adopt high quality seamless delicately processing, dynamic balance adjustment, stable operation
- Diameter φ175mm, surface grinded, hard chromium-plated
- Gear adopt backlash adjustment mechanism, adjustment none-affect gear enunciation, guarantee transmission accuracy
- Printing roller can be adjusted for a distance 0-12mm
- pressing roller, feeding shaft can be adjusted by manual , and loose and tight the roller also by manual.
- Outer diameter φ212mm
- Anilox roller, brand HAILI
- Outer diameter φ200mm
- Rubber roller adopts Guangdong Jingyang.
- Overrunning clutch and automatic idling device, to prevent the ink dried
- Rubber roller drum type middle part higher, to ensure ink quality
- Rapid spaced spinner self-locking device, ensures uniform ink
- Ink distributing roller independent drive mechanism, ensure ink quality
- Feeding roller diameterφ86mm, four wheels feeding
- Feeding roller gear adopts no-side-gap regulating mechanism, can adjust the interval of 12mm
- Hand adjustable rapid clearance adjustment self-locking device, fast, reliable.
- Pneumatic diaphragm pump, simple operation, convenient maintenance, supply stability
- Circulating pneumatic ink
- Screen for filtering impurities, guarantee printing quality
►Phase Adjust System
- Planetary gear structure
- Digital computer 360 ° adjustment, both running and stopping state conditions
- Printing phase adjustment of PLC computer display adjustment
- After units separate, automatic reset system (eraser memory)
►Phase Fix System
- Pneumatic brake device, Unit separation and combination or phase adjustment, original point of transmission gear with constant
- Auto-zero device, to ensure that the units have a uniform adjusted basis, reducing cardboard waste,edition memory function.

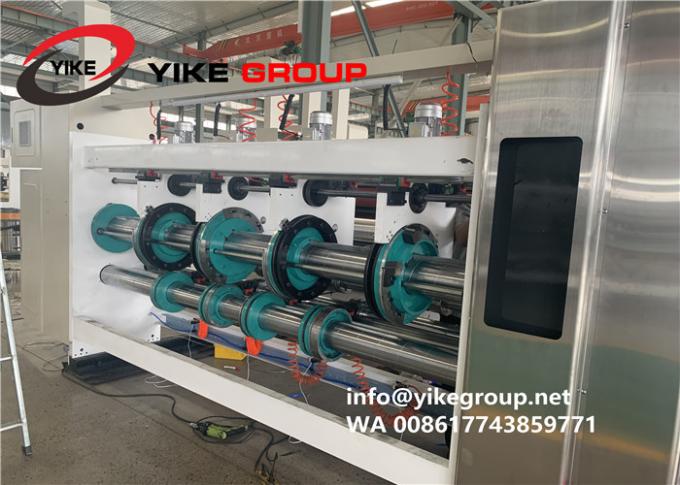

- Single-axle double-knife slotter, use Internal tooth structure adjustment the height of box, So that oil does not easily contaminated cartons
- The first pressure line round, after pre-loading cardboard not easily crush
- The above press round Urethane appearance package, will not damage the cardboard
- The slotter knife stock use traverse mechanism, screw with linear guide, to move more flexible and precise
- Slotting phase and box height, computer and electric digital control
- Preload, creasing gap adjustment adopt computer and electric digital control
- The slotter knife stock gap adjustment adopt self-locking structure
- There's the elastic corner-cutting knife. Can cut three, five, cardboard without adjusted.
- Preload wheel, creas wheel, slot knife traverse position computer and electric digital control
- The slotter knife adopt Anti-knife manner
- Computer automatic arrange knife, can stockpile 999 memories
Die-Cutting with Slotter Combined Unit
- Rotary Die Cutting With Slotter Combined which can make common box and special box together
- Rubber roller mechanical spiral commutation 40mm move about horizontal structure
- Die-cutter phase, computer and electric digital control
- Horizontal phase, computer and electric digital control, range ±5mm
- Rubber roller and die roller gap use computer and electric digital control,
- Adjust the transfer roller use computer and electric digital control,
- The rubber roller compensated by motor-driven,control the speed of thr rubber roller, range ±3mm
- Rubber roller hsiuping cutting structure, keep rubber surface roughness
- Stripping the belt longitudinal output,to easy clean waste paper.
Main Driving Gear
- High precision bevel gear, adopt 20CrMnTi quality steel, carburizing quenching, fine grinded gear, transmission gear of high strength, good wear resistance, low noise, longtime ensure the machine rotation precision
- Lubrication adopt closed type spray lubrication system, to ensure transmission accuracy and use-life
Main Bought-in Parts (from Good Famous Manufacturers )
||The main motor adopts frequency conversion motor SIEMENS better
||Fan with variable frequency motor (Shanghai) Zhicheng
||Units with independent control unit, the safety and reliability of the relay, lights, buttons, contactor, air switch with Schneider and other famous products, to ensure the reliable
||Adjust the frequency converter adopts Delta (the main motor frequency conversion adjustment, suction feeding frequency adjustment
||PLC The controller adopts Delta
||The rotary encoder using OMRON (Japan)
||Cylinder, pneumatic components adopts (Taiwan) Yadeke
||The electromagnetic valve adopts AIRTAC (Taiwan)
||The touch screen display adopts Delta
||Rubber roller, Jing Hui of guangzhou city
||Taiwan Shengbang phase motor
||Ink motor used (Taiwan Shengbang motor )
Qingdao JINDA knife tool
- While customer signing contract, must mark positive or negative knifes
- Customer need choose anilox lines No.
- Machinery has twelve months guarantee,without contain wearing parts, if need to install and training,we will send our technical person,but all of charge will be paid by buyer, (such as: visa fee, room and board, workers salary $100 per person per day)
