Product Details:
|
| Item: | Corrugated Cardboard Production Line | Design Speed: | 80m/min |
|---|---|---|---|
| Working Speed: | 40-60m/min | Size Available: | 1400-1800mm |
| Usage: | 2 Ply Single Facer Line | Application: | Corrugated Carton Box |
| Roller Size: | 280mm | Name: | 280S Electrical Heating Single Facer |
| High Light: | corrugated board making machine,single facer corrugated machine |
||
Adsorption Fingerless Electrical Heating Single Facer For Corrugated Paperboard
I YX-280S Single Facer
II Specification
| Working Width | 1600mm | 1800mm | 2000mm | 2200mm | |||
| Heating Method | Electric Heating | ||||||
| Design Speed | 100m/min | ||||||
| Economical Speed | 40-80m/min | ||||||
| Compress-Air Pressure | 0.4-0.9MPa | ||||||
| Flute Type | Standard flute | UVE Flute | |||||
| Standard spec. | A,B,C,E,F | ||||||
|
For other type and model, we can produce as customer’s requirement. |
|||||||
| Corrugated Roll Diameter (mm) | 280 | ||||||
| Wall Thickness (mm) | 130 | ||||||
| Type | Vacuum Absorb | ||||||
| Roller Material | 48CrMo alloy, Heat treated | ||||||
| Machine Size (mm) | 3300*1300*1700 | 3550*1300*1700 | 3800*1300 | ||||
III More Single Facer Available
IV Regular Technical Parameters:
V Roller Diameters Parameters:

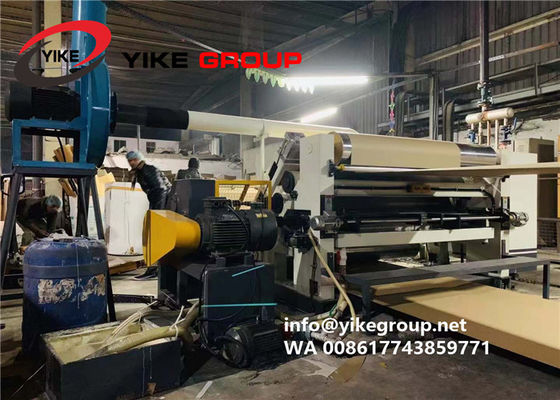

VI. 100% Real Photos
