Product Details:
|
| Name: | Hydraulic Mill Roll Stand | Automatic Grade: | Automatic |
|---|---|---|---|
| Warranty: | 1 Year | Packaging Type: | Cartons |
| Usage: | Making Corrugated Cardboard | Function: | To Produce The Corrugated Paperboard |
| Color: | As Client's Requiremnets | Condition: | New |
| Type: | New Type | Driven Type: | Electric |

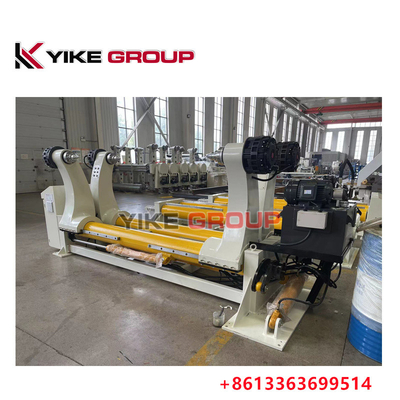

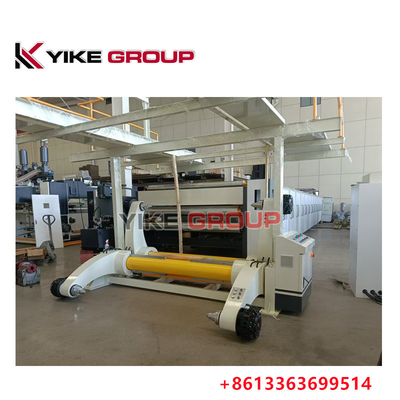

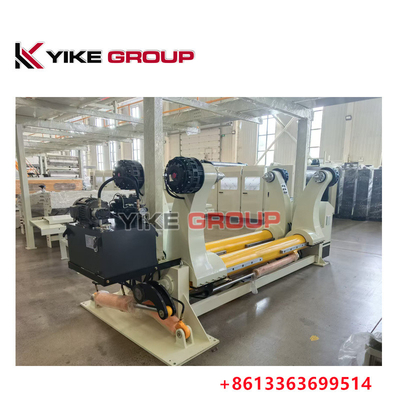

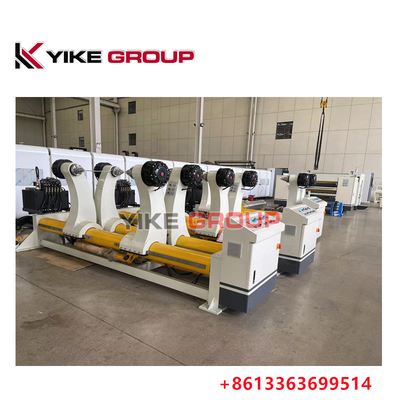

High-Speed Hydraulic Mill Roll Stand For 2500MM 5PLY Corrugated Cardboard Production Line
Technical parameters
|
Working wide
|
2500mm |
| Paper diameter |
MAX: 1500mm MIN:300mm
|
| Paper width |
MAX: 2550mm MIN:800mm
|
| Weight capacity |
3.5T
|
| Paper head size |
Teeth 3 inches 4 inches
|
| brake |
Spur gear type more points pneumatic
|
| Working air pressure |
0.4---0.8Mpa
|
Main performance characteristics
★Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.
★The brake uses a multi-point brake system, a gear disc structure, equipped with a cooling fan, Yadeke pneumatic components, stable tension, and long life.
★The large-diameter spindle design, the swing arm slides smoothly, and the steel guide rails are treated with high frequency treatment, which is super wear-resistant.
★The hydraulic cylinder is installed on a twisted shaft, which does not bear radial force and is easy to maintain.
B,Hydraulic system parameters:
|
Working pressure
|
Hydraulic cylinder working range | Hydraulic cylinder working range | Hydraulic station motor power | Solenoid valve working voltage |
|
16---18Mpa
|
￠125×360mm | ￠80×850mm | 4KW --380V -- 50Hz | 220V--50 Hz |
FAQ
1. who are we?
CHINA YIKE GROUP, Which based in Hebei, China, start from 2002,sell to Mid East(24.00%),South America(21.00%),Eastern
Europe(15.00%),Africa(10.00%),Southeast Asia(10.00%),North America(5.00%),Western Europe(2.00%),Southern Europe(2.00%),Eastern
Asia(10.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Firstly pre-production sample before mass production;
Secondly Inspection before shipment;
3.what can you buy from us?
Corrugated Cardboard Production Line,Carton Box Making machine, Box Printing Forming Machine, Auto folder gluer, sitching machine, die cutting machine, bundling machine..
4. why buy from us not from other suppliers?
Factory related carton machinery import & export company, based on more than 30 years experience in providing complete and carton machinery solutions according to different customer situations and requriements. reliable quality and good service on site.
