YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine

YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine
YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine
YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine

Large Image :  YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine

Product Details:
Place of Origin: China
Brand Name: YIKE GROUP
Certification: ISO CE
Model Number: YK-2200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 6800/set
Packaging Details: Plastic Packaging
Delivery Time: 20 working days
Payment Terms: D/A, L/C, D/P, T/T
Supply Ability: 1000set/month
Contact Now

YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine

Description

YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine



STRUSTURAL FEATURE:



1.Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.



2.brake adjustable adopts multipoint braking system.



3.every stand matched two sets paper car , and they can paper on the both sides at the same time.

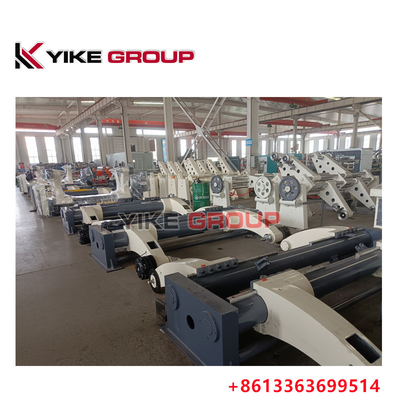

YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine 0





Technical parameters:

  • The range of clamping paper:MAX2200mm MIN1000mm
  • clamping diameters:MAX￠1500mm MIN￠350mm
  • main shaft diameter of paper holder:￠240mm
  • gas source work pressure(Mpa):0.4---0.8Mpa
  • equipment size:Lmx4.3*Wmx1.8*Hmx1.6
  • single weight:MAX 4000Kg

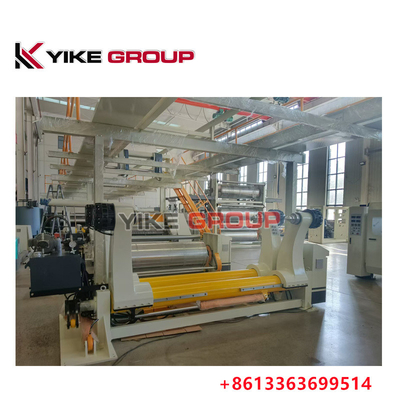

YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine 1



  • Hydraulic system parameters:
  • Work pressure(Mpa):16---18Mpa
  • lifting hydraulic cylinder:￠100×440mm
  • Clamping hydraulic cylinder:￠63×1300m
  • hydraulic station motor power:3KW --380V -- 50Hz
  • solenoid valve voltage:220V 50 Hz

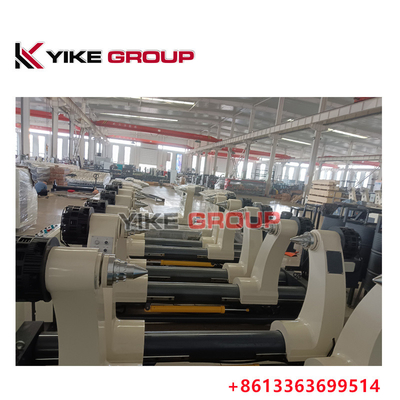

YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine 2



Mainly purchased parts, raw materials and origin



Name of main parts



 Brands or place of origin material

Main shaft



 Day steel production diameter242mm

Swing arm



 Production by own Resin sand gray ironHT200

wallboard



 Jigang prduction Q235AWelding parts

bearing



 HRB,ZWZ,LYC

expand chuck



 Zhejiang xusheng 3,4inch shared

Main electrical appliance



 France Schneider

button



 CHINT NP2series

Air switch



 French Schneider

Pneumatic components



 Zhejiang Sonor CSM

Hydraulic station



 Shandong zaozhuang

Brake pump



 zhejiang

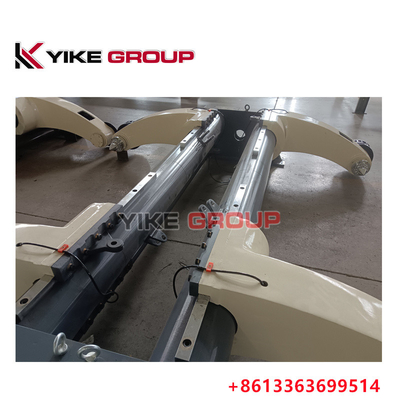

YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine 3

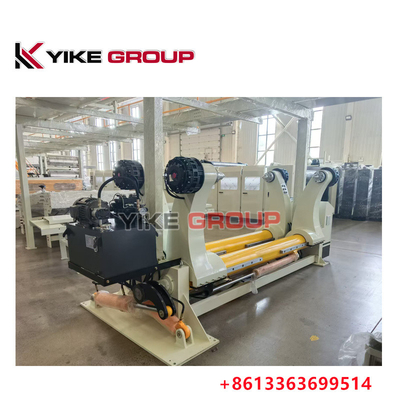

YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine 4

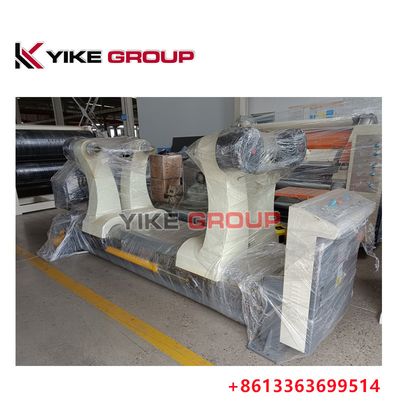

YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine 5

More details if you need pls add me



whatsapp +008613363699514



Anna@yikegroup.net





YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine 6

















YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine 7

YIKE GROUP 1600/1800/2200/2500 MM Heavy Duty Hydraulic Shaftless Mill Roll Stand Machine 8
