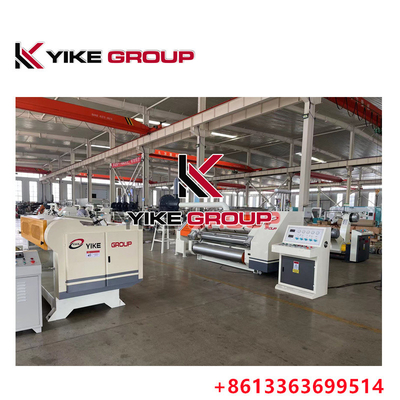

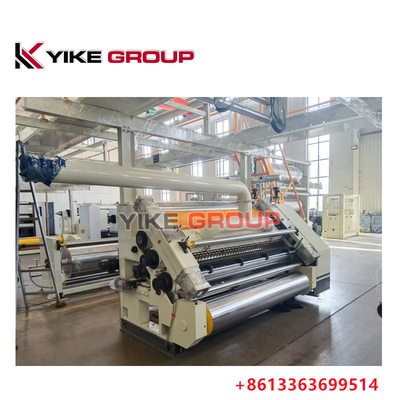

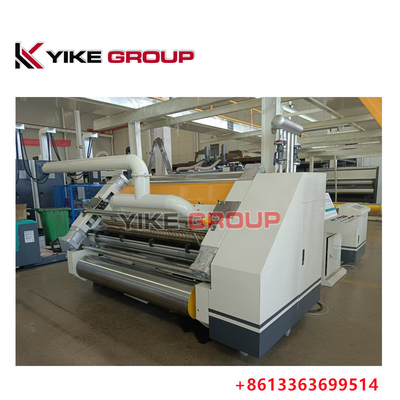

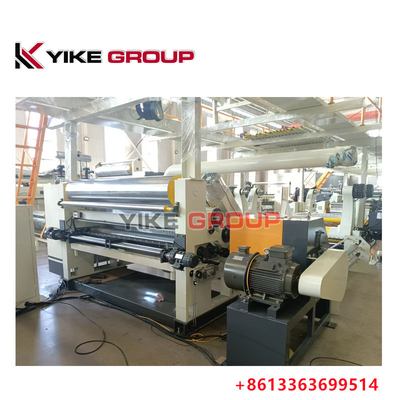

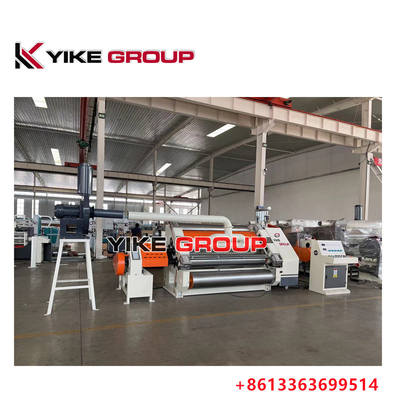

YIKE GROUP High Quality Corrugated Single Facer Machine For 3/5/7 Ply Corrugated Cardboard Production Line

1.effective width:1400mm

2,operation direction:left or right(determined in accordance with customer plant)

3,design speed:100m/min working speed:60m/mi

4,temperature range:200—260℃

5,corrugated flute:(UV type or UVV type)

Roller diameters parameters:

1.diameter of corrugated roller: ￠280mm

2,diameter of pressure roller: ￠284mm

3,diameter of glue roller: ￠216mm

4,diameter of preheat roller: ￠320mm

Structural features:

1.Adopt vacuum suction structure, with high pressure strong blower. Suction with silencer.

2,base and wallboard cast iron wall, Wallboard thickness130mm.universal Joints.

3,corrugated roller material adopt 48CrMo Alloy steel.

4,pressure roller ¢ 284mm,surface grinding and chrome-plated; cylinder control and remove up and down, 45 carbon steel materials, quenching (with cushioning devices).

5,pneumatic control glue to glue back, glue roller diameter ￠215mm,Engraved polished surface after a 36-line pit style textured machined chrome plated,after scraping the roller surface polished hard chrome plated.

6,Corrugated roller, pressure roller materials provided by the Central Plains Steel,High on corrugating unilateral 0.15mm, 0.075mm high pressure roller unilateral. Plus stopper. ¢ 160mm cylinder with compression cylinder.

7,preheat roll adopt seamless steel pipe production by tiangang ¢ 300mm,connecting with metal Hose.

Powered motor parameters:

1,main drive motor:7.5Kw rated voltage:380V 50Hz Continuous (S1) working standard

2,suction motor:7.5Kw rated voltage:380V 50Hz Continuous (S1) working standard
