Width 2200mm Unwind Hydraulic Shaftless Mill Roll Stand For Corrugated Cardboard Plant

Width 2200mm Unwind Hydraulic Shaftless Mill Roll Stand For Corrugated Cardboard Plant

Hydraulic shaftless mill roll stand Use for corrugated cardboard production line From YIKE GROUP

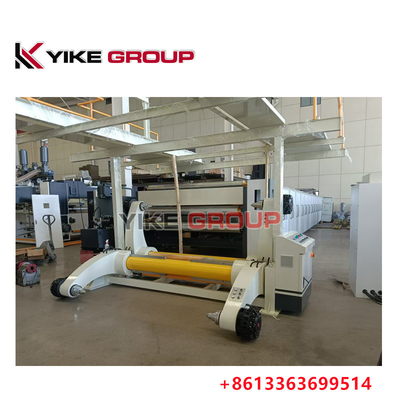

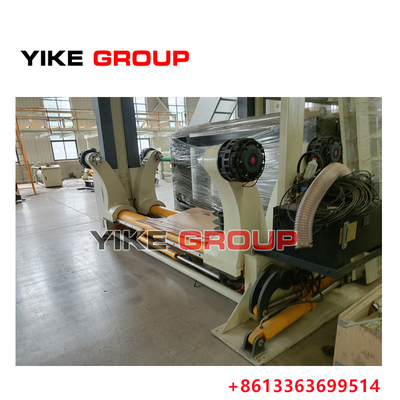

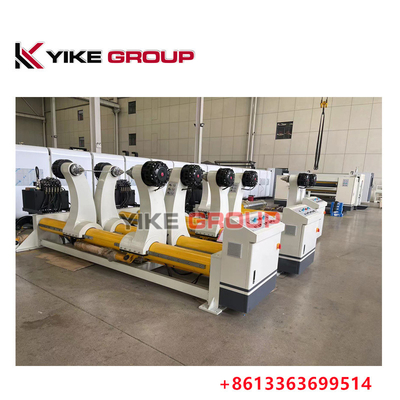

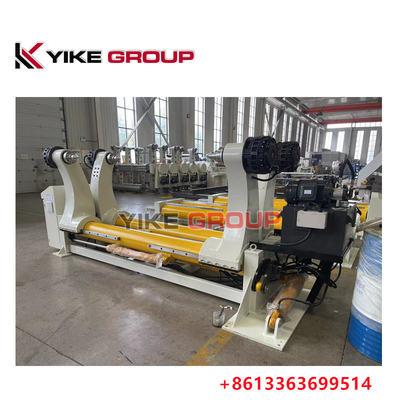

Hydraulic shaftless mill roll stand

※structural feature:

★adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right

and others,the lifting of the paper adopts hydraulic drive.

★brake adjustable adopts multipoint braking system.

★every stand matched two sets paper car , and they can paper on the both sides at the same time.

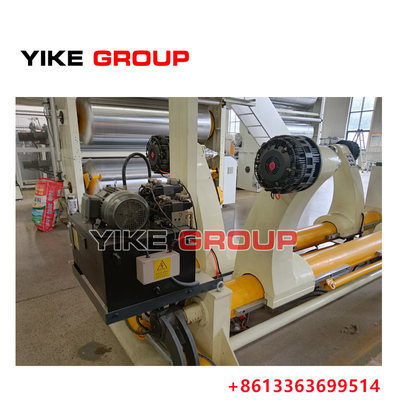

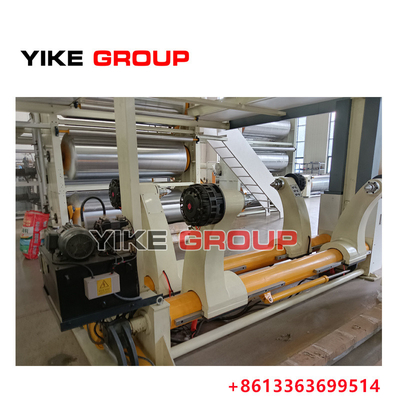

Hydraulic system parameters:

1.Work pressure(Mpa):16---18Mpa

2.lifting hydraulic cylinder:￠100×440mm

3.Clamping hydraulic cylinder:￠63×1300m

4.hydraulic station motor power:3KW --380V -- 50Hz

5.solenoid valve voltage:220V 50 Hz

Hydraulic mill stand machineTechnical parameters:

• The range of clamping paper:MAX2200mm MIN1000mm
• clamping diameters:MAX￠1500mm MIN￠350mm
• main shaft diameter of paper holder:￠240mm
• gas source work pressure(Mpa):0.4---0.8Mpa
• equipment size:Lmx4.3*Wmx1.8*Hmx1.6
• single weight:MAX 4000Kg
