Product Details:
|
| Product Name: | 1400MM Hydraulic Mill Roll Stand | Size Available: | 1400-3200mm |
|---|---|---|---|
| Usage For: | Corrugated Paperboard Production Line | Application: | Carton Line |
| Brand Name: | YIKE GROUP | Voltage: | 220v/380v/415v/440v |
| Place Of Origin: | Hebei, China | Color: | Customized Color |
| Suitable For: | Corrugated Cardboard Plant |
1400mm Hydraulic Shaftless Mill Roll Stands Machines For 2-layer Corrugated Paperboard Production Line

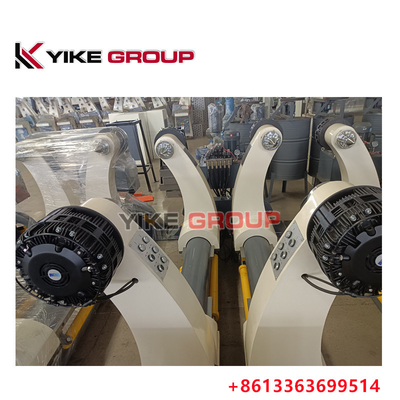

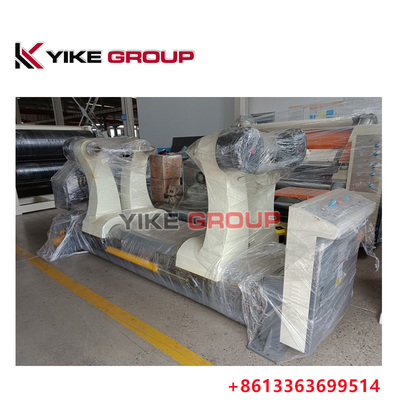

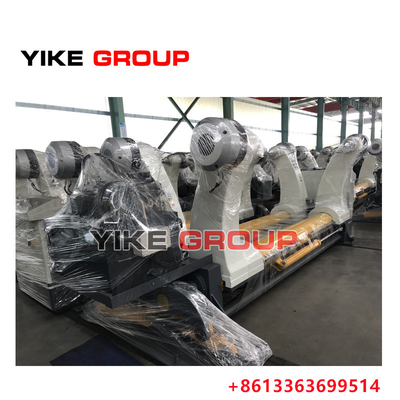

ZJ-V5B hydraulic shaftless mill roll stand
※structural feature:
★adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right
and others,the lifting of the paper adopts hydraulic drive.
★brake adjustable adopts multipoint braking system.
★every stand matched two sets paper car , and they can paper on the both sides at the same time.
Technical parameters:
1.the range of clamping paper:MAX1400mm MIN1000mm
2.clamping diameters:MAX￠1500mm MIN￠350mm
3.main shaft diameter of paper holder:￠242mm
4,gas source work pressure(Mpa):0.4---0.8Mpa
5,equipment size:Lmx4.3*Wmx1.8*Hmx1.6
6,single weight:MAX4000Kg
Hydraulic system parameters:
1.Work pressure(Mpa):16---18Mpa
2,lifting hydraulic cylinder:￠100×440mm
3,Clamping hydraulic cylinder:￠63×1300m
4,hydraulic station motor power:3KW --380V -- 50Hz
5,solenoid valve voltage:220V 50 Hz
