Product Details:
|
| Product Name: | Hydraulic Mill Roll Stand | Item: | Corrugated Paperboard Carton Line |
|---|---|---|---|
| Size Available: | 1400-3200mm | Usage: | Kraft Paper Stand |
| Application: | Carton Line | Brand Name: | YIKE GROUP |
| Voltage: | 220v/380v/415v/440v | Place Of Origin: | Hebei, China |
| Color: | Customized Color | Suitable For: | Corrugated Cardboard Plant |

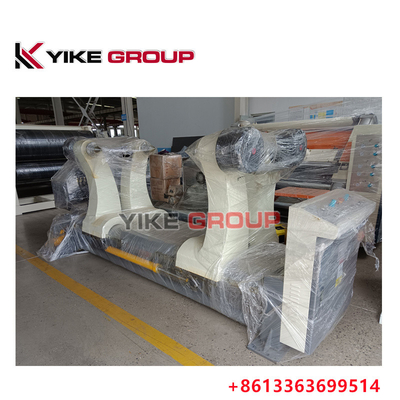

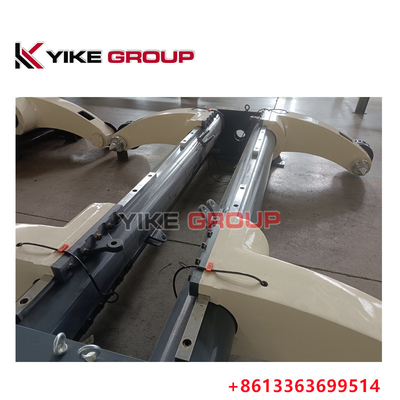

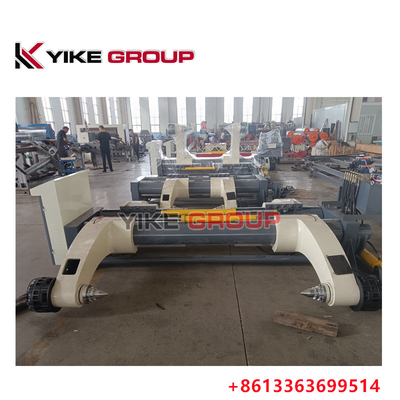

YK-1600 ZJ-V5B Hydraulic Shaftless Mill Roll Stand For Corrugated Paperboard Carton Line
※ZJ-V5B hydraulic shaftless mill roll stand
※structural feature:
★adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right
and others,the lifting of the paper adopts hydraulic drive.

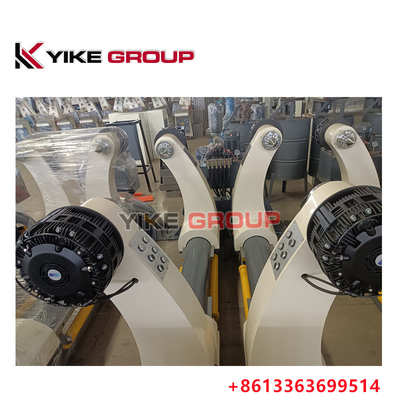

★brake adjustable adopts multipoint braking system.
★every stand matched two sets paper car , and they can paper on the both sides at the same time.
※Technical parameters:
1.the range of clamping paper:MAX1600mm MIN1000mm
2,clamping diameters:MAX￠1500mm MIN￠350mm
3,main shaft diameter of paper holder:￠240mm
4,gas source work pressure(Mpa):0.4---0.8Mpa
5,equipment size:Lmx4.3*Wmx1.8*Hmx1.6
6,single weight:MAX4000Kg
※Hydraulic system parameters:
1.Work pressure(Mpa):16---18Mpa
2,lifting hydraulic cylinder:￠100×440mm
3.Clamping hydraulic cylinder:￠63×1300m
4,hydraulic station motor power:3KW --380V -- 50Hz
5,solenoid valve voltage:220V 50 Hz
