Product Details:
|
| Automatic Grade: | Automatic | Warranty: | 1 Year |
|---|---|---|---|
| Name: | V6B Hydraulic Mill Roll Stand | Packaging Type: | Cartons |
| Usage: | Making Corrugated Cardboard | Function: | To Produce The Corrugated Paperboard |
| Color: | As Client's Requiremnets | Weight Capacity: | 3.5T |

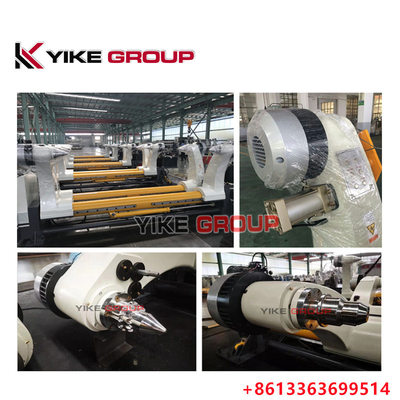

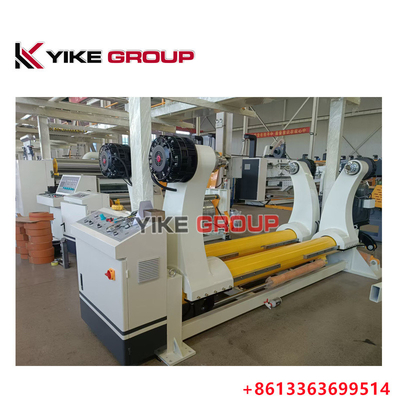

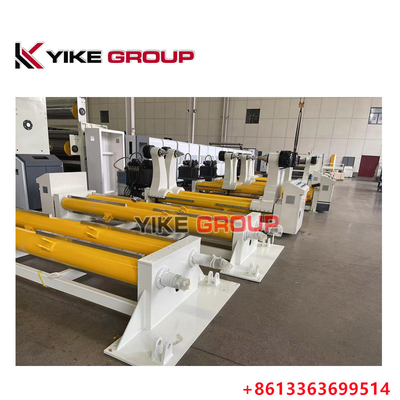

YK-2500 /250,V6B Hydraulic Mill Roll Stand For High-Speed Automatic Corrugated Cardboard Production Line
Technical parameters
|
Working wide
|
2500mm |
| Paper diameter |
MAX: 1500mm MIN:300mm
|
| Paper width |
MAX: 2550mm MIN:800mm
|
| Weight capacity |
3.5T
|
| Paper head size |
Teeth 3 inches 4 inches
|
| brake |
Spur gear type more points pneumatic
|
| Working air pressure |
0.4---0.8Mpa
|
Main performance characteristics
★Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.
★The brake uses a multi-point brake system, a gear disc structure, equipped with a cooling fan, Yadeke pneumatic components, stable tension, and long life.

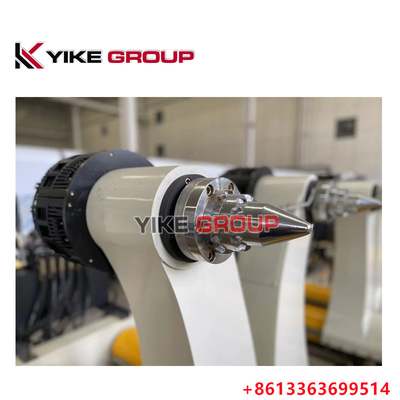

★The large-diameter spindle design, the swing arm slides smoothly, and the steel guide rails are treated with high frequency treatment, which is super wear-resistant.
★The hydraulic cylinder is installed on a twisted shaft, which does not bear radial force and is easy to maintain.

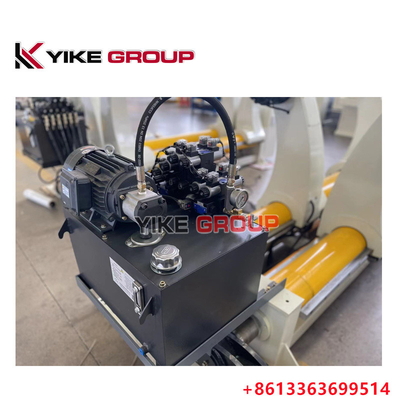

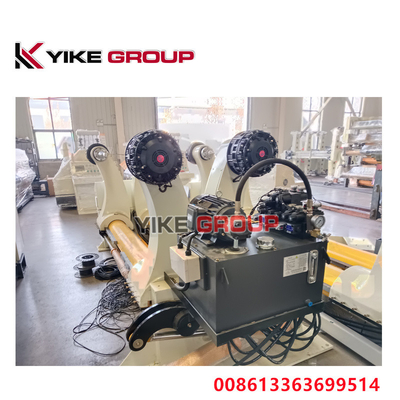

B,Hydraulic system parameters:
|
Working pressure
|
Hydraulic cylinder working range | Hydraulic cylinder working range | Hydraulic station motor power | Solenoid valve working voltage |
|
16---18Mpa
|
￠125×360mm | ￠80×850mm | 4KW --380V -- 50Hz | 220V--50 Hz |
