2 Layer BHS MARQUIP FOSBER Single Facer Line Corrugated Paperboard Making

2 Layer BHS MARQUIP FOSBER Single Facer Line Corrugated Paperboard Making
2 Layer BHS MARQUIP FOSBER Single Facer Line Corrugated Paperboard Making 2 Layer BHS MARQUIP FOSBER Single Facer Line Corrugated Paperboard Making

Large Image :  2 Layer BHS MARQUIP FOSBER Single Facer Line Corrugated Paperboard Making

Product Details:
Place of Origin: CHINA
Brand Name: YIKE GROUP
Certification: ISO,CE
Model Number: YK-1800SINGLE FACER LINE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set Single Facer Line
Price: Negotiation
Packaging Details: Plastic Film,FCL
Delivery Time: 30 Days After Deposit of Single Facer Line
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Sets Per Month

2 Layer BHS MARQUIP FOSBER Single Facer Line Corrugated Paperboard Making

Description
Diameter Of Corrugated Roller: ¢320mm Diameter Of Glue Rolle: ¢240mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Maintenance And Repair Service Type: Packaging Line
Automatic Grade: Automatic Single Facer Packaging Type: Cartons,Case,Film
Speed: 150m/min Product Name: Corrugated Cardboard Production Line
High Light:

Shaftless Single Facer Line

,

150m/min Shaftless Mill Roll Stand

,

Hydraulic Shaftless Single Facer Line

Single Facer Line-2 Layer BHS, MARQUIP, FOSBER Corrugated Pape Board Making Machine

ZJ-V5B hydraulic shaftless mill roll stand



structural feature:

1. Every stand matched two sets paper car , and they can paper on the both sides at the same time.

2. Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.



Hydraulic system parameters:

1. Work pressure(Mpa):16---18Mpa 2.lifting hydraulic cylinder:¢100×440mm

2. Clamping hydraulic cylinder:¢63×1300m 4.hydraulic station motor power:3KW --380V -- 50Hz

3. solenoid valve voltage:220V 50 Hz

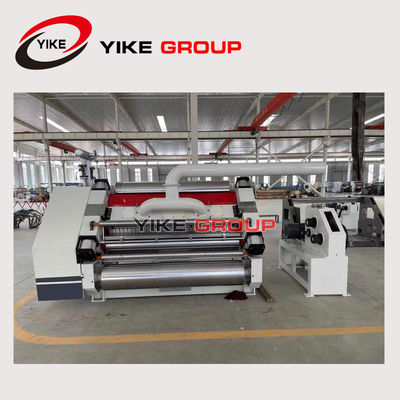

YK-280S fingerless type single facer(Steam heating)



structural feature:

1. base and wallboard cast iron wall, Wallboard thickness130mm.universal Joints.

2. corrugated roller material adopt 48CrMo Alloy steel.

3. pressure roller ¢ 284mm,surface grinding and chrome-plated; cylinder control and remove up and down

4. pneumatic control glue to glue back, glue roller diameter ¢215mm,Engraved polished surface after a 36-line pit style textured machined chrome plated,after scraping the roller surface polished hard chrome plated.

regular technical parameters:

1. effective width:1600mm

2. operation direction:left or right(determined in accordance with customer plant)

3. design speed:100m/min working speed:60m/min

4. temperature range:200—260℃



Rotary paper receiving machine:

1. the maximum length of the machine to receive paper 1350mm.

2. the machine can achieve automatic points without stopping, automatic stacking, automatic sub-stacker.

3. the machine receiving the highest speed 70m / min.





2 Layer BHS MARQUIP FOSBER Single Facer Line Corrugated Paperboard Making 0

2 Layer BHS MARQUIP FOSBER Single Facer Line Corrugated Paperboard Making 1
