ZJ-V5B Hydraulic Shaftless Mill Roll Stand High Speed 2 Layer

ZJ-V5B Hydraulic Shaftless Mill Roll Stand High Speed 2 Layer
ZJ-V5B Hydraulic Shaftless Mill Roll Stand High Speed 2 Layer ZJ-V5B Hydraulic Shaftless Mill Roll Stand High Speed 2 Layer

Large Image :  ZJ-V5B Hydraulic Shaftless Mill Roll Stand High Speed 2 Layer

Product Details:
Place of Origin: CHINA
Brand Name: YIKE GROUP
Certification: ISO,CE
Model Number: YK-1800SINGLE FACER LINE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set Single Facer Line
Price: Negotiation
Packaging Details: Plastic Film,FCL
Delivery Time: 30 Days After Deposit of Single Facer Line
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Sets Per Month

ZJ-V5B Hydraulic Shaftless Mill Roll Stand High Speed 2 Layer

Description
Diameter Of Corrugated Roller: ¢320mm Diameter Of Glue Rolle: ¢240mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Maintenance And Repair Service Type: Packaging Line
Automatic Grade: Automatic Packaging Type: Cartons,Case,Film
High Light:

Single Facer Shaftless Mill Roll Stand

,

2 Layer Shaftless Mill Roll Stand

,

Corrugated Cardboard Production Line 220V

High Speed 2 Layer Corrugated Cardboard Production Line

ZJ-V5B hydraulic shaftless mill roll stand

structural feature:

1. Every stand matched two sets paper car , and they can paper on the both sides at the same time.

2. Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.



Hydraulic system parameters:

1. Work pressure(Mpa):16---18Mpa 2.lifting hydraulic cylinder:¢100×440mm

3. Clamping hydraulic cylinder:¢63×1300m 4.hydraulic station motor power:3KW --380V -- 50Hz

5. solenoid valve voltage:220V 50 Hz

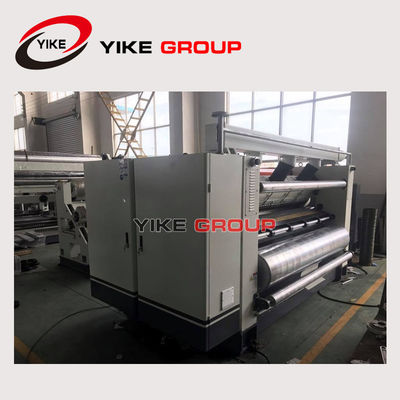

YK-320F fingerless type single facer



structural feature:

★ adopt hood suction structure,matched high pressure powerful fan. Gas supply and electrical control cabinet to focus on the same operation, the operating side full cover closed.

★ High quality resin sand casting,wall thickness 200mm.Adopt independent gear box, Universal joint transmission structure.

★ install the lifting trolley on the conveyor bridge,Need to use the car will tile roll assembly and pressure roller, such as convenient and quick.



Roller diameter parameters:

1. corrugated roller:up¢313mm down¢316mm pressure roller:¢320mm

2. glue roller:¢240mm fixed paste roller: ¢140mm preheat roller:¢402mm

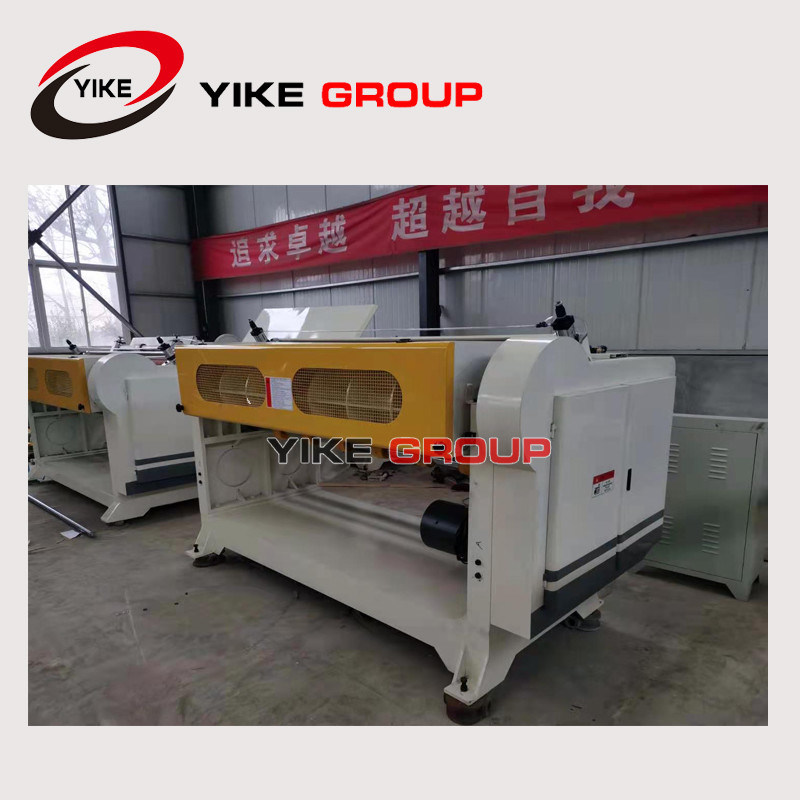

Rotary paper receiving machine:

1. the maximum length of the machine to receive paper 1350mm.

2. the machine can achieve automatic points without stopping, automatic stacking, automatic sub-stacker.



ZJ-V5B Hydraulic Shaftless Mill Roll Stand High Speed 2 Layer 0
