Product Details:
|
| Equipment Size: | Lmx4.3*Wmx1.8*Hmx1.6 | Work Pressure（Mpa）: | 16---18Mpa |
|---|---|---|---|
| Single Weight: | MAX4000Kg | The Range Of Clamping Paper: | MAX1600mm MIN1000mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Maintenance And Repair Service | Type: | Packaging Line |
| Automatic Grade: | Automatic | Packaging Type: | Cartons,Case,Film |
| Highlight: | Brake Adjustable Single Facer Line,16Mpa Corrugated Cardboard Production Line,380V Single Facer Line |
||
ZJ-V5B hydraulic shaftless mill roll stand
structural feature:
1. Brake adjustable adopts multipoint braking system.
2. Every stand matched two sets paper car , and they can paper on the both sides at the same time.
Hydraulic system parameters:
1. Work pressure(Mpa):16---18Mpa
2. lifting hydraulic cylinder:￠100×440mm
3. Clamping hydraulic cylinder:￠63×1300m
4. hydraulic station motor power:3KW --380V -- 50Hz
5. solenoid valve voltage:220V 50 Hz
YK-280S fingerless type single facer(Steam heating)
Structural features:
1.Adopt vacuum suction structure, with high pressure strong blower. Suction with silencer.
2.base and wallboard cast iron wall, Wallboard thickness130mm.universal Joints.
roller diameters parameters:
1.diameter of corrugated roller: ￠280mm
2.diameter of pressure roller: ￠284mm
3.diameter of glue roller: ￠216mm
4.diameter of preheat roller: ￠320mm

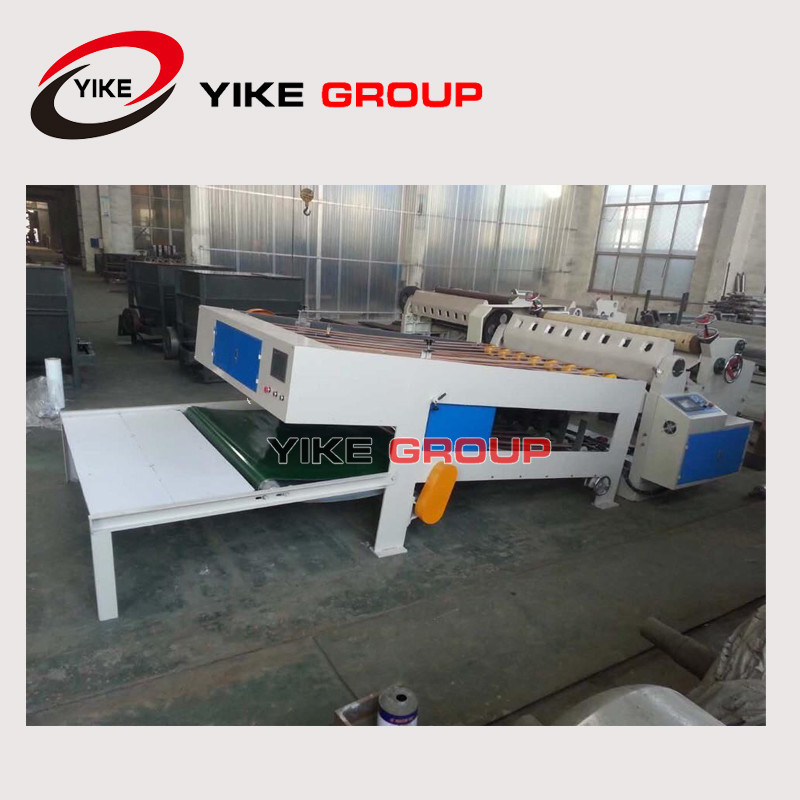

Rotary paper receiving machine
1. the machine receiving the highest speed 70m / min.
2.the maximum length of the machine to receive paper 1350mm.
