Product Details:
|
| Dimension(l*w*h): | According To Customer Request | Packaging Type: | Cartons,Case,Film |
|---|---|---|---|
| Packaging Material: | Paper,Wood | Warranty: | 1 Year |
| Speed: | 150-200m/min | Usage: | Making Corrugated Cardboard |
| High Light: | Hard Chrome Type Corrugated Roller,Corrugated Tungsten Carbide Roller,Single Facer Corrugated Rollers |
||
Features:

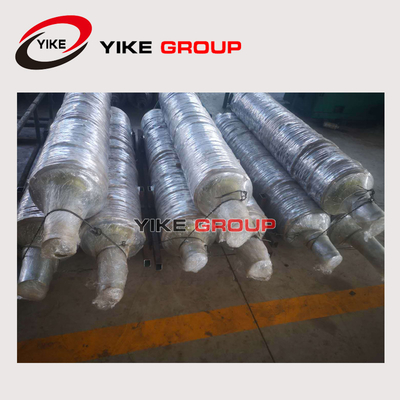

● High precision hard chrome steel A C B E F G flute corrugated roller
● Type: Hard Chrome & Tungsten Carbide
● Used for carton box corrugator machine-Single Facer
Description
1. Hard Chrome Type Corrugated Roller
● The upper and lower corruagted( corrugating, flute) roller for single facer machine
● Different type of flute according to user's request.
2. Tungsten Carbide Type Corrugated Roller
● With Tungsten Carbide coat on the surface of flute, make the corrugated roller with high wearability. The lifetime of Corrugated Roller become more Longer lifetime.
● Tungsten Carbide corrugated roller with lower flute height, and height of teeth keep for long time, save flute paper and glue capacity, make the paperboard stable quality. More important is the flute height almost not change during whole running life.
|
Flute |
A |
C |
BC |
B |
D |
E |
F |
G |
|
Profile |
UV |
UV |
UV |
UV |
UV |
UV |
UV |
UV |
|
Counts(300mm) |
34±2 |
36±2 |
44±2 |
50±2 |
66±3 |
96±4 |
124±10 |
185±12 |
|
Height |
4.6-4.9 |
3.6-3.9 |
3.0-3.4 |
2.6-2.9 |
1.9-2.1 |
1.1-1.8 |
0.7-0.8 |
0.5-0.65 |
|
Take Up Rate |
1.51-1.59 |
1.44-1.51 |
1.42-1.49 |
1.36-1.42 |
1.40-1.41 |
1.29-1.39 |
1.22-1.26 |
1.20-1.25 |
