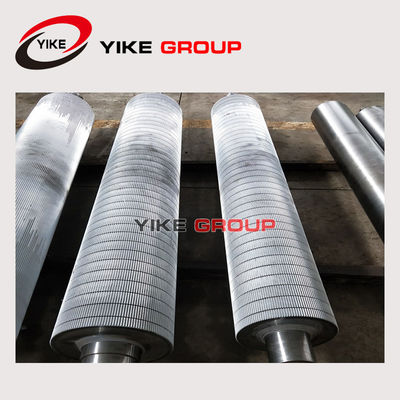

380V / 415V / 440V / 480V Corrugated Roller For 320Q Fast Change Single Facer

380V / 415V / 440V / 480V Corrugated Roller For 320Q Fast Change Single Facer
380V / 415V / 440V / 480V Corrugated Roller For 320Q Fast Change Single Facer

Large Image :  380V / 415V / 440V / 480V Corrugated Roller For 320Q Fast Change Single Facer

Product Details:
Place of Origin: CHINA
Brand Name: YIKE GROUP
Certification: ISO,CE
Model Number: Hard Chrome Type,Tungsten Carbide Type
Payment & Shipping Terms:
Minimum Order Quantity: 2 Sets
Price: Negotiation
Packaging Details: Plastic Film,FCL
Delivery Time: 30 Days After Deposit of Corrugated Roller
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Sets Per Month

380V / 415V / 440V / 480V Corrugated Roller For 320Q Fast Change Single Facer

Description
Voltage: 380V / 415V / 440 V / 480V Condition: New
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support Type: Packaging Line
Automatic Grade: Automatic Driven Type: Electric
Dimension(l*w*h): According To Customer Request Speed: 150m/min
High Light:

415V Corrugated Roller

,

480V Corrugated Roller

,

Lower Flute Height Corrugated Rollers

Corrugated Roller for 320Q Single Facer

Features:

● High precision hard chrome steel A C B E F G flute corrugated roller

● Type: Hard Chrome & Tungsten Carbide

● Used for carton box corrugator machine-Single Facer



Description



1. Hard Chrome Type Corrugated Roller

● The surface is well treated by grind and plated chrome.

● Different type of flute according to user's request.



2. Tungsten Carbide Type Corrugated Roller

● Tungsten Carbide corrugated roller with lower flute height, and height of teeth keep for long time, save flute paper and glue capacity, make the paperboard stable quality. More important is the flute height almost not change during whole running life.

Characteristics

Flute

A

C

BC

B

D

E

F

G

Profile

UV

UV

UV

UV

UV

UV

UV

UV

Counts(300mm)

34±2

36±2

44±2

50±2

66±3

96±4

124±10

185±12

Height

4.6-4.9

3.6-3.9

3.0-3.4

2.6-2.9

1.9-2.1

1.1-1.8

0.7-0.8

0.5-0.65

Take Up Rate

1.51-1.59

1.44-1.51

1.42-1.49

1.36-1.42

1.40-1.41

1.29-1.39

1.22-1.26

1.20-1.25



380V / 415V / 440V / 480V Corrugated Roller For 320Q Fast Change Single Facer 0

380V / 415V / 440V / 480V Corrugated Roller For 320Q Fast Change Single Facer 1
