Product Details:
|
| Applicable Industries: | Corrugated Paper Factory | Place Of Origin: | Hebei, China |
|---|---|---|---|
| Production Capacity: | 150M/MIN | Thickness: | 9-10mm |
| Driven Type: | Electric | Key Selling Point: | High Productivity |
| Machinery Test Report: | Provided | Warranty: | 1 Year |
| Highlight: | 200mm Width Corrugator Belt,150M/MIN Corrugator Belt,Woven Fabric Corrugated Belt |
||
Features
● 5-layer woven fabric
● Composition of cotton, synthetic and IFDY
● High moisture absorption and release; Low noise and high speed
● Woven structure, anti-skidding

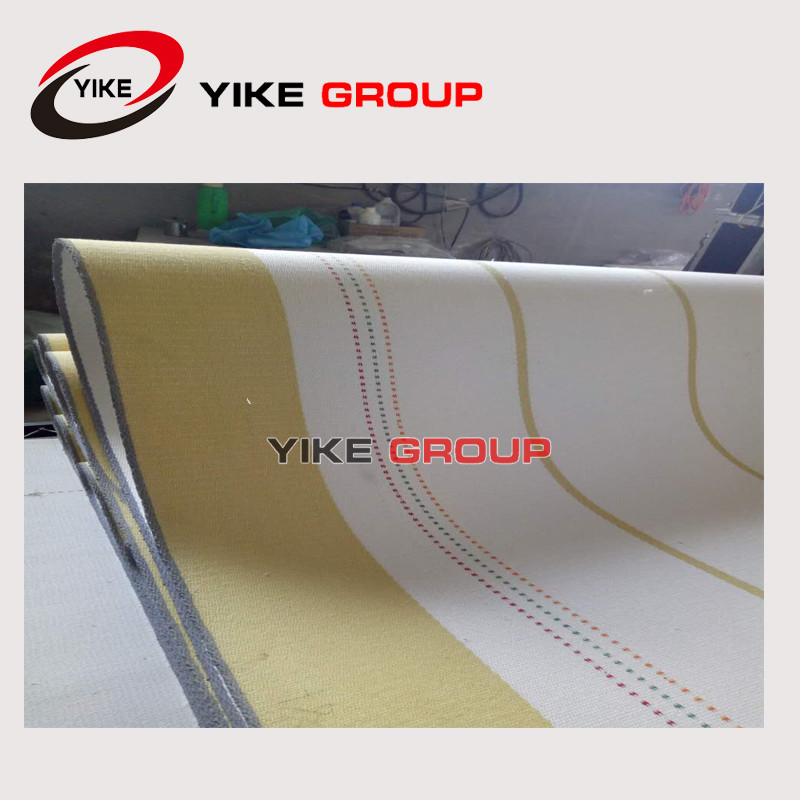

YK-K --- Reinforced Edges Kevlar armored on both edges
-----------------------------------------------------------
● Width: 1400-3200mm
● Speed: 100-300m/min
● Kevlar edge: 100-200mm
● Suitable for: Top and Bottom Belt
● Change cardboards width frequently , or hotter plates.
|
Model |
YK-K Kevlar Edge |
|
Material |
Synthetics |
|
Kavlar Edge |
200 mm inwoven aramid edge |
|
Thickness |
9-10 mm |
|
Width |
1400mm-2500mm |
|
Heat-resistance |
200℃ (Kevlar Edge part up to) 350℃ |
|
Break strength |
70 Mpa |
|
Coefficient of friction |
≥ 0.40µ |
|
Weight per unit |
(7.5±0.3)kg/㎡ |
|
Air-permeability 40mm water Column |
2.0m³/㎡ min |
