Product Details:
|
| Voltage: | According To Your Request | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Maintenance And Repair Service | Type: | Packaging Line,3&5&7 Ply High Speed Corrugated Cardboard Production Line |
| Automatic Grade: | Semi-Automatic | Driven Type: | Electric |
| Dimension(l*w*h): | According To Customer Request | Usage: | Making Corrugated Cardboard |
| High Light: | Corrugated Cardboard Machinery,Corrugated Paperboard Production Line |
||
Introduction:

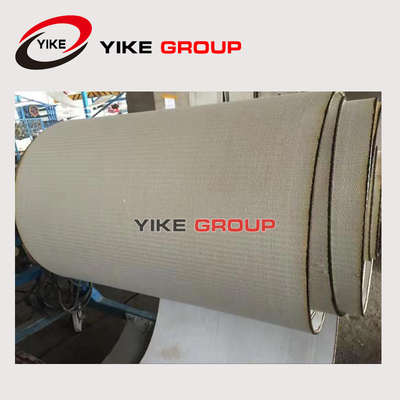

Corrugator belt also named Corrugated board conveyor belt.
Corrugator belt is for corrugated board production line and developed specifically for Double Facer. Corrugator belts consistently keep the fastest absorption & release of moisture, which secures high quality cardboards with less consumption of heat and energy, and higher speed is assured. Corrugator belt have been specially developed for the transport of board and optimization of the drying process ,they resist the stress continuously and achieve as long a life as possible.
|
Model |
YK-C Common edge |
|
Thickness |
9-10 mm |
|
Material |
Synthetics |
|
Width |
1400mm-2500mm |
|
Heat-resistance |
200℃ |
|
Tensile strength |
65Mpa |
|
Coefficient of friction |
≥ 0.40µ |
|
Weight per unit |
(7.5±0.3)kg/㎡ |
|
Air-permeability 40mm water Column |
2.0m³/㎡ min |
