Product Details:
|
| Place Of Origin: | Hebei, China | Driven Type: | Electric |
|---|---|---|---|
| Packaging Type: | Film, Case | Automatic Grade: | Automatic CorrugatedCardboard Production Line |
| Voltage: | 380V / 415V / 440 V / 480V | Dimension(L*W*H): | Customization |
| Highlight: | Corrugated Cardboard Machinery,Corrugated Paperboard Production Line |
||

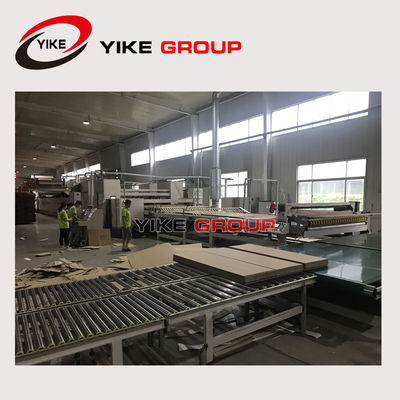

main technical parameters and requirements in production line
|
1 |
Effective width |
2200mm |
2 |
Design produce speed |
200m/min |
|||
|
3 |
Three layer work speed |
150-180m/min |
4 |
Five layer work speed |
120-150m/min |
|||
|
5 |
Seven layer work speed |
------------------- |
6 |
The highest change single speed |
100m/min |
|||
|
7 |
Longitudinal separation accuracy |
±1mm |
8 |
Cross-cutting precision |
±1mm |
|||
|
note |
Speed the above targets required to achieve:effective width2200mm,Comply with the following standards and ensure the paper's equipment condition 175 ℃ heating surface temperature. |
|||||||
|
|
Top paper index |
100g/㎡--180g/㎡ Ring crush index(N.m/g)≥8 (Water containing8-10%) |
||||||
|
|
Core paper index |
80g/㎡--160g/㎡ Ring crush index(N.m/g)≥5.5 (Water containing8-10%) |
||||||
|
|
In paper index |
90g/㎡--160g/㎡ Ring crush index(N.m/g)≥6 (Water containing8-10%) |
||||||
|
9 |
Flute combination |
|
||||||
|
10 |
Steam requirement |
The maximum pressure 16kg/cm2 |
Common pressure10-12kg/cm2 |
use4000kg/Hr |
||||
|
11 |
Electricity demand |
AC380V 50Hz 3PH |
Total power≈300KW |
Running Power≈250KW |
||||
|
12 |
Compressed air |
The maximum pressure 9kg/cm2 |
Common pressure4-8kg/cm2 |
Use 1m³/min |
||||
|
13 |
space |
≈Lmin91m*Wmin10m*Hmin5m(The actual drawing to provider to provide audited prevail) |
||||||
SF-360C1 fingerless type single facer
structural feature:
★Corrugated roller and pressure roller use high stability gasbag control system, also have air pressure control buffering function.
★Glue quantity control use electric adjust, glue isolation device electric, glue system can operate independently when main machine stop, to avoid glue use up.Glue tank is made of stainless steel.
★Movable type glue system, wash easily, maintenance and repair is more easy.
technical parameters:
1,effective width:2200mm 2,operate direction:left or right(Determined in accordance with the customer's facility)
3,design speed:200m/min 4,range of temperature:160—200℃
powered motor parameters:
1,main drive motor:30KW rated voltage:380V 50Hz continuous(S1)working system
2,suction motor:15KW rated voltage:380V 50Hz continuous(S1)working system
3,electric drive pusher:30W rated voltage:24V 50Hz short (S2)working system
4,adjust glue gap motor:200W*2 rated voltage:380V 50Hz short (S2)working system
5,glue pump motor: 2.2KW rated voltage:380V 50Hz continuous(S1)working system
6,frequency motor: 3.7KW rated voltage:380V 50Hz continuous(S1)working system
Mainly purchased parts, raw materials and origin:
|
Name of main parts |
Brands or place of origin |
material |
|
Wallboard and base |
Production by own |
HT200 |
|
Main drive motor |
Hebei hengshui |
30KW frenquency motor |
|
bearing |
HRB,ZWZ,LYC or zhejiang direction |
Bearing of corrugated roller and pressure roller adopt Timken production. |
|
Seat belt bearing |
Zhejiang wuhuan |
|
|
High pressure fan |
Shanghai yingfa |
|
|
cylinder |
Taiwan AirTac |
|
|
Solenoid valve |
Taiwan AirTac |
|
|
traps |
Beijing |
Ball float type |
|
contactor |
schneider |
|
|
Frenquency controller |
Taiwan delta |
|
|
PLC |
Taiwan delta |
|
