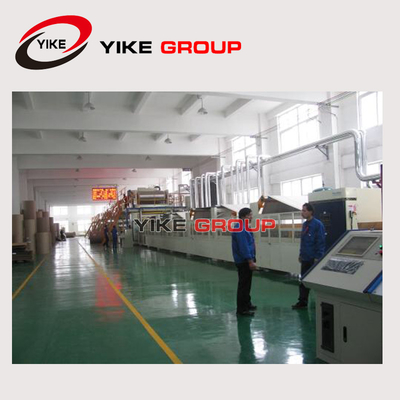

3 Ply Corrugated Carton Production Line With 320F Single Facer

3 Ply Corrugated Carton Production Line With 320F Single Facer
3 Ply Corrugated Carton Production Line With 320F Single Facer

Large Image :  3 Ply Corrugated Carton Production Line With 320F Single Facer

Product Details:
Place of Origin: CHINA
Brand Name: YIKE GROUP
Certification: ISO,CE
Model Number: YK-1600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set Corrugated Cardboard Production Line
Price: Negotiation
Packaging Details: Plastic Film,FCL
Delivery Time: 6 Months After Deposit Of Corrugated Cardboard Production Line
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Sets Per Month

3 Ply Corrugated Carton Production Line With 320F Single Facer

Description
Type: Packaging Line Automatic Grade: Automatic Corrugated Cardboard Production Line
Voltage: As Your Requirement Machinery Test Report: Provided
Color: As Your Requirement Reputation: Good Corrugated Cardboard Production Line
High Light:

Corrugated Cardboard Machinery

,

Corrugated Paperboard Production Line

3 Ply Corrugated Carton Production Line With 320F Single Facer

Mainly purchased parts, raw materials and origin:

Name of main parts Brands or place of origin material
wallboard Production by own HT250
Transmission box hebei QT450
Corrugated roller   Alloy steel corrugated
Rotation joint and Metal Hose Fujian quanzhou yujie
Main frequency motor Hebei hengshui yongshun motor factory
Reducer motor Taiwan chengbang
Bearings HRB,ZWZ,LYC
contacts France schneider
button Chint NP2 series
Air switch French Schneider
Position Sensor Japan OMRON
Frequency controller Taiwan delta
PLC Taiwan delta
Human Machine Interface Taiwan WEINVIEW or MCGS
Lose rubber pump Hebei botou

GM-20 double glue machine

Structural features:

★after quenched of the glue roller surface,the hole machining, surface grinding and doing balancing engraved anilox pit type, coating evenly, less consumption of plastic

★glue roller turns is controlled by the frequency motor,by inverter control ensures glue roller line speed synchronous machine with double machine,they can operate independently.

★electric adjustment display the glue amount.Automatic cycle for glue, glue avoid sedimentation, viscosity stability.

technical parameters:

1.temperature range of the preheater:150—200℃ 2,steam pressure:1.12—1.3Mpa

3,air source system:0.4—0.9Mpa

Mainly purchased parts, raw materials and origin:

Name of main parts Brands or place of origin material
Glue roller and Fixed paste roller Tiangang 45Quenching steel
Preheat roller Tiangang or jigang Q235B container board
bearing HRB,ZWZ,LYC
Sear belt bearing Zhejiang wuhuan
Pneumatic elements Zhejiang sonorCSM
contacts France Schneider
Air switch France Schneider
button Chint
Adjust glue reducer Taiwan chengbang
Main reducer Tanwan chengbang
Touch screen Taiwan WEINVIEW or MCGS
PLC and frequency machine Taiwan delta
belt German OPTIBELT
traps Beijing
Lose glue dispensing pumps Hebei botou


SM-F type double facer

Structural features:

★Heating plate surface by grinding treatment,hot plate width600mm,a total of 16 pieces heating plate,Cooling stereotypes Department 4 m.

Preheat board is made of contacts board, in accordance with the national standard of pressure container, enclosed the pressure container certificate and inspection certificate.

★hot plate internal for partition isolation structure,s-shaped flow of steam,Steam, water separation function significantly improves the utilization of steam.

3 Ply Corrugated Carton Production Line With 320F Single Facer 0

3 Ply Corrugated Carton Production Line With 320F Single Facer 1
