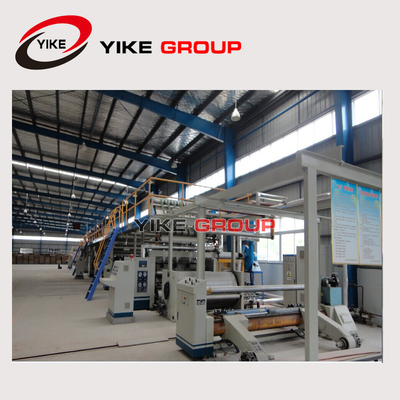

Product Details:
|
| Condition: | New Corrugated Cardboard Production Line | Place Of Origin: | Hebei, China |
|---|---|---|---|
| Usage: | Making Cardboard | Video Outgoing-inspection: | Provided |
| Warranty: | 1Year | Automatic Grade: | Automatic Corrugated Cardboard Production Line |
| High Light: | Corrugated Cardboard Machinery,Corrugated Paperboard Production Line |
||
main technical parameters and requirements in production line
| 1 | Effective width | 1800mm | 2 | Design produce speed | 150m/min | |||
| 3 | Three layer work speed | 100-140m/min | 4 | Five layer work speed | 90-130m/min | |||
| 5 | Seven layer work speed | ------------------- | 6 | The highest change single speed | 100m/min | |||
| 7 | Longitudinal separation accuracy | ±1mm | 8 | Cross-cutting precision | ±1mm | |||
|
note |
Speed the above targets required to achieve:effective width1800mm,Comply with the following standards and ensure the paper's equipment condition 175 ℃ heating surface temperature. | |||||||
| Top paper index | 100g/㎡--180g/㎡ Ring crush index(N.m/g)≥8 (Water containing8-10%) | |||||||
| Core paper index | 80g/㎡--160g/㎡ Ring crush index(N.m/g)≥5.5 (Water containing8-10%) | |||||||
| In paper index | 90g/㎡--160g/㎡ Ring crush index(N.m/g)≥6 (Water containing8-10%) | |||||||
| 9 | Flute combination | |||||||
| 10 | Steam requirement | The maximum pressure 16kg/cm2 | Common pressure10-12kg/cm2 | use4000kg/Hr | ||||
| 11 | Electricity demand | AC380V 50Hz 3PH | Total power≈220KW | Running Power≈150KW | ||||
| 12 | Compressed air | The maximum pressure 9kg/cm2 | Common pressure4-8kg/cm2 | use1m3/min | ||||
| 13 | space | ≈Lmin70m*Wmin10m*Hmin5m(The actual drawing to provider to provide audited prevail) | ||||||
|
Customer-owned section
|
|
1, steam heating system:proposal with 4000Kg / Hr of a steam boiler pressure:1.25Mpa steam pipeline.
|
|
2, air compressed machine,air pipeline,glue conveying pipe.
|
| 3, power supply,wires connected to the operation panel and line pipe. |
| 4, water sources,water pipelines,buckets and so on. |
| 5, Water, electricity, gas flush mounting civil foundation. |
|
6, Test with the base paper,corn starch (potato),Industrial use caustic soda,borax and other material.
|
| 7, Oil equipment,lubricating oil,hydraulic oil,lubricating grease. |
paper preheater
structural features:
★preheat roller accord the pressure container national standards,and enclose the pressure container certificates and inspection certificate.
★Each roller surface after grinding precision grinding and dealing with hard chrome plating, Surface friction is small, durable.
★electromotion adjustment angle, and angle can rotation adjustment the preheat area in the range of 360°
technical parameters:
1.Effective width:1800mm 2.diameter of preheat roller:￠900mm
3.angle adjustment range:360°rotation 4.angle shaft diameter:￠110mm×2
5.steam temperature:150-180℃ 6.steam pressure:0.8-1.3Mpa
7.equipment size:Lmx3.3*Wmx1.1*Hmx1.3 8.single weight:MAX2000Kg
9.working power:380V 50Hz 10.Motor power:250W short(S2)working system
Mainly purchased parts, raw materials and origin:
| Name of main parts | Brands or place of origin | material |
| Steam rotation joint | Quanzhou yujie | |
| preheater | Hangang or jigang | Q235Bpressure containerboard |
| bearing | HRB,ZWZ,LYC | |
| Seat belt bearing | Zhejiang wuhuan | |
| Reducer | Shandong dezhou | |
| contacts | Schneider | |
| Angle axis | GB seamless steel pipe￠110 | |
| traps | beijing | Inverted bucket |
