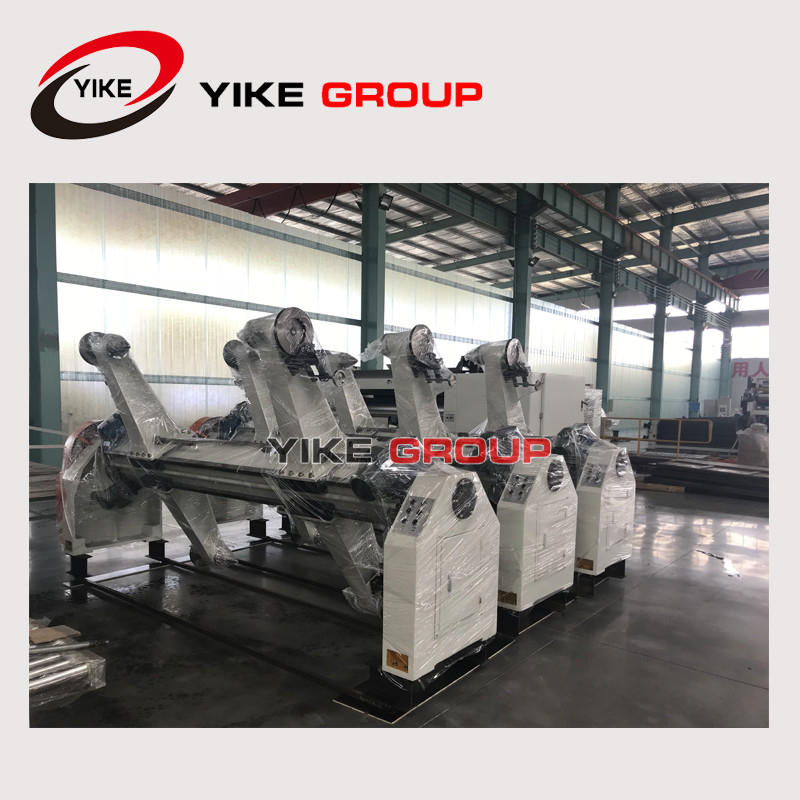

Electric Shaftless Mill Roll Stand

Electric Shaftless Mill Roll Stand
Electric Shaftless Mill Roll Stand

Large Image :  Electric Shaftless Mill Roll Stand

Product Details:
Place of Origin: CHINA
Brand Name: YIKE GROUP
Certification: ISO,CE
Model Number: YK-1600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set Mill Roll Stand
Price: Negotiation
Packaging Details: Plastic Film,FCL
Delivery Time: 30 Days After Deposit of Mill Roll Stand
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Sets Per Month

Electric Shaftless Mill Roll Stand

Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Online Support Automatic Grade: Semi Automatic Electric Mill Roll Stand
Usage: 3&5&7 Ply High Speed Corrugated Cardboard Production Line Condition: New Mill Roll Stand
Weight: 2T Packaging Type: Plastic Film
High Light:

Corrugated Cardboard Machinery

,

Corrugated Paperboard Production Line

Electric Shaftless Mill Roll Stand

Structural features:

★Symmetrical structure can also install two bundles of paper at the same time,Paper can be used for non-stop for a job;Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.

★each shaftless mill roll stand is equipped with two pieces of paper guide, two set of paper car;paper guide the use of channel 14 and the guide post weld,paper car adopt 10mmwelded stell,the length of track is 4500mm.

★manual dics brake,add screw following

★electric elements centralized control the electric elements,expand chuck.



technical parameters:

1,Backstands action mode:mechanical electric operation

2,the range of paper jams:maximum:1400mm minimum:600mm

3,the diameter of paper jams:maximum:¢1400mm minimum:¢400mm

4,Unilateral maximum load:maximum2000Kg

5,Powered motor parameters:

①Paper jams motor550W×4set 380V 50HZ short(S2)working standard

②lift motor 1.5Kw 380V 50HZ short(S2)working standard



Mainly purchased parts, raw materials and origin:

Name of main parts

Brands or place of origin

material

motor

Hebei Hengshui



reducer

Shandong Dezhou Jin bu huan



contacts

Chint or De li xi



chuck

Xusheng

3 inches, 4 inches shared

wallboard

Production own

HT200



Electric Shaftless Mill Roll Stand 0
