Product Details:
|
| Condition: | BHS / TCY / FOSBER / BRICQ Common Edge Corrugator Belts | Type: | Packaging Line, Corrugated Paperboard Production Line |
|---|---|---|---|
| Packaging Type: | Standard Packing | Material: | 5-layer Woven Fabric |
| Feature: | Woven Structure, Anti-skidding | Usage: | Corrugated Cardboard Production Line |
| Model: | YKC Common Edge Corrugator Belts | Name: | Common Edge Woven Type Corrugator Belts |
| High Light: | Certified CE Corrugator Belt,CE Anti Skidding Corrugated Belt,Woven Anti Skidding Corrugated Belt |
||

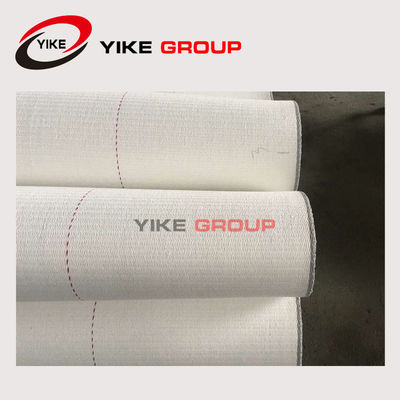

Common Edge Woven Type Corrugator Belts
Introduction
Common edge woven type Corrugator belt also named Corrugated board conveyor belt.
Common edge Corrugator belt is for the Lower speed of corrugated board production line.
Technical Specifications
| Type | YKC-Common edge Corrugator Belts |
| Thickness | (9±0.30)mm |
| Width | (1600-2800)mm |
| Heat-resistance | 240ºC |
| Tensile strength | 75Mpa |
| Coefficient of friction | ≥0.4u |
| Weight per unit | (7.5 ± 0.3)kg/m2 |
| Air-permeability | 2.2m3/m2min. |
Products Features
| Tensile strength | Warp direction (63-75) Mpa in dry mode |
| Heat resistance | Raw materials are polyester synthetic fiber, softening point≥260ºC |
| Moisture absorption | Quick absorption and emission of heat, therefore cardboard can be quickly dried |
| Seams | The Belt seam part is fabricated with imported steel fasteners and filled with rubber, flat surface, heat- resistance, fastness, and non-marking |
| Suitability | Suitable for BHS, JS, TCY, CHAMPION, YIKE GROUP, FOSBER corrugators, various cardboards, and some particular operation modes. |
| Geometrical dimension | Steady belt dimension, high weaving density, low stretching and contraction, and good contact between belt surface and cardboard. |
| Service life | As long as the same products are imported abroad. |
