Product Details:
|
| Condition: | BHS / TCY / YIKE GROUP / JS Kevlar Edge Corrugator Belts | Type: | Packaging Line, Corrugated Paperboard Production Line |
|---|---|---|---|
| Packaging Type: | Standard Packing | Material: | 5-layer Woven Fabric |
| Feature: | Woven Structure, Anti-skidding | Usage: | Automatic Corrugated Cardboard Line |
| Model: | YKK, YKC Kevlar Edge Corrugator Belts | Name: | Kevlar Edge Corrugated Board Conveyor Belt |
| Highlight: | 1600MM Corrugated Belts,Corrugated Belts 1600MM,Kevlar Edge Corrugated Belts |
||

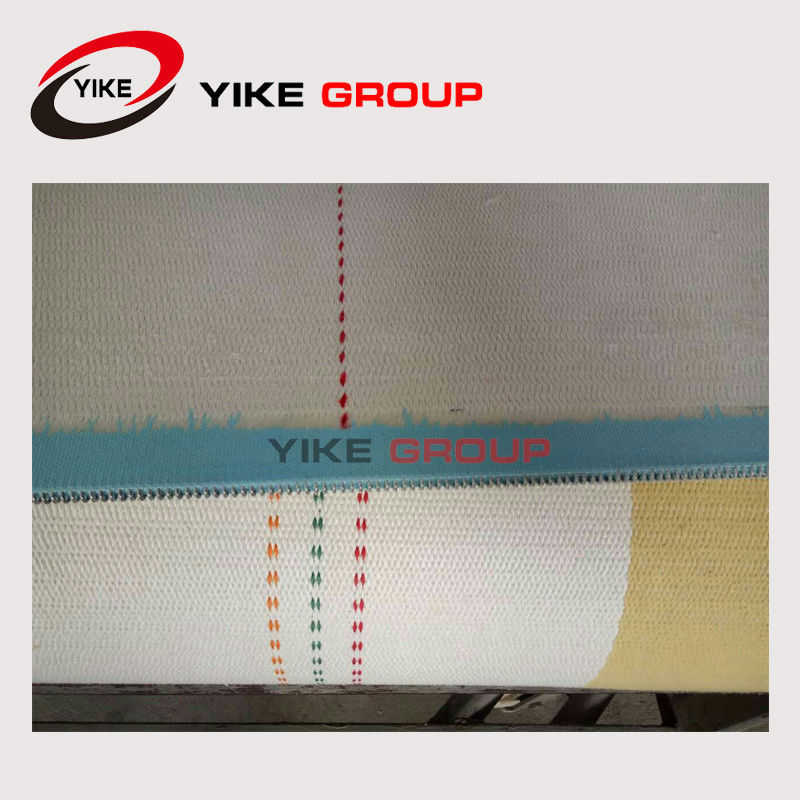

Kevlar Edge Corrugated Board Conveyor Belt YIKE GROUP
Kevlar edge is woven type Corrugator belts also named Corrugated board conveyor belt.
Kevlar edge Corrugator belts are for the top belt of the corrugated board production line.
Corrugator Belt Seam
1: USA Fastener clipper With Rubber
2: Hot Jaw Lacing
Technical Specifications
| Type | YKK-Kevlar Edge Corrugator Belts |
| Thickness | (9±0.30)mm |
| Width | (1600-2800)mm |
| Heat-resistance | Kevlar Edge part up to 350℃ |
| Tensile strength | 75Mpa |
| Coefficient of friction | ≥0.4u |
| Weight per unit | (7.5 ± 0.3)kg/m2 |
| Air-permeability | 2.2m3/m2min. |
Products Features
| Tensile strength | Warp direction (63-75) Mpa in dry mode |
| Heat resistance | Raw materials are polyester synthetic fiber, softening point≥260ºC |
| Moisture absorption | Quick absorption and emission of heat, therefore cardboard can be quickly dried |
| Seams | The Belt seam part is fabricated with imported steel fasteners and filled with rubber, flat surface, heat- resistance, fastness, and non-marking |
| Suitability | Suitable for BHS, JS, TCY, CHAMPION, YIKE GROUP, FOSBER corrugators, various cardboards, and some particular operation modes. |
| Geometrical dimension | Steady belt dimension, high weaving density, low stretching and contraction, and good contact between belt surface and cardboard. |
| Service life | As long as the same products are imported abroad. |
