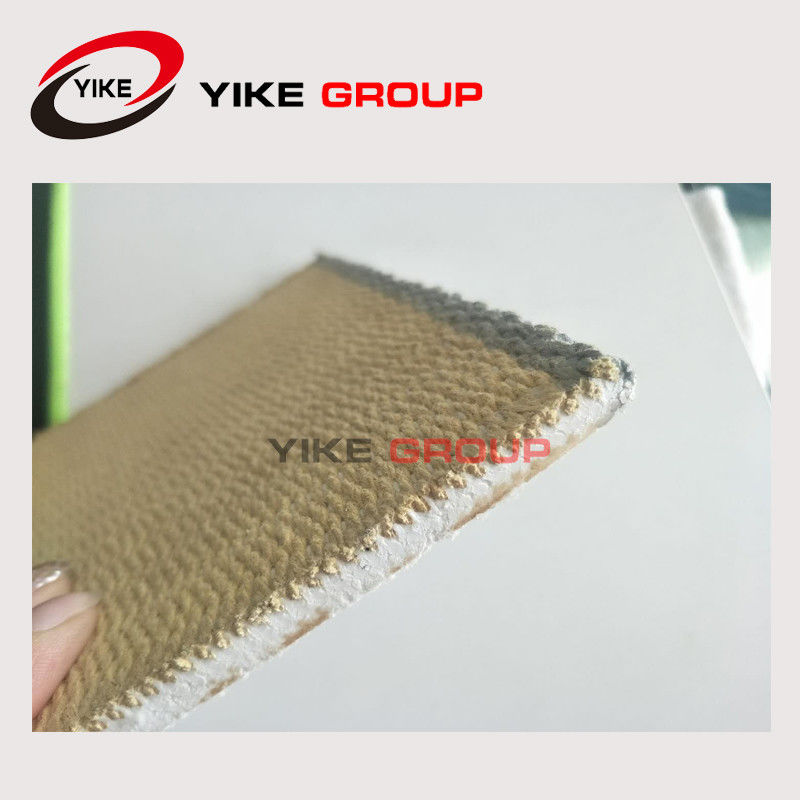

Automatic Corrugated Cardboard Line Kevlar Edge Corrugator Belt

Automatic Corrugated Cardboard Line Kevlar Edge Corrugator Belt
Automatic Corrugated Cardboard Line Kevlar Edge Corrugator Belt

Large Image :  Automatic Corrugated Cardboard Line Kevlar Edge Corrugator Belt

Product Details:
Place of Origin: China
Brand Name: YIKE GROUP
Certification: CE, ISO
Model Number: YK-1800,2200,2500,2800
Payment & Shipping Terms:
Minimum Order Quantity: 1set Kevlar Edge Corrugator Belt
Price: $5,000.00 /set
Packaging Details: Standard Packages
Delivery Time: 20 days after deposit
Payment Terms: T/T, Western Union
Supply Ability: 100,000 meters per Month

Automatic Corrugated Cardboard Line Kevlar Edge Corrugator Belt

Description
Condition: BHS / TCY / YIKE GROUP / JS Kevlar Edge Corrugator Belts Type: Packaging Line, Corrugated Paperboard Production Line
Packaging Type: Standard Packing Material: 5-layer Woven Fabric
Feature: Woven Structure, Anti-skidding Usage: Automatic Corrugated Cardboard Line
Model: YKK, YKC Kevlar Edge Corrugator Belts Name: Automatic Corrugated Cardboard Line Kevlar Edge Corrugator Belt
High Light:

Corrugated Cardboard Line Corrugator Belt

,

Automatic Corrugated Cardboard Line Corrugator Belt

,

Kevlar Edge Corrugator Belt





Automatic Corrugated Cardboard Line Kevlar Edge Corrugator Belt



Features



● 200mm kevlar edge

● Composition of cotton, synthetic and IFDY

● High moisture absorption and release; Low noise and high speed

● Woven structure, anti-skidding



Technical Specifications



Type YKK-Kevlar Edge Corrugator Belts
Thickness (9±0.30)mm
Width (1600-2800)mm
Heat-resistance Kevlar Edge part up to 350℃
Tensile strength 75Mpa
Coefficient of friction ≥0.4u
Weight per unit (7.5 ± 0.3)kg/m2
Air-permeability 2.2m3/m2min.





Products Features



Tensile strength Warp direction (63-75) Mpa in dry mode
Heat resistance Raw materials are polyester synthetic fiber, softening point≥260ºC
Moisture absorption Quick absorption and emission of heat, therefore cardboard can be quickly dried
Seams The Belt seam part is fabricated with imported steel fasteners and filled with rubber, flat surface, heat- resistance, fastness, and non-marking
Suitability Suitable for BHS, JS, TCY, CHAMPION, YIKE GROUP, FOSBER corrugators, various cardboards, and some particular operation modes.
Geometrical dimension Steady belt dimension, high weaving density, low stretching and contraction, and good contact between belt surface and cardboard.
Service life As long as the same products are imported abroad.
