YK-1600 Electric Mill Roll Stand Used For Corrugated Cardboard Production Line

CHINA YIKE GROUP CO.,LTD

Web: www.yikegroup.net

Email: Anna@yikegroup.net

WhatsApp: +86 13363699514

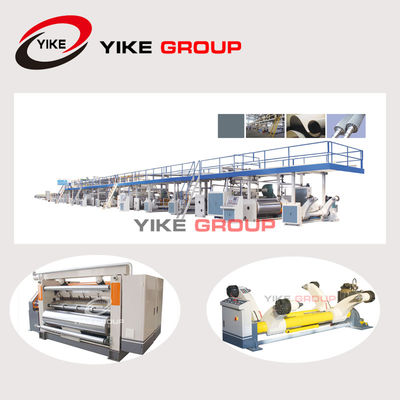

name : 2 Layer Corrugated Paperboard Single Facer Line For Carton Box Packaging

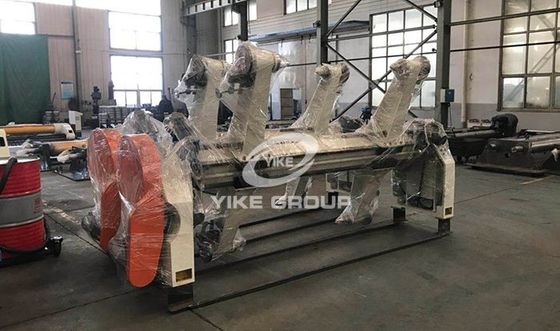

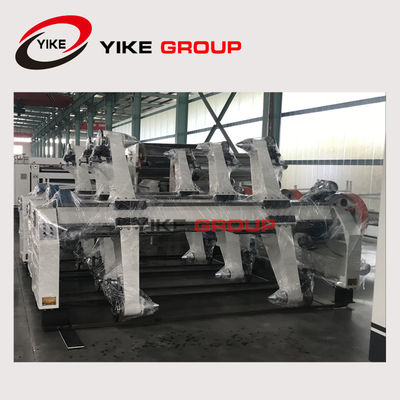

• ZJ-F shaftless mill roll stand(OPTION)

• Structural features:

1,Symmetrical structure can also install two bundles of paper at the same time,Paper can be used for non-stop for a job；Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.

2,each shaftless mill roll stand is equipped with two pieces of paper guide, two set of paper car；paper guide the use of channel 14 and the guide post weld,paper car adopt 10mmwelded stell,the length of track is 4500mm.

3,manual dics brake,add screw following

4,electric elements centralized control the electric elements,expand chuck.

• technical parameters:

1,Backstands action mode:mechanical electric operation

2,the range of paper jams:maximum:1600mm minimum:600mm

3,the diameter of paper jams:maximum:￠1400mm minimum:￠400mm

4,Unilateral maximum load:maximum2000Kg

5,Powered motor parameters:

①Paper jams motor550W×4set 380V 50HZ short(S2)working standard

②lift motor 1.5Kw 380V 50HZ short(S2)working standard

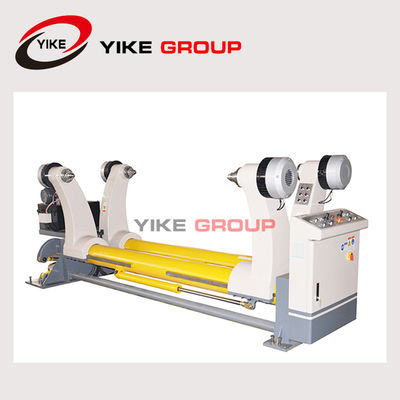

• ZJ-V5B hydraulic shaftless mill roll stand

• structural feature:

• Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.
• Brake adjustable adopts multipoint braking system.
• Every stand matched two sets paper car , and they can paper on the both sides at the same time.

• Technical parameters:

1,the range of clamping paper:MAX1600mm MIN1000mm 2,clamping diameters:MAX￠1500mm MIN￠350mm

3,main shaft diameter of paper holder:￠242mm 4,gas source work pressure(Mpa):0.4---0.8Mpa

5,equipment size:Lmx4.3*Wmx1.8*Hmx1.6 6,single weight:MAX4000Kg

• Hydraulic system parameters:

1.Work pressure(Mpa):16---18Mpa 2,lifting hydraulic cylinder:￠100×440mm

3,Clamping hydraulic cylinder:￠63×1300m 4,hydraulic station motor power:3KW --380V -- 50Hz

5,solenoid valve voltage:220V 50 Hz

• FAQ

1. Q: Are you a factory or trading company?
A: We are manufacturer.
2. Q: Where is your company located? How can I visit there?
A: Our company is located in Dongguang County,Cangzhou City,Hebei Province. We are near from Beijing/Tianjin city, only need 2/4 hours,We can arrange car to pick up from airport or hotel.
3. Q: Do you have any working machine for us to visit?
A: Yes,We have running machine near our factory also in our city, we can arrange visiting.
4. Q: How is the warranty of the machine?
A: Our machines have ONE YEAR WARRANTY. And the engineers available for overseas service.
5. Q:Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.
