2 Ply Semi Auto Single Facer Corrugation Machine

2 Ply Semi Auto Single Facer Corrugation Machine
2 Ply Semi Auto Single Facer Corrugation Machine 2 Ply Semi Auto Single Facer Corrugation Machine 2 Ply Semi Auto Single Facer Corrugation Machine 2 Ply Semi Auto Single Facer Corrugation Machine

Large Image :  2 Ply Semi Auto Single Facer Corrugation Machine

Product Details:
Place of Origin: China
Brand Name: YIKE GROUP
Certification: ISO,CE
Model Number: YK-1400
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set for Single Facer Line
Price: Negotiation
Packaging Details: Single Facer Line Packed by Plastic Film
Delivery Time: 3 Months For Corrugated Carton Box Machine
Payment Terms: L/C, T/T
Supply Ability: 50 Sets Single Facer Line Per Month

2 Ply Semi Auto Single Facer Corrugation Machine

Description
Item: Single Facer Corrugation Machine Size: 1400mm
Heating: Exchange Heating Speed: 40-60m/min
Voltage: 380V/50HZ Condition: New
After-sales Service Provided: Online Support Type: Packaging Line
High Light:

corrugated board making machine

,

single facer corrugated machine

YIKE GROUP Semi Auto Single Facer Corrugation Machine For 2 Ply Corrugated Sheets





Specification

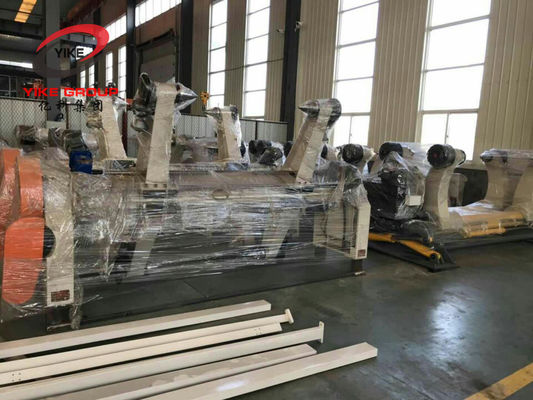

ZJ-F shaftless mill roll stand

  • Technical parameters:

1,Backstands action mode:mechanical electric operation

2,the range of paper jams:maximum:1600mm minimum:600mm

3,the diameter of paper jams:maximum:¢1400mm minimum:¢400mm

4,Unilateral maximum load:maximum2000Kg

5,Powered motor parameters:

①Paper jams motor550W×4set 380V 50HZ short(S2)working standard

②lift motor 1.5Kw 380V 50HZ short(S2)working standard





SF-280S fingerless type single facer



  • Structural features:
  • Electric heating model with 18 heating tube (If steam hearting, ignore this item)
  • Adopt vacuum suction structure, with high pressure strong blower. Suction with silencer.
  • base and wallboard cast iron wall,Wallboard thickness130mm.universal Joints.
  •
  • Regular technical parameters:

1,Effective width:1800mm

2,Operation direction:left or right(determined in accordance with customer plant)

3,Design speed:100m/min working speed:40m/min

4,Temperature range:200—260℃

5,Corrugated flute:(UV type or UVV type)

  • Roller diameters parameters:

1,diameter of corrugated roller: ¢280mm

2,diameter of pressure roller: ¢284mm

3,diameter of glue roller: ¢216mm

4,diameter of preheat roller: ¢320mm

  • Powered motor parameters:

1,main drive motor:7.5Kw rated voltage:380V 50Hz Continuous (S1) working standard

2,suction motor:7.5Kw rated voltage:380V 50Hz Continuous (S1) working standard

  • Main purchased parts,materials and place of origin:
Name of main parts Brands or place of origin Material and type
Wall and Pedestals Production own HT200
Rotary joints and metal hoses Shan dong teng zhou luguanqiu
Main drive motor Hebei Hengshui 7.5Kwspeed motor
bearing HRB,ZWZ,CYC or Zhengjiang wanxiang
Seat belt bearing Zhengjiang five rings
High pressure air Shanghai Yingfa
cylinder Zhengjiang Sanzheng
contacts Chint or de li xi





NC-1600 COMPUTER SHEET CUTTER MACHINE



  • General technical parameters
  • Working width:1600mm
  • Mechanical speed:60m/min
  • Minimum cut length:300mm
  • Maximum cutting length:9000mm
  • Cutting accuracy: uniform speed ±1.5mm



  • Power motor and electrical parameters:
  • Main drive motor power:3KW
  • Full AC Synchronous Servo Control
  • Papermaking motor power:3KW(Frequency)



Rotary paper receiving machine



  • The machine receiving the highest speed 70m / min.
  • The maximum length of the machine to receive paper 1600mm.
  • The machine can achieve automatic points without stopping, automatic stacking, automatic sub-stacker.
  • The maximum stacking height of the local stacking unit is 100mm.
  • The automatic stacking machine covers an area of small, and save manpower, is the best choice for low-speed machine.
