Product Details:
|
| Other Name: | Fingless Single Facer | Diameter: | 280mm |
|---|---|---|---|
| Parts: | Corrugated Roller, Pressure Roller | Material: | Hard Chrome |
| Width: | 1400-1800mm | Type: | 280S |
| High Light: | corrugated board making machine,corrugated paperboard production line |
||

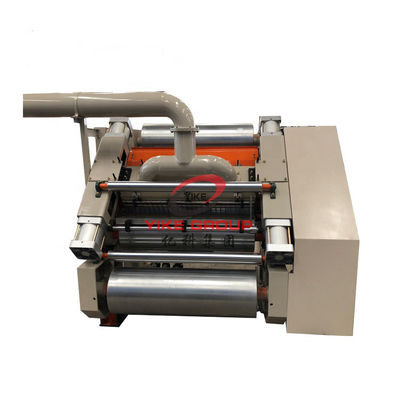

Vacuum adsorption single facer for making box, corrugated cardboard production line single facer
Single facer is design for producing single-face corrugated paper
1.Corrugated Rollers:
|
Diameter |
Φ280mm
|
|
Material |
48CrMo high quality alloy steel, rigidity HRC55°-58° |
|
Processing Way |
After quenching and tempering,The surface of upper-lower roller is ground, then plating chrome or tungsten carbide |
|
Control Way |
Cylinder control Lifting Up-down |
|
Driving Way |
Frequency motor |
|
Way of Transmit cardboard |
Vacuum Cover adsorbable style, Height pressure fan withnoise deadening device |
|
Way of Bearing lubricating |
High temperature grease |
|
Flute Type |
(U/V) ACBEF(According to customers requirements) |
2.Press Rollers:
|
Diameter |
Φ284mm
|
|
Material |
Carbon steel (MS)45# |
|
Processing Way |
After quenching and tempering,The surface of roller isground, then plating chrome |
|
Control Way |
Cylinder control Lifting Up-down |
|
Way of Bearing lubricating |
High temperature grease |
3.Glue Roller:
|
Diameter |
Φ216mm
|
|
Material |
Carbon steel (MS)45# |
|
Processing Way |
Surface is ground,inscribed with 25 lines of pitted mesh,thenplated chrome |
|
Driving Way |
Frequency motor |
|
Way of Bearing lubricating |
High temperature grease |
|
Glue Supply |
Autamatic glue circulating system(storage tank+glue pump),electric supply glue |
4.Preheater Rollers:
|
Diameter
|
Φ320mm |
|
Material
|
seamless steel tube |
|
Processing Way |
After quenching and tempering,The surface of roller isground, then plating chrome |
| Working Width | 2200mm |
| Design Speed | 100m/min |
| Working Speed | 80m/min |
| Pneumatic Source Pressure(Mpa) | 0.4---0.8Mpa |
| Main Drive Motor | 7.5KW |
| Suction Motor | 7.5KW |
| Components Name | Brand |
| Corrugated roller | JiYuan |
| Belower | Shanghai |
| Pneumatic system | Zhejiang Sonor CSM |
| Main bearing | NSK |
| Main electrical | Schneider |
| Button | Schneider |
| Main motor | Heibei Yongshun |
| Inverter | Taiwan |
| Touch Screen | Taiwan |
