360C Fingerless Single Facer Machine , Corrugated Paperboard Production Line

Large Image : 360C Fingerless Single Facer Machine , Corrugated Paperboard Production Line

Product Details:

Place of Origin:	China
Brand Name:	YIKE GROUP
Certification:	ISO,CE
Model Number:	YX-360C

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set for 360C Fingerless Single Facer
Price:	Negotiation
Packaging Details:	Single Facer Packages by Plastic Film
Delivery Time:	3 Months For 360C Fingerless Single Facer
Payment Terms:	L/C, T/T
Supply Ability:	50 Sets 360C Fingerless Single Facer Per Month

Contact Now

360C Fingerless Single Facer Machine , Corrugated Paperboard Production Line

Description

Item:	Corrugated Cardboard Production Line	Design Speed:	200m/min
Roller Material:	48CrMo, HRC HV1200	Size Available:	1400-2200mm
Usage:	3/5/7 Ply Production Line	Gluer Device:	Manual Or Electric Device
Roller Size:	360mm	Name:	360C Fingerless Single Facer
High Light:	corrugated board making machine , corrugated paperboard production line

Paperboard Corrugation 360C Single Facer For Corrugated Carton Production Line

I YK-360C High Speed Single Facer

High Design Speed: 200m/min
Available Width: 1400-2200mm
Manual or Electric Separation Device

II Characteristics

Drive the gearbox to lubricate the oil reduce the noise, the univeral joint drive and isolate the power source.
Upper roller, pressure roller and rubber roller lift, all with pneumatic control.
The roller and pressure roller bearings are lubricated with high temperature resistance grease.
The glue is used for adhesive.
The upper and lower corrugated roller adopts 48CrMo high quality alloy steel, after heat treatment, hardness is about HV1200, surface carbonized tungsten or hard chromium plating treating.

III More Single Facer For High Speed Corrugated Production Line

YX-320C-150m/min Fingerless Adsorption Single Facer
YX-360C-200m/min Fingerless Adsorption Single Facer
YX-320E-180m/min Cassette Single Facer
YX-360E-200m/min Cassette Single Facer

MODEL NO.	SPEED	WORKING WIDTH	ROLLAR φ
SF-320C	150m/min	1400mm-2200mm	320mm
SF-360C	200m/min	1400mm-2200mm	360mm
SF-320E	180m/min	1400mm-2200mm	320mm
SF-360E	200m/min	1400mm-2200mm	360mm
SF-405C	220m/min	1400mm-2500mm	405mm
SF-405E	250m/min	1400mm-2500mm	405mm

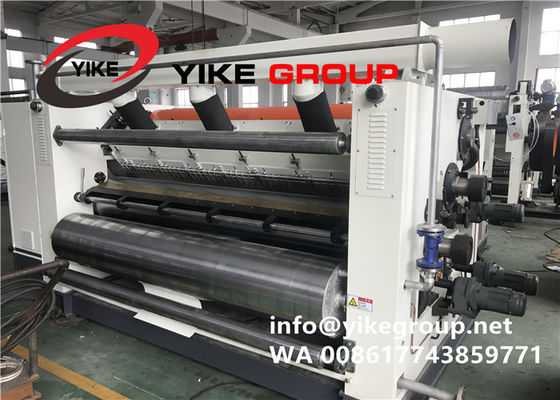

V. 100% Real Photos

360C Fingerless Single Facer Machine , Corrugated Paperboard Production Line 0
