Product Details:
|
| Item: | Corrugated Carton Box Machine | Design Speed: | 100m/min |
|---|---|---|---|
| Working Speed: | 40-60m/min | Size Available: | 1400-1800mm |
| Usage: | 2 Ply Single Facer Line | Application: | Corrugated Carton Line |
| Roller: | 280mm | Warranty: | One Year |
| Highlight: | steam carton box machine,steam corrugated box making machine,steam heating corrugated box making machine |
||
Steam Heating 280S Fingerless Adsorption Single Facer Corrugated Carton Box Machine
I Single Facer Structure
The single-facer machine consists of a roll holder and a single-face corrugating machine. The corrugated medium is first heated, then the corrugated roll is used to make the desired flute type, and finally the rubber is coated at the peak (starch adhesive) with one side. Corrugated paper is bonded to form a single-faced corrugated board. The heating method of the core paper is steam heating, electric heating and oil heating.
Single-face machining flute can be customized.
II The Main Components
The main components of the single-facer machine are: base paper support, corrugating roller, pressure roller, preheating roller, glue application device, pneumatic device, paper guide sheet and vacuum adsorption device.
III Single Facer Heating Method
IV YX-280S Single Facer, Steam Heating
V Specification
| Width of Paper | 1400,1600,1800,2200mm |
| Diameter of Corrugated Roller | Φ280mm |
| Material of upper-lower Ccorrugating roller | 48CrMo, alloy steel, rigidity HRC58°-60° |
| Processing | The surface of upper-lower roller is whetted and plating chrome, annealing |
| Style of Transmit cardboard | Vacuum adsorbable style, with wind control Adjusting |
| Transmission | Gimbal Drive Type |
| Style of Control Roller | Pneumatic control the upper roller, pressure rollerand glue roller |
| Lubrication | Anti-high temperature lube to lubricate the Corrugated Roller and Press Roller’s gears |
| Power | 11 kw |
| About gear | Close style gear transmission oiliness lubricated, long use life of gear |
| Style of adjusting glue quantity | Electrically adjust the figure show quantity or manually adjust |
|
Glue roller and upper roller are designed to groups guideway slipage, load-unload is convenient and swift |
|
VI Flute Type:
Common flute sizes are “A”, “B”, “C”, “E”, “F” Flute.
| Flute Designation | Flutes /Linear Foot | Flute Height | Qualities | Common Uses |
| A | 36 | 1/4" | Excellent compression and cushioning; good stacking strength | Packaging fragile items; used for its structural strength |
| B | 49 | 1/8" | Excellent crush resistance and printing surface; good puncture resistance | Inner packaging, like pads and partitions |
| C | 41 | 11/64" | Good printing surface, compression, and crush resistance | Most common flute used for shipping boxes; used for its structural strength; used for glass, furniture, food, etc. |
| E | 90 | 1/16" | Excellent crush resistance; exceptional printing surface; thin construciton helps to reduce storage space | Consumer goods packaging, like boxes for cosmetics, glass, and ceramics; used for displays, ballot boxes, and pizza boxes |
| F | 128 | 1/32" | Outstanding printing surface; excellent crush resistance; thin construction allows for stiffer boxes with less fiber | Consumer goods packaging, like boxes for cosmetics, jewelry, and shoes; used for software packaging and fastfood clamshells |

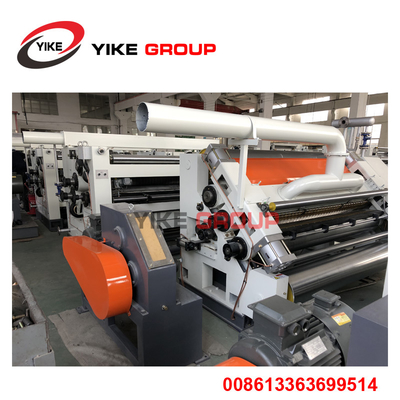

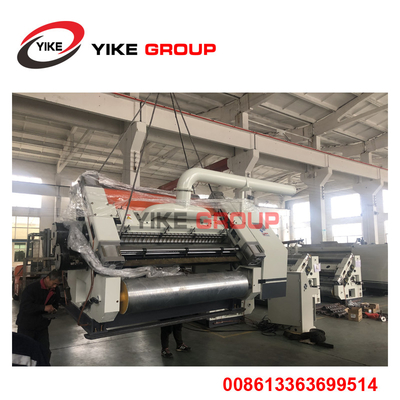

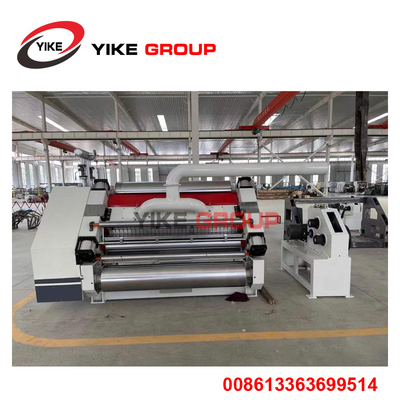

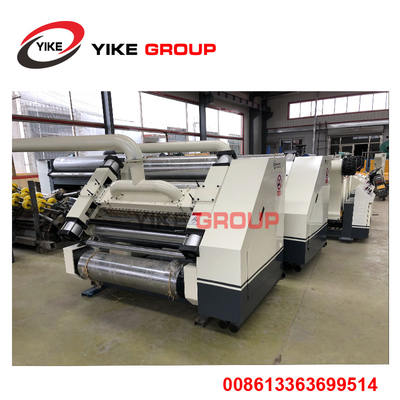

VII. 100% Real Photo
Gluer Adjustment
