Corrugated Conveyor Belt For Corrugated Cardboard Production Line

Corrugated Conveyor Belt For Corrugated Cardboard Production Line
Corrugated Conveyor Belt For Corrugated Cardboard Production Line Corrugated Conveyor Belt For Corrugated Cardboard Production Line Corrugated Conveyor Belt For Corrugated Cardboard Production Line Corrugated Conveyor Belt For Corrugated Cardboard Production Line

Large Image :  Corrugated Conveyor Belt For Corrugated Cardboard Production Line

Product Details:
Place of Origin: China
Brand Name: YIKE GROUP
Certification: ISO,CE
Model Number: YK-KSD, YK-HSD
Payment & Shipping Terms:
Minimum Order Quantity: 30 M2 for Production Line
Packaging Details: Packages by Wooden Box
Delivery Time: 3 Months
Payment Terms: L/C, T/T
Supply Ability: 5000 Meters per Month

Corrugated Conveyor Belt For Corrugated Cardboard Production Line

Description
Name: Corrugator Belt Type: Belt With Kevlar Edge
Used For: Carton Production Line Application: Carton Box Corrugator Machine
Speed: 100-300m/min Suitable For: BHS,FOSBER, TCY,CHAMMPION AND SO ON
High Light:

corrugator machine parts

,

woven conveyor belt

Corrugated Conveyor Belt For Corrugated Cardboard Production Line


Introduction


Corrugator belt also named Corrugated board conveyor belt.
Corrugator belt is for corrugated board production line and developed specifically for Double Facer. Corrugator belts consistently keep the fastest absorption & release of moisture, which secures high quality cardboards with less consumption of heat and energy, and higher speed is assured. Corrugator belt have been specially developed for the transport of board and optimization of the drying process ,they resist the stress continuously and achieve as long a life as possible.


Features


·5-layer woven fabric
·Composition of cotton, synthetic and IFDY
·High moisture absorption and release; Low noise and high speed
·Woven structure, anti-skidding

Type


Normal High speed corrugator belt & High speed corrugator belt with Kevlar edge

1) YK-KSD --- Reinforced Edges Kevlar armored on both edges
-----------------------------------------------------------
Width: 1400-3200mm
Speed: 100-300m/min
Kevlar edge: 100-200mm
Suitable for: Top and Bottom Belt
Change cardboards width frequently , or hotter plates.

2) YK-GSD --- High Speed Corrugator Belt
-----------------------------------------------------------
Fast absorb & release moisture, durable.
Universal application.

Specification



Corrugator Belt
Model YK-KSD YK-HSD
Material 100% PET SYNTHETICS
Speed 100-300m/min
Weight  7.6+0.2kg/m2
Thicknss 8-9mm
Width 1400-3200mm
Heat resistance 240℃(Kevlar 350℃) 240
Tension 65MPA
Air.permeability 2.0M3/M2MIN
Min.winding radius R70(mm)
Life 40-50 MILLION METER




Application


Used for 2/3/5/7 ply Automatic corrugated cardboard production line, packaging industry. If you want to see more information about CORRUGATOR BELT, please here. It will provide more details about corrugator belt.



Photos

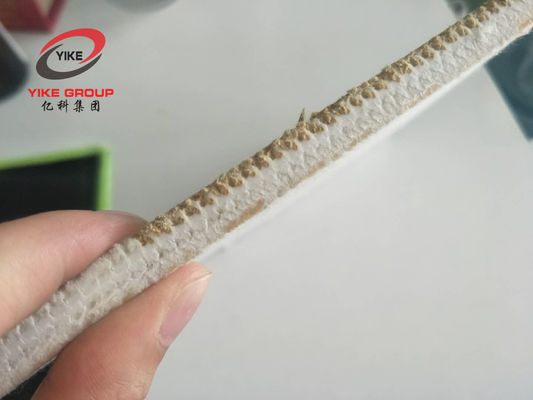

Corrugated Conveyor Belt For Corrugated Cardboard Production Line 0
