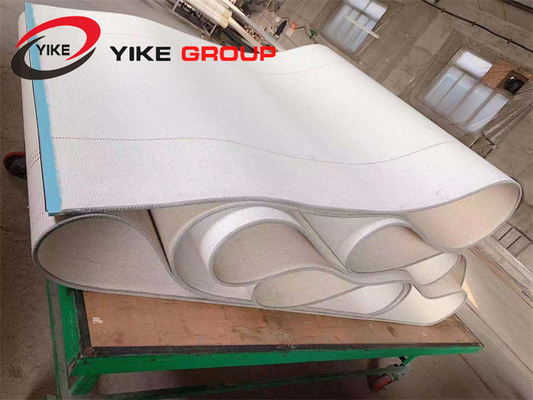

Woven Type Corrugator Belts With Flocking Seam For Double Facer Machine

Woven Type Corrugator Belts With Flocking Seam For Double Facer Machine
Woven Type Corrugator Belts With Flocking Seam For Double Facer Machine Woven Type Corrugator Belts With Flocking Seam For Double Facer Machine

Large Image :  Woven Type Corrugator Belts With Flocking Seam For Double Facer Machine

Product Details:
Place of Origin: China
Brand Name: YIKE GROUP
Certification: CE, ISO
Model Number: YK-1600
Payment & Shipping Terms:
Minimum Order Quantity: 1set Corrugator Belt
Price: Negotiation
Packaging Details: Standard Packages
Delivery Time: 20 days after deposit
Payment Terms: T/T
Supply Ability: 100,000 meters per Month

Woven Type Corrugator Belts With Flocking Seam For Double Facer Machine

Description
Type: Woven Type Conveyor Belt Material: 100% Woven
Standard: Standard Corrugator Belt Thickness: 9mm
Product Name: Corrugated Cardboard Belt Name: Corrugator Belt Used For Automatic Corrugated Cardboard Line
Condition: New Corrugator Belt Width: 1400-2500mm
Packaging Type: Standard Packing Application: Corrugated Board Production Line
High Light:

woven type corrugator belts

,

double facer corrugated machine corrugator belts

,

double facer machine woven corrugator belt



Woven Type Corrugator Belts With Flocking Seam For Double Facer Machine



1. Introduction

Corrugator belt also named Corrugated board conveyor belt.

Corrugator belt is for corrugated board production line and developed specifically for Double Facer.



2. Corrugator Belt Seam

1: USA Fastener clipper With Rubber

2: Hot Jaw Lacing



3.Technical Specifications

Type YKC-Common edge YKK-Kevlar edge
Thickness (9±0.30)mm
Width (1600-2800)mm
Heat-resistance 240ºC 240℃ (Kevlar Edge part up to) 350℃
Tensile strength 75Mpa
Coefficient of friction ≥0.4u
Weight per unit (7.5 ± 0.3)kg/m2
Air-permeability 2.2m3/m2min.



4. Products Features

Tensile strength Warp direction (63-75) Mpa in dry mode
Heat resistance Raw materials are polyester synthetic fiber, softening point≥260ºC
Moisture absorption Quick absorption and emission of heat, therefore cardboard can be quickly dried
Seams Belt seam part is fabricated with imported steel fasteners and filled with rubber, flat surface, heat- resistance, fastness and non-marking
Suitability Suitable for BHS, JS, TCY, CHAMPION, YIKE GROUP, FOSBER corrugators, various cardboards and some particular operation mode.
Geometrical dimension Steady belt dimension, high weaving density, low stretching and contraction and good contact between belt surface and cardboard.
Service life As long as the same products imported abroad.

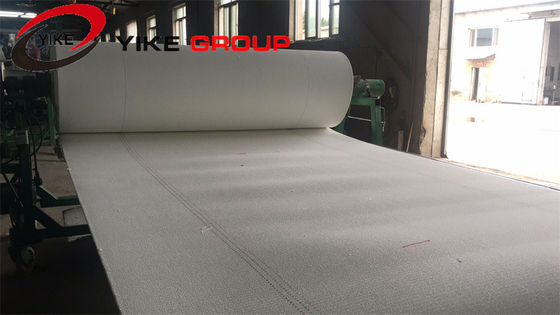

Woven Type Corrugator Belts With Flocking Seam For Double Facer Machine 0



Woven Type Corrugator Belts With Flocking Seam For Double Facer Machine 1



Woven Type Corrugator Belts With Flocking Seam For Double Facer Machine 2
