Product Details:
|
| Name: | Corrugator Belt | Type: | Belt With Kevlar Edge |
|---|---|---|---|
| Size: | Customized | Used For: | Carton Production Line |
| Packages: | Wooden Box | Application: | Carton Box Corrugator Machine |
| Speed: | 100-300m/min | Suitable For: | Top Belt |
| Highlight: | corrugator machine parts,woven conveyor belt |
||
CHINA YIKE GROUP CO.,LTD
WEB: www.yikegroup.net
Email: info@yikegroup.net
WhatsApp: +86 17743859771

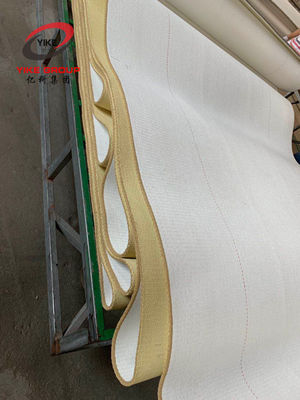

Corrugated Conveyor Belt Size Customized 100-300m/Min Speed With Kevlar Edge
Introduction
Corrugator belt also named Corrugated board conveyor belt.
Corrugator belt is for corrugated board production line and developed specifically for Double Facer. Corrugator belts consistently keep the fastest absorption & release of moisture, which secures high quality cardboards with less consumption of heat and energy, and higher speed is assured. Corrugator belt have been specially developed for the transport of board and optimization of the drying process ,they resist the stress continuously and achieve as long a life as possible.
Features
·5-layer woven fabric
·Composition of cotton, synthetic and IFDY
·High moisture absorption and release; Low noise and high speed
·Woven structure, anti-skidding
Type
Normal High speed corrugator belt & High speed corrugator belt with Kevlar edge
1) YK-KSD --- Reinforced Edges Kevlar armored on both edges
-----------------------------------------------------------
Width: 1400-3200mm
Speed: 100-300m/min
Kevlar edge: 100-200mm
Suitable for: Top and Bottom Belt
Change cardboards width frequently , or hotter plates.
2) YK-GSD --- High Speed Corrugator Belt
-----------------------------------------------------------
Fast absorb & release moisture, durable.
Universal application.
Specification
| Corrugator Belt | ||
| Model | YK-KSD | YK-HSD |
| Material | 100% PET SYNTHETICS | |
| Speed | 100-300m/min | |
| Weight | 7.6+0.2kg/m2 | |
| Thicknss | 8-9mm | |
| Width | 1400-3200mm | |
| Heat resistance | 240℃(Kevlar 350℃) | 240 |
| Tension | 65MPA | |
| Air.permeability | 2.0M3/M2MIN | |
| Min.winding radius | R70(mm) | |
| Life | 40-50 MILLION METER | |
Application
Used for 2/3/5/7 ply Automatic corrugated cardboard production line, packaging industry. If you want to see more information about CORRUGATOR BELT, please here. It will provide more details about corrugator belt.
Accessories
Roller Lacer, Fasteners and After sales service for Corrugator belts lacing
Roller Lacers Available in width:
12’’ (300mm) 24’’ (600mm) 36” (900mm)48” (1200mm) 60” (1500mm)
100% Real Photos
