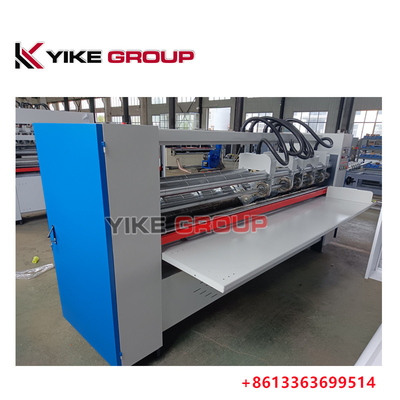

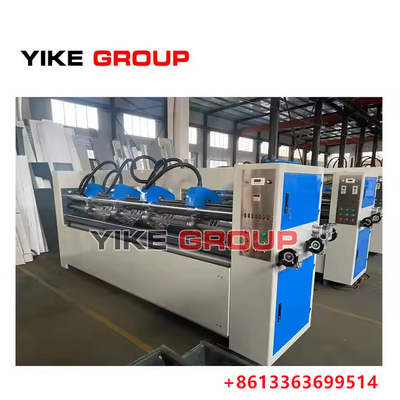

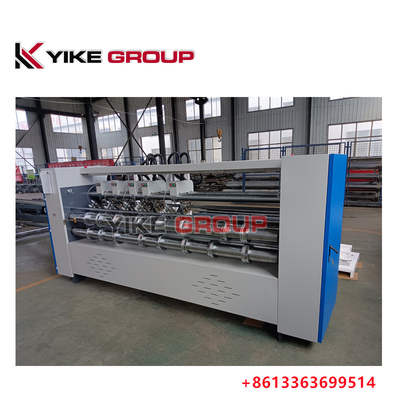

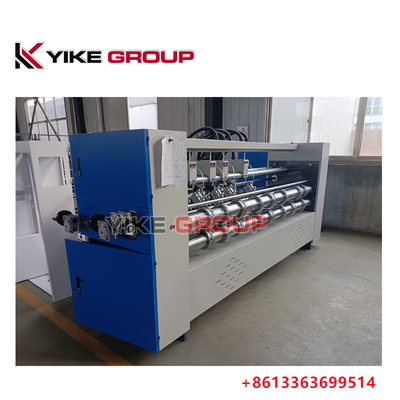

YIKE GROUP 3000MM 4/6 Manual Creaser Scorer Thin Blade scorer Machine With Electric Knives Adjust

YIKE GROUP 3000MM 4/6 Manual Creaser Scorer Thin Blade scorer Machine With Electric Knives Adjust
YIKE GROUP 3000MM 4/6 Manual Creaser Scorer Thin Blade scorer Machine With Electric Knives Adjust YIKE GROUP 3000MM 4/6 Manual Creaser Scorer Thin Blade scorer Machine With Electric Knives Adjust YIKE GROUP 3000MM 4/6 Manual Creaser Scorer Thin Blade scorer Machine With Electric Knives Adjust YIKE GROUP 3000MM 4/6 Manual Creaser Scorer Thin Blade scorer Machine With Electric Knives Adjust YIKE GROUP 3000MM 4/6 Manual Creaser Scorer Thin Blade scorer Machine With Electric Knives Adjust YIKE GROUP 3000MM 4/6 Manual Creaser Scorer Thin Blade scorer Machine With Electric Knives Adjust

Large Image :  YIKE GROUP 3000MM 4/6 Manual Creaser Scorer Thin Blade scorer Machine With Electric Knives Adjust

Product Details:
Place of Origin: China
Brand Name: YIKE GROUP
Certification: CE, ISO
Model Number: YK-3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 4500
Packaging Details: Plastic Film
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets per Month
Contact Now

YIKE GROUP 3000MM 4/6 Manual Creaser Scorer Thin Blade scorer Machine With Electric Knives Adjust

Description
Type: YK-3000 Thin Blade Slitter Scorer Machine Suitable For: Cardboard Carton Box Factory Manufacturer
Key Selling Points: Thin Blade Slitter Scorer Cutting Creasing Machine Application: Machinery & Hardware
QTY Of Blade/scorer: 5/6/7 Keywords: Thin Blade Slitter Scorer Machine
Core Components: Gearbox, Gear, Bearing, Engine, Motor, PLC Packaging Type: Corrugated Paperboard Making
After-sales Service Provided: Engineer Service Overseas Slitting Part: High Quality Tungsten Steel Blade

YIKE GROUP 3000MM 4/6 Manual Creaser Scorer Thin Blade scorer Machine

With Electric Knives Adjust



YIKE GROUP 3000MM 4/6 Manual Creaser Scorer Thin Blade scorer Machine With Electric Knives Adjust 0





TECHNICAL INDEX
Model
YK-1800
YK-2200
YK-2500
YK-2800
YK-3000
Max.slitting size (mm)
1800
2000
2300
2600
2800
Min .slitting size(mm)
120
120
120
120
120
Min.slitting length(mm)
260
260
260
260
260
Min.scorer width (mm)
30
30
30
30
30
Scorer height(mm)
0-12
0-12
0-12
0-12
0-12
Blade size(mm)
190*105
190*105
190*105
190*105
190*105
Blade/scorer
4/6,5/8,6/10,7/12,8/14
Machine dimension(mm)
2630*770*1350
2830*770*1350
3130*770*1350
3430*770*1350
3630*770*1350
Power (KW)
3
3
4
4
5.5



YIKE GROUP 3000MM 4/6 Manual Creaser Scorer Thin Blade scorer Machine With Electric Knives Adjust 1



Structural feature

  • Delta inverter
  • Manual Adjustment Blade

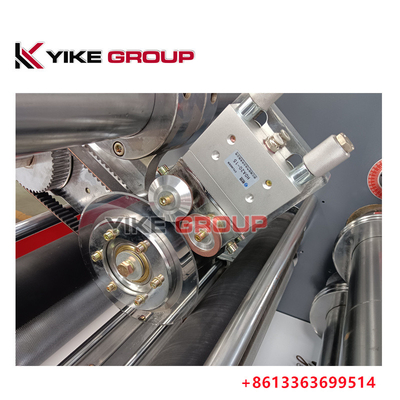

  • Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
  • Adopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard machining to 260mm.
  • 8 shafts with front-scoring feeding,back double rubber rollers for paper leading, running more steady.
  • Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
  • Grinding part: adopt manual type grinding , it could be grinding when working, improve work efficiency. Option: blade pneumatic grinding.
  • Double guide smooth shafts, operate stably; inlay PU ring seal, clean and dust-proof.

Specification



Item
Thin Blade Slitting Scorering Machine
Warranty
1 Year
Applicable Industries
Manufacturing Plant, Food & Beverage Factory, Other
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Warranty of core components
1 Year
Core Components
Engine, Bearing, Motor, Gear
Place of Origin
China
Key Selling Points
Easy to Operate
Condition
New
Application
Machinery & Hardware
Packaging Material
Plastic Film in Full Conatiner
Automatic Grade
Manual feeding
Driven Type
Manual
Voltage
220v/380v/415v/440v
Brand Name
YIKE GROUP
Product name
Thin Blade Slitter Scorer Machine



YIKE GROUP 3000MM 4/6 Manual Creaser Scorer Thin Blade scorer Machine With Electric Knives Adjust 2

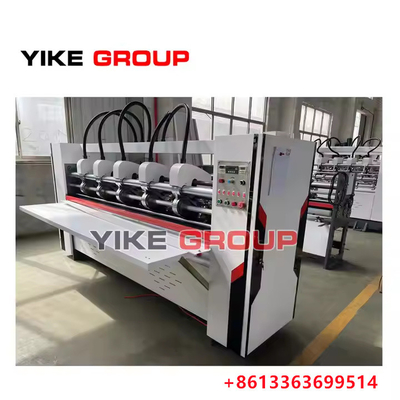

YIKE GROUP Other type Thin Blade scorer Machine



Speed 150m/min

Auto thin blade machine for TCY , FOSBER corrugated cardboard production line



YIKE GROUP 3000MM 4/6 Manual Creaser Scorer Thin Blade scorer Machine With Electric Knives Adjust 3



YIKE GROUP  Speed 200m/min Automatic Thin blade Slitter scorer machine





YIKE GROUP 3000MM 4/6 Manual Creaser Scorer Thin Blade scorer Machine With Electric Knives Adjust 4



Servo Control Computer Thin Blade Slitter Scorer Machine



YIKE GROUP 3000MM 4/6 Manual Creaser Scorer Thin Blade scorer Machine With Electric Knives Adjust 5





YIKE GROUP 3000MM 4/6 Manual Creaser Scorer Thin Blade scorer Machine With Electric Knives Adjust 6




YIKE GROUP 3000MM 4/6 Manual Creaser Scorer Thin Blade scorer Machine With Electric Knives Adjust 7

YIKE GROUP 3000MM 4/6 Manual Creaser Scorer Thin Blade scorer Machine With Electric Knives Adjust 8

YIKE GROUP 3000MM 4/6 Manual Creaser Scorer Thin Blade scorer Machine With Electric Knives Adjust 9

YIKE GROUP 3000MM 4/6 Manual Creaser Scorer Thin Blade scorer Machine With Electric Knives Adjust 10
