High Quality YIKE GROUP Max Paper Size 2300mm Corrugated Cardboardthin Blade Slitting Scoring Machine

High Quality YIKE GROUP Max Paper Size 2300mm Corrugated Cardboardthin Blade Slitting Scoring Machine
High Quality YIKE GROUP Max Paper Size 2300mm Corrugated Cardboardthin Blade Slitting Scoring Machine
High Quality YIKE GROUP Max Paper Size 2300mm Corrugated Cardboardthin Blade Slitting Scoring Machine High Quality YIKE GROUP Max Paper Size 2300mm Corrugated Cardboardthin Blade Slitting Scoring Machine High Quality YIKE GROUP Max Paper Size 2300mm Corrugated Cardboardthin Blade Slitting Scoring Machine High Quality YIKE GROUP Max Paper Size 2300mm Corrugated Cardboardthin Blade Slitting Scoring Machine High Quality YIKE GROUP Max Paper Size 2300mm Corrugated Cardboardthin Blade Slitting Scoring Machine High Quality YIKE GROUP Max Paper Size 2300mm Corrugated Cardboardthin Blade Slitting Scoring Machine High Quality YIKE GROUP Max Paper Size 2300mm Corrugated Cardboardthin Blade Slitting Scoring Machine

Large Image :  High Quality YIKE GROUP Max Paper Size 2300mm Corrugated Cardboardthin Blade Slitting Scoring Machine

Product Details:
Place of Origin: China
Brand Name: YIKE GROUP
Certification: CE, ISO
Model Number: YK-2300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD 4000
Packaging Details: Plastic Film
Delivery Time: 60 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Sets per Month
Contact Now

High Quality YIKE GROUP Max Paper Size 2300mm Corrugated Cardboardthin Blade Slitting Scoring Machine

Description
Type: Thin Blade Slitter Scorer Machine Key Selling Points: Thin Blade Slitter Scorer Cutting Creasing Machine
Application: Machinery & Hardware QTY Of Blade/scorer: 5/6/7
Keywords: Thin Blade Slitter Scorer Machine Core Components: Gearbox, Gear, Bearing, Engine, Motor, PLC
Packaging Type: Corrugated Paperboard Making After-sales Service Provided: Engineer Service Overseas
Slitting Part: High Quality Tungsten Steel Blade Suitable For: Cardboard Carton Box Factory Manufacturer

High Quality YIKE GROUP Max Paper Size 2300mm Corrugated Cardboardthin Blade

Slitting Scoring Machine



High Quality YIKE GROUP Max Paper Size 2300mm Corrugated Cardboardthin Blade Slitting Scoring Machine 0





TECHNICAL INDEX
Model
YK-1800
YK-2200
YK-2500
YK-2800
YK-3000
Max.slitting size (mm)
1800
2000
2300
2600
2800
Min .slitting size(mm)
120
120
120
120
120
Min.slitting length(mm)
260
260
260
260
260
Min.scorer width (mm)
30
30
30
30
30
Scorer height(mm)
0-12
0-12
0-12
0-12
0-12
Blade size(mm)
190*105
190*105
190*105
190*105
190*105
Blade/scorer
4/6,5/8,6/10,7/12,8/14
Machine dimension(mm)
2630*770*1350
2830*770*1350
3130*770*1350
3430*770*1350
3630*770*1350
Power (KW)
3
3
4
4
5.5



High Quality YIKE GROUP Max Paper Size 2300mm Corrugated Cardboardthin Blade Slitting Scoring Machine 1


High Quality YIKE GROUP Max Paper Size 2300mm Corrugated Cardboardthin Blade Slitting Scoring Machine 2



Structural feature

  • Delta inverter
  • Manual Adjustment Blade

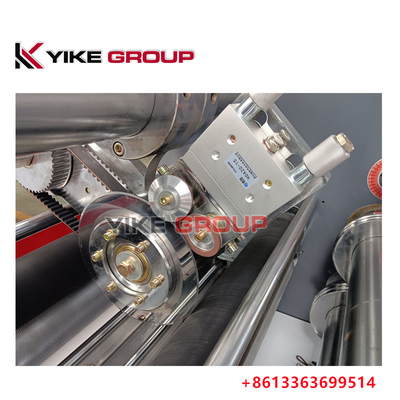

  • Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
  • Adopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard machining to 260mm.
  • 8 shafts with front-scoring feeding,back double rubber rollers for paper leading, running more steady.
  • Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
  • Grinding part: adopt manual type grinding , it could be grinding when working, improve work efficiency. Option: blade pneumatic grinding.
  • Double guide smooth shafts, operate stably; inlay PU ring seal, clean and dust-proof.

Specification



Item
Thin Blade Slitting Scorering Machine
Warranty
1 Year
Applicable Industries
Manufacturing Plant, Food & Beverage Factory, Other
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Warranty of core components
1 Year
Core Components
Engine, Bearing, Motor, Gear
Place of Origin
China
Key Selling Points
Easy to Operate
Condition
New
Application
Machinery & Hardware
Packaging Material
Plastic Film in Full Conatiner
Automatic Grade
Manual feeding
Driven Type
Manual
Voltage
220v/380v/415v/440v
Brand Name
YIKE GROUP
Product name
Thin Blade Slitter Scorer Machine



High Quality YIKE GROUP Max Paper Size 2300mm Corrugated Cardboardthin Blade Slitting Scoring Machine 3



High Quality YIKE GROUP Max Paper Size 2300mm Corrugated Cardboardthin Blade Slitting Scoring Machine 4



High Quality YIKE GROUP Max Paper Size 2300mm Corrugated Cardboardthin Blade Slitting Scoring Machine 5

YIKE GROUP Other type carton box making machine



High Quality YIKE GROUP Max Paper Size 2300mm Corrugated Cardboardthin Blade Slitting Scoring Machine 6

High Quality YIKE GROUP Max Paper Size 2300mm Corrugated Cardboardthin Blade Slitting Scoring Machine 7




High Quality YIKE GROUP Max Paper Size 2300mm Corrugated Cardboardthin Blade Slitting Scoring Machine 8

High Quality YIKE GROUP Max Paper Size 2300mm Corrugated Cardboardthin Blade Slitting Scoring Machine 9

High Quality YIKE GROUP Max Paper Size 2300mm Corrugated Cardboardthin Blade Slitting Scoring Machine 10

High Quality YIKE GROUP Max Paper Size 2300mm Corrugated Cardboardthin Blade Slitting Scoring Machine 11
