Product Details:
|
| Type: | Yk-2800 Thin Blade Slitter Scorer Machine | Key Selling Points: | Thin Blade Slitter Scorer Cutting Creasing Machine |
|---|---|---|---|
| Application: | Machinery & Hardware | QTY Of Blade/scorer: | 5/6/7 |
| Keywords: | Thin Blade Slitter Scorer Machine | Core Components: | Gearbox, Gear, Bearing, Engine, Motor, PLC |
| Packaging Type: | Corrugated Paperboard Making | After-sales Service Provided: | Engineer Service Overseas |

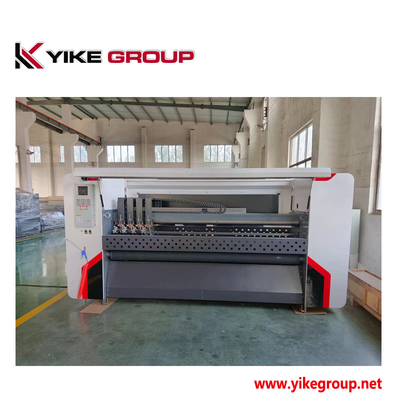

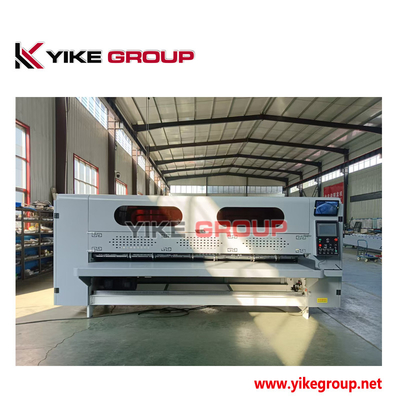

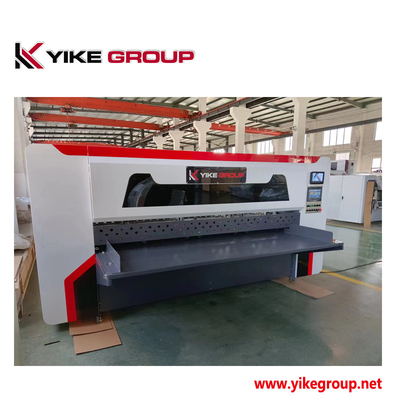

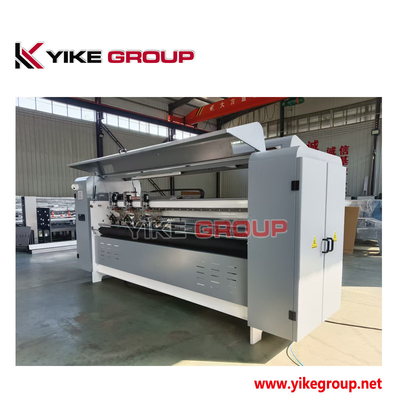

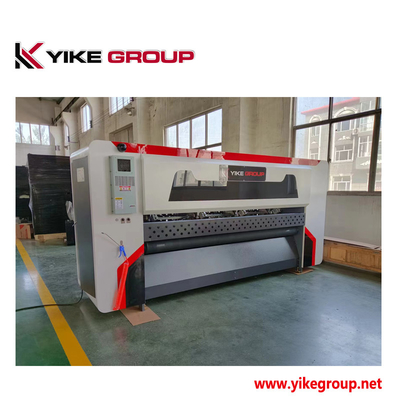

PLC control Yk-2800 Full Servo Computer Automatic Thin Blade Slitter Scorer Machine
Human machine interface —PLC control,The system for robot operating system more humanized, simple structure, easy to maintain.
1.Manual/auto feeder is available
2. Pre pressing roller,slitting blade and scorer holder are auto adjusted
3.Grinding knife is auto/manual
4.Cardboard thickness and press power are auto adjusted(customer required)
5.Jog for fine-adjusted
6.Auto counter
7.Slitting and press line precision ±0.5mm
Auto slitter scorer :
8.Human machine interface —PLC control,cutter paper thin blade change order use stand alone stepper motor control,auto change order speed 1-20S,error precision±0.5 mm.
9. Operation humanized.,no technical content,worker use operation use easy.

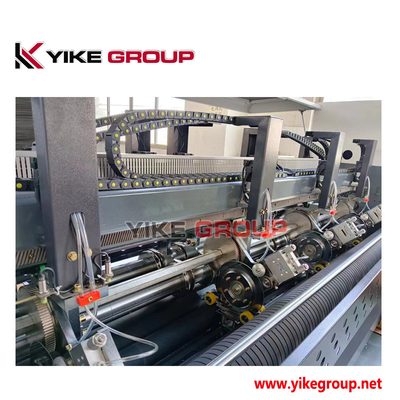

10 Slitting part:Adopt high quality tungsten steel thin blade,sharp and long work life,slice more tidy,non-pressing and non-burr.
11.The two sides of thin blade are cut separately by rubber wheel press board,surmount not scorer,separate plate,off tracking ,to prevent the bad effect of straight line.
12.This machine can memory 999 group order,don’t need stop machine can change order and manual change order.
13.QR code change orders
TECHNICAL INDEX
| Model | YK-3000 | YK-2800 |
|
No.s of slitting scoring
|
4/6, 5/8(Knife/scorer) | |
|
Max.production speed
|
180m/min | 180m/min |
|
Max.feeding width
|
一刀与二刀最大分切Max slitting between one and two knives 2500mm |
一刀与二刀最大分切Max slitting between one and two knives 2300mm |
|
Max.slitting width
|
2850mm | 2650mm |
|
Min.slitting width
|
180mm | 180mm |
|
Min.feeding length
|
200mm | 200mm |
|
Min.scoring distance
|
35*135mm | 35*135mm |
|
Gap adjustment
|
Manual/electric 手动/电动 |
Manual/electric 手动/电动 |
|
Main motor power
|
5.5-6KW变频 | |
|
Dimension (l*w*h)
|
4200*1600*1800mm | 3800*1600*1800mm |
|
Overall weight
|
2880kg | 2580kg |
