Product Details:
|
| Type: | Thin Blade Slitter Scorer Machine | Function: | 3/5/7 Ply Corrugated Cardboard Production Line |
|---|---|---|---|
| Key Selling Points: | Thin Blade Slitter Scorer Cutting Creasing Machine | Scorer Height（mm）: | 0-12 |
| QTY Of Blade/scorer: | 5/6/7 | Keywords: | Thin Blade Slitter Scorer Machine |
| Condition: | New Slitter Machine | Application: | Machinery & Hardware |
| Speed: | 150m/min | Packaging Type: | Corrugated Paperboard Making |

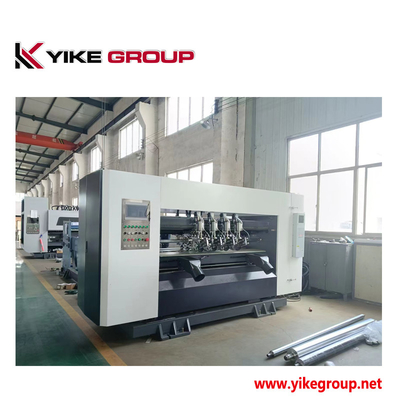

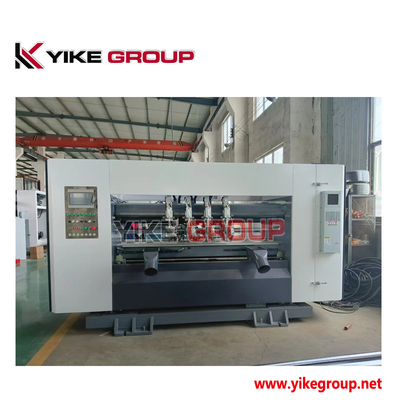

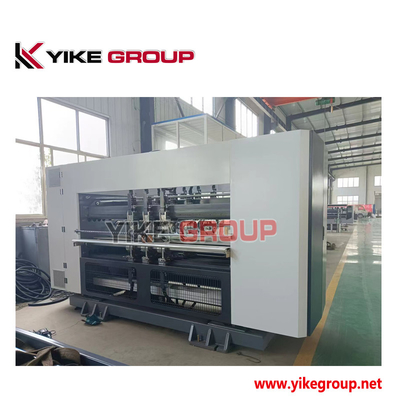

Yk-1800 Speed 150 M/Min Thin Blade Slitter Scorer Machine From YIKE GROUP
Product overview:As an important equipment of corrugated cadres,Complete the high quality of creasing and precise cutting.
Adopt lifting type Implementation work height adjusted and the orders can be changed quickly with two machines.
|
Model
|
YK-1800 | YK-2200 |
| Max slitting size(mm) |
1850
|
2250 |
| Min slitting size(mm) |
130
|
|
| Min scorer width(mm) |
100
|
|
| Scorer height(mm) |
0-12
|
|
| Blade size(mm) |
260*158
|
|
|
Order change
|
20-30s | |
|
Machine dimension
|
2830*1260*2000(mm) | 3130*1260*2000(mm) |
|
Power
|
12kw | 15kw |
Function and characteristic:

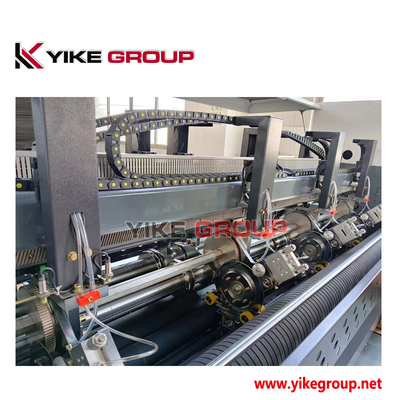

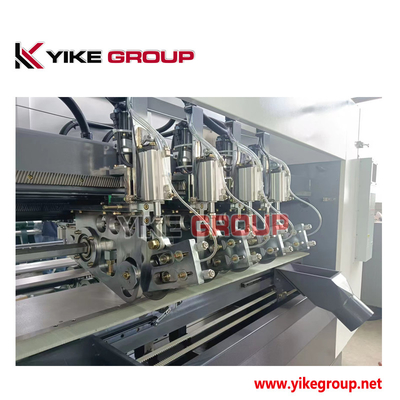

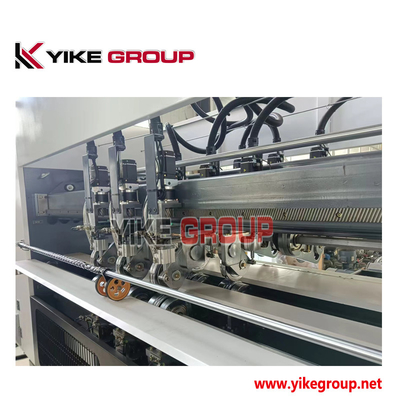

The space between slitting blades is auto adjusted,automatic locking,improve work efficiency.
Blade auto adjusted type adopt auto locking,double smooth shaft guide way,sturdy and durable
Using the synchronous belt transmission,low noise.
MCGS colorful touch screen,simple operation.
Adopt computer control automatic or manual grinding.
The control system is composed of high performance and double frequency converter,energy saving,stable and reliable.
Keep the synchronous speed with the production line automatically.
Patent type passive grinding,compact structure,can work while sharpening,improve work efficiency.
The space between slitting blades is electrically adjusted,automatic locking,improved working efficiency.
Yk-1800 Speed 150 M/Min Thin Blade Slitter Scorer Machine Use for corrugated cardboard production line
