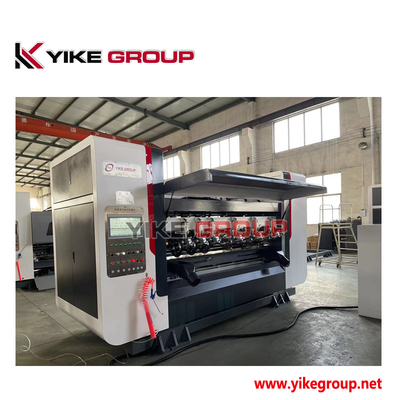

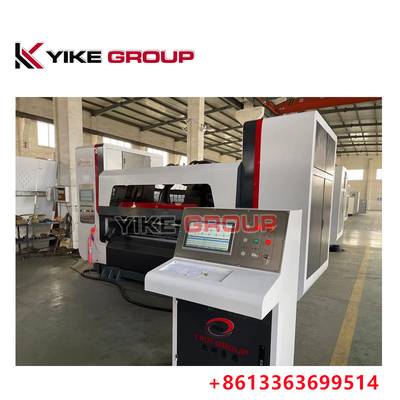

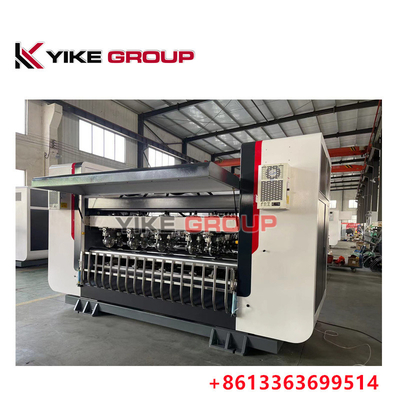

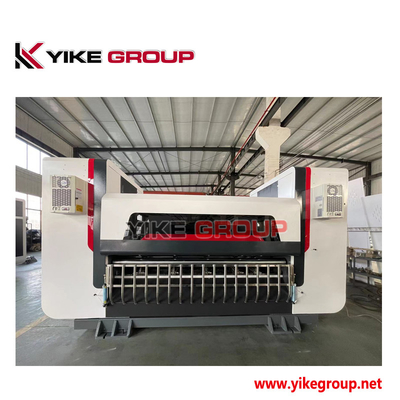

Yk-1800ENC Full Automatic Corrugation Thin Blade Slitting Scoring Machine From YIKE GROUP

Large Image : Yk-1800ENC Full Automatic Corrugation Thin Blade Slitting Scoring Machine From YIKE GROUP

Product Details:

Place of Origin:	China
Brand Name:	YIKE GROUP
Certification:	CE, ISO
Model Number:	YK-2000

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD80000
Packaging Details:	Plastic Film
Delivery Time:	60 days after deposit
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 Sets per Month

Contact Now

Yk-1800ENC Full Automatic Corrugation Thin Blade Slitting Scoring Machine From YIKE GROUP

Description

Name:	C Servo Type Slitter Scorer	Voltage:	220V/380V,Customer's Demand
Type:	Thin Blade Slitter Scorer	Order Change:	1S
Min.slitting:	135mm	Application:	Machinery & Hardware
Precision:	±0.5mm	Warranty:	1 Year And Long Life Technical Support
Function:	Corrugated Cardboard Production Line	Keywords:	Thin Blade Slitter Scorer Machine
Condition:	New Slitter Machine

Yk-1800 ENC Full Automatic Corrugation Thin Blade Slitting Scoring Machine From YIKE GROUP

Yk-1800ENC Full Automatic Corrugation Thin Blade Slitting Scoring Machine From YIKE GROUP 0

Technical Specifications of Servo Type Slitter Scorer Machihne

width	1800mm		2200mm	2500mm
speed	150,200,250m/min
Blade&scorer	5&8,6&10,7&12
Order change	1s
precision	±0.5mm
Min.slitting	135mm
Min.scorer	0mm
Correction range	200mm
power	25kw	30kw		35kw
machine size	390018002450 (mm)	430018002450(mm)		450018002450(mm)

Function and Characteristic:

 High quality touch screen and PLC equipped composing the CNC system,connect

to the production line.

 High quality beeline rail guarantees the precision.

 memory of orders,realize non-stop automatic or manual change.

 Speed synchronizes with board speed.Standard communication interface,easy to

link with management system.

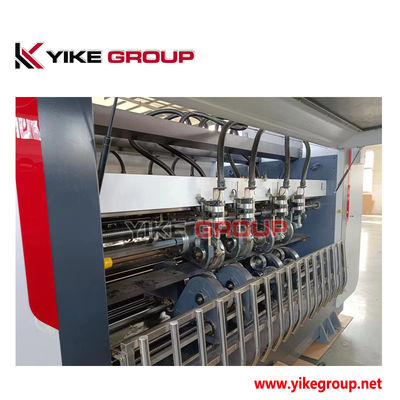

 Alloyed steel thin-blades,sharp and long life of over 8 million meters,auto

sharpening

 The knife for computer control automatic or manual knife sharpening,edge

trimming knife,improve production efficiency.

 Three types of scorers:convex to concave,convex to flat.

 Two rows of scorers,realizes minimum scorer spacing is 0mm.

 Computer control score-depth,high quality scorer,more steady .

 Using the synchronous belt transmission ,low noise,prolong using time.

 Standard motorized body left-right rectification system 200mm

Yk-1800ENC Full Automatic Corrugation Thin Blade Slitting Scoring Machine From YIKE GROUP 3

Yk-1800ENC Full Automatic Corrugation Thin Blade Slitting Scoring Machine From YIKE GROUP 4

Other type corrugated carton box making machine from YIKE GROUP

CHINA YIKE GROUP CO.,LTD

If any need,pls contact us at any time

whatsapp:008613363699514

Email:Anna@yikegroup.net

Anna Tang

Yk-1800ENC Full Automatic Corrugation Thin Blade Slitting Scoring Machine From YIKE GROUP 5

Yk-1800ENC Full Automatic Corrugation Thin Blade Slitting Scoring Machine From YIKE GROUP 6

Yk-1800ENC Full Automatic Corrugation Thin Blade Slitting Scoring Machine From YIKE GROUP 7

Yk-1800ENC Full Automatic Corrugation Thin Blade Slitting Scoring Machine From YIKE GROUP 8

Yk-1800ENC Full Automatic Corrugation Thin Blade Slitting Scoring Machine From YIKE GROUP 9

Yk-1800ENC Full Automatic Corrugation Thin Blade Slitting Scoring Machine From YIKE GROUP 10
