Product Details:
|
| Type: | Automatic Thin Blade Slitter Scorer Machine | Function: | 3/5/7 Ply Corrugated Cardboard Production Line |
|---|---|---|---|
| Key Selling Points: | Thin Blade Slitter Scorer Cutting Creasing Machine | Depth Of Creasing: | 120mm |
| QTY Of Blade/scorer: | 5/6/7 | Keywords: | Thin Blade Slitter Scorer Machine |
| Condition: | New Slitter Machine | Application: | Machinery & Hardware |
| Speed: | 200m/min | Packaging Type: | Corrugated Paperboard Making |

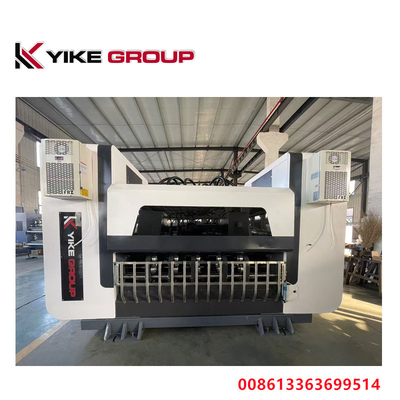

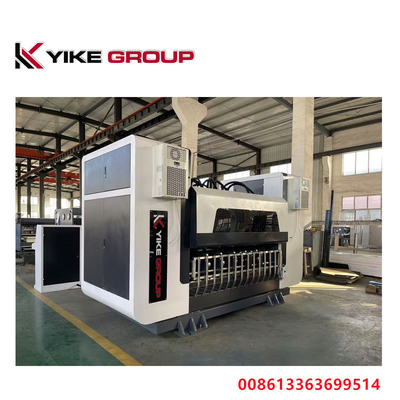

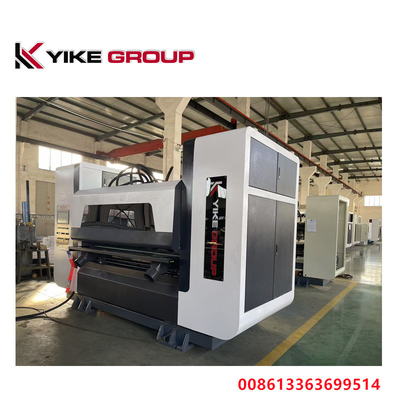

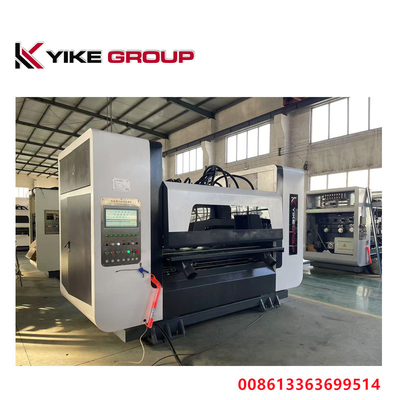

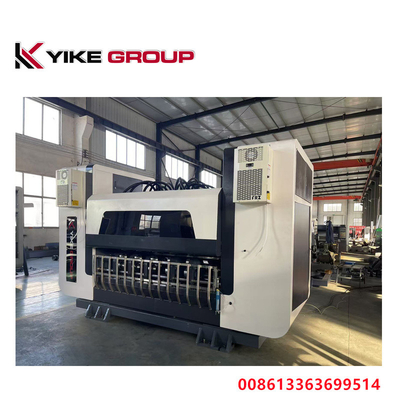

Speed 200m/min 2500MM YIKE GROUP BNC Type Auto Type Thin Blade Slitter Scorer online For Corrugated Cardboard Production Line
3.Multi-screw design, economical and durable.
| Model | 1800 | 2200 | 2500 |
| Efficient width | 1850mm | 2250mm | 2550 |
| Min. slitting width | 135mm | ||
| Min. creasing width | 0mm | ||
| Blade model | Φ260*158*1.3mm | ||
| Creasing roller model | (up)φ238mm下(down)φ130mm | ||
|
Changing order time (servo type) |
1-4s | ||
| Correction range | ±100mm | ||
| Precision | ±0.5mm | ||
| QTY of blade/scorer | 5/8 | 6/10 | 7/12 |
| Power | 16kw | 20kw | 21kw |
| Boundary dimension | 3840*1720*2450mm | 4240*1720*2450mm | 4540*1720*2450mm |
| Depth of creasing | 12mm | ||
| Design speed | 200m/min | ||
1.The upper and lower computer system consists of high-quality industrial computers and high-performance programmable controllers.
2.High precision linear guide guide guide is used to grind ball screw transmission pair to ensure the positioning accuracy of the slitting line.
3.It can store multiple orders, and can change orders automatically or manually without stopping.
4.Automatically track the speed of production line to ensure synchronization with it. It can be connected with production management system and has strong compatibility.
5.Change orders quickly, when two machines are used together, it can be realized to change orders without stopping.
6.With thin tungsten steel blade, the blade is sharp and has a service life of more than 8 million meters.
7.Grinding knife is computer controlled automatic or manual grinding knife, passive grinding knife, lightweight structure, easy maintenance.
8.Three types of wire pressing are selected: convex-to-concave (three-layer plate), convex-to-concave (five-layer plate), convex-to-flat, and three types of wire pressing electric conversion.

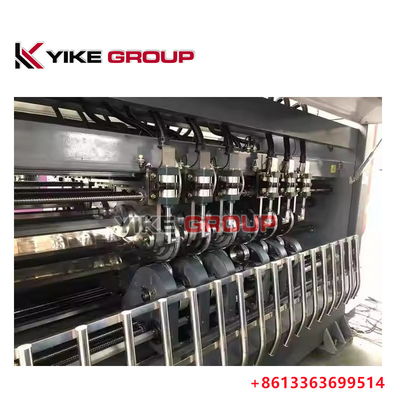

9.The front and back two rows of pressure wire wheel are arranged to realize zero scorer.
10.Line pressing depth has automatic control, good line shape, easy to shape.
12.The machine moves left and right for correct an error.
