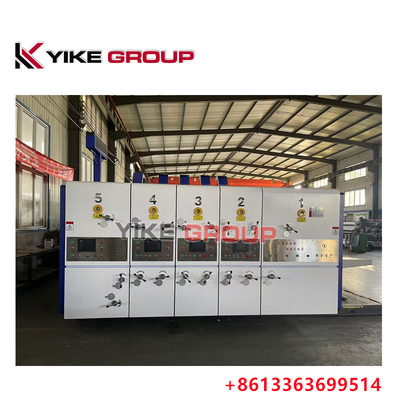

YK-1426 Lead Edge Flexo Printer Slotter Die Cutter Machine for carton box making

YK-1426 Lead Edge Flexo  Printer Slotter Die Cutter Machine for carton box making
YK-1426 Lead Edge Flexo  Printer Slotter Die Cutter Machine for carton box making YK-1426 Lead Edge Flexo  Printer Slotter Die Cutter Machine for carton box making YK-1426 Lead Edge Flexo  Printer Slotter Die Cutter Machine for carton box making YK-1426 Lead Edge Flexo  Printer Slotter Die Cutter Machine for carton box making YK-1426 Lead Edge Flexo  Printer Slotter Die Cutter Machine for carton box making YK-1426 Lead Edge Flexo  Printer Slotter Die Cutter Machine for carton box making

Large Image :  YK-1426 Lead Edge Flexo Printer Slotter Die Cutter Machine for carton box making

Product Details:
Place of Origin: China
Brand Name: YIKE GROUP
Certification: ISO CE
Model Number: YK-1426
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plastic Packaging
Delivery Time: 60 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000set/year

YK-1426 Lead Edge Flexo Printer Slotter Die Cutter Machine for carton box making

Description
Name: Flexo Printer Slotter Die-Cutter Stacker Carton Box Making Machine Speed: 150pcs/min
Color: Any Color Certification: CE ISO SGS
Condition: New Packaging Type: Cartons



YK-1426 Lead Edge Flexo Printer Slotter Die Cutter Machine For Carton Box Making





General Features:

Quality: Due to high requirements for mechanical quality, raw materials selection, processing, assembly of industrial control over the industry standard, using the new design, quality management system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment.



Efficiency: Patent type feeding width automatic adjustment device and printing locking device with screw. With 4.0 engineering design of industrialization, both hardware and software are charged with the author’s high efficiency tools.



Service: Based on the industry’s first use of PDM design file management system, complete technical support files, regardless of the long time can still be credible commitment to customers, continuous and efficient after-service for the customer support. 24 hours service with 12 engineers .





YK-1426 Lead Edge Flexo  Printer Slotter Die Cutter Machine for carton box making 0

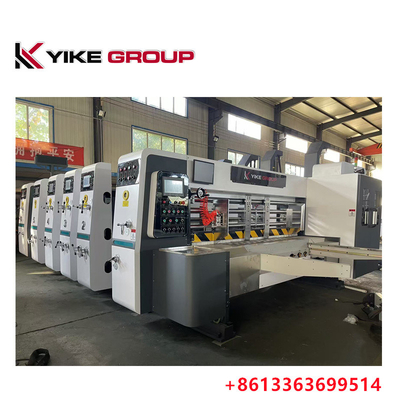

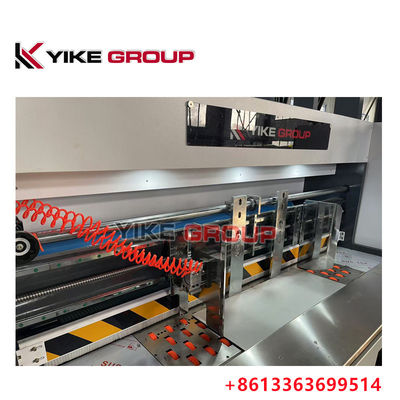

        Lead-edge Feeding System



1.Lead-edge suction feeding system, easy operation, high accuracy,(adopts lead feeder system).

2.High pressure centrifugal fans, accordingto the cardboard warping degree of frequency control pressure, to m ensure warp cardboard or thin cardboard high-speed accurate transmission.

3. Left and right side baffle position electrically adjustable, screw-driven.and can remember by computer.

4. Front baffle adjust the position of the upper and lower intervals synchronization by manual.

5. Skip-feeding devices, could select skip-feeding according to needs. To ensure that large-scale cardboard can also be processed.

6. Install 7” touch screen, could automatically display the production quantity, production speed, and set the production quantity and every operating.

7. Slotting part is equipped with the interlock switch, to achieve the emergency stop, stop feeding or feeding.



Dust-removal System



 Adopt brush cleaning device, equipped with strong Negative pressure suction fan, clearing the dust, paper scrap or other waste, to improve printing quality.



       Feeding Roller: double Feeding Roller



1. Upper feeding roll adopts outer diameter φ165mm rubber roller, elastic buffer wear rubber (inside soft, outside hard), dynamic balance correction, to ensure smooth and accurate feeding.

2. Lower feeding roller adopts embossed rollers, hard chrome-plated, wear and smooth.

3. According to cardboard thickness, adopt worm gear box gap tuning, with locking device. Adjustment range 0-12mm



YK-1426 Lead Edge Flexo  Printer Slotter Die Cutter Machine for carton box making 1

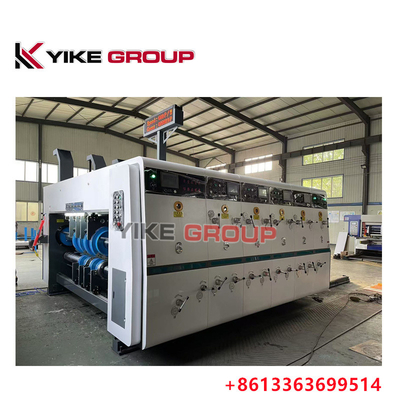

  • Printer Unit

               Printing Roller

1.With printing plate

2. High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running

3. Roller horizontal direction and circumferential direction with datum line, convenient for align plate

4. Fixed coil axis, suitable for standard hanging slats, realize rapid change plate

5. Electric 360° adjust printing roller, automatic digital display adjustment, remember store digital.

6. Installed with foot switch to control plate roller reversing, convenient change plate.

7.Auto-zero function,order memory.

8. Printing roller plate-change and fix-plate function.

9.Printing roll axial is adjusted left and right by manual,maximum movement left and right 10mm,auto-zero instruction.



             Anilox Roller

      Anilox roller, brand HAILI



            Rubber Roller

    1.Rubber roller adopts Guangdong Jingyang.

    2. Overrunning clutch and automatic idling device, to prevent the ink dried

    3. Rubber roller drum type middle part higher, to ensure ink quality

    4. Rapid spaced spinner self-locking device, ensures uniform ink

    5.Ink distributing roller independent drive mechanism, ensure ink quality



    Feeding Roller

   1. Feeding roller four wheels feeding

   2. Feeding roller gear adopts no-side-gap regulating mechanism, can adjust the interval of 12mm

   3. Hand adjustable rapid clearance adjustment self-locking device, fast, reliable.



         Ink System

  1. Pneumatic diaphragm pump, simple operation, convenient maintenance, supply stability

  2.Circulating pneumatic ink

  3.Screen for filtering impurities, guarantee printing quality



         Phase Adjust System

 1.Planetary gear structure

 2. Digital computer 360 ° adjustment, both running and stopping state conditions

 3. Printing phase adjustment of PLC computer display adjustment

 4. After units separate, automatic reset system (eraser memory)





YK-1426 Lead Edge Flexo  Printer Slotter Die Cutter Machine for carton box making 2

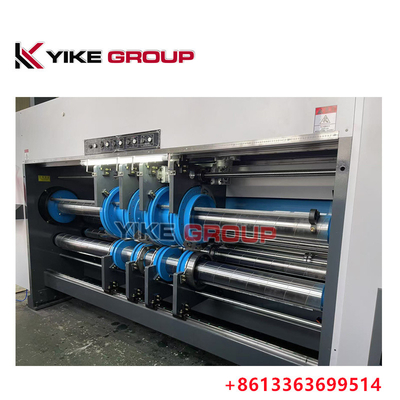

  • Slotter Unit
  • Single-axle double-knife slotter, use Internal tooth structure adjustment the height of box, So that oil does not easily contaminated cartons
  • The first pressure line round, after pre-loading cardboard not easily crush
  • The above press round Urethane appearance package, will not damage the cardboard
  • The slotter knife stock use traverse mechanism, screw with linear guide, to move more flexible and precise
  • Slotting phase and box height, computer and electric digital control
  • Preload, creasing gap adjustment adopt computer and electric digital control
  • The slotter knife stock gap adjustment adopt self-locking structure
  • There's the elastic corner-cutting knife. Can cut three, five, cardboard without adjusted.
  • Preload wheel, creas wheel, slot knife traverse position computer and electric digital control.
  • The slotter knife adopt Anti-knife manner.
  • Computer automatic arrange knife, can stockpile 999 memories.



YK-1426 Lead Edge Flexo  Printer Slotter Die Cutter Machine for carton box making 3



YK-1426 Lead Edge Flexo  Printer Slotter Die Cutter Machine for carton box making 4

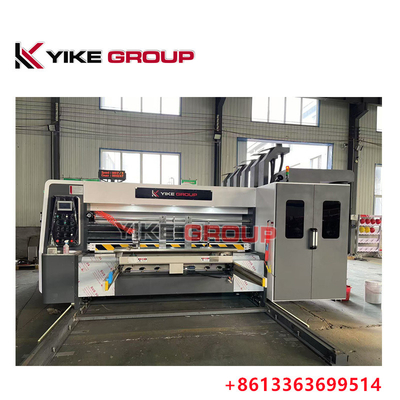

  • Die-Cutting Unit

1. Rubber roller mechanical spiral commutation 40mm move about horizontal structure

2. Die-cutter phase, computer and electric digital control

3.Horizontal phase, computer and electric digital control, range ±5mm

4. Rubber roller and die roller gap use computer and electric digital control

5 The rubber roller compensated by motor-driven,control the speed of the rubber roller, range ±3mm

6. Rubber roller hsiuping cutting structure, keep rubber surface roughness

7.Stripping the belt longitudinal output, to easy clean waste paper.



YK-1426 Lead Edge Flexo  Printer Slotter Die Cutter Machine for carton box making 5







YIKE  GROUO Printer Slotter Die Cutter Machine  shipping







YK-1426 Lead Edge Flexo  Printer Slotter Die Cutter Machine for carton box making 6



YK-1426 Lead Edge Flexo  Printer Slotter Die Cutter Machine for carton box making 7
